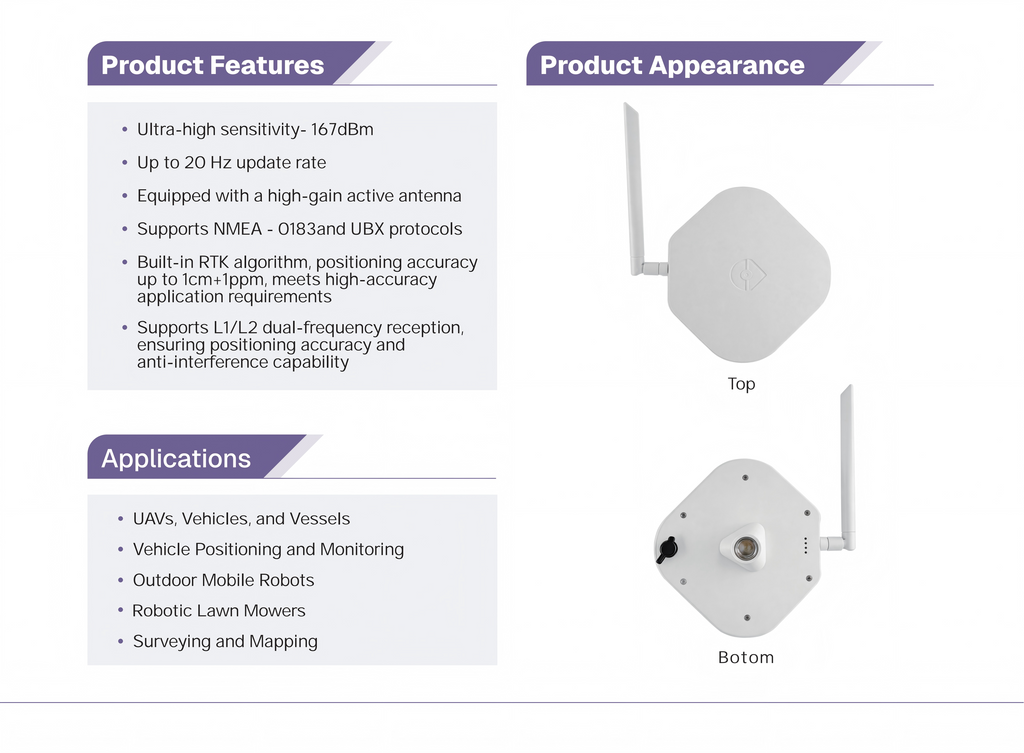

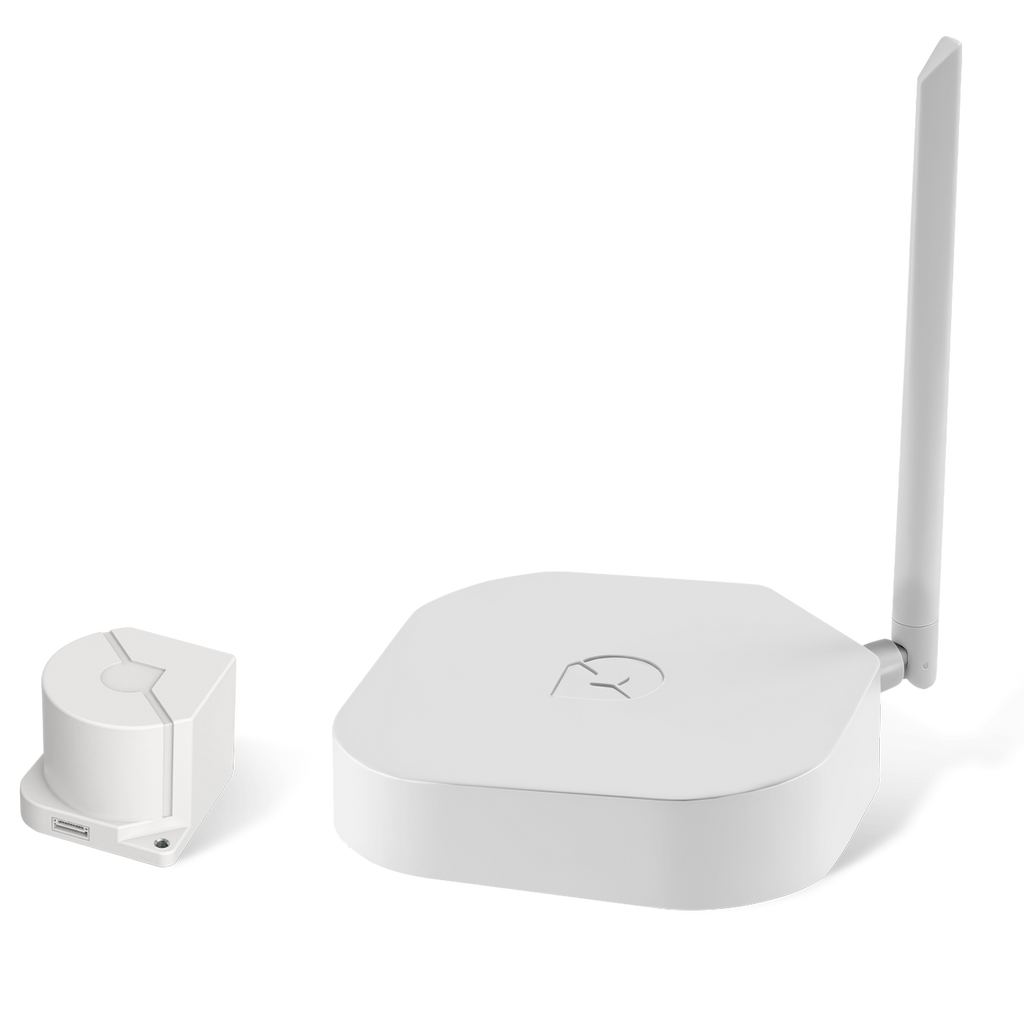

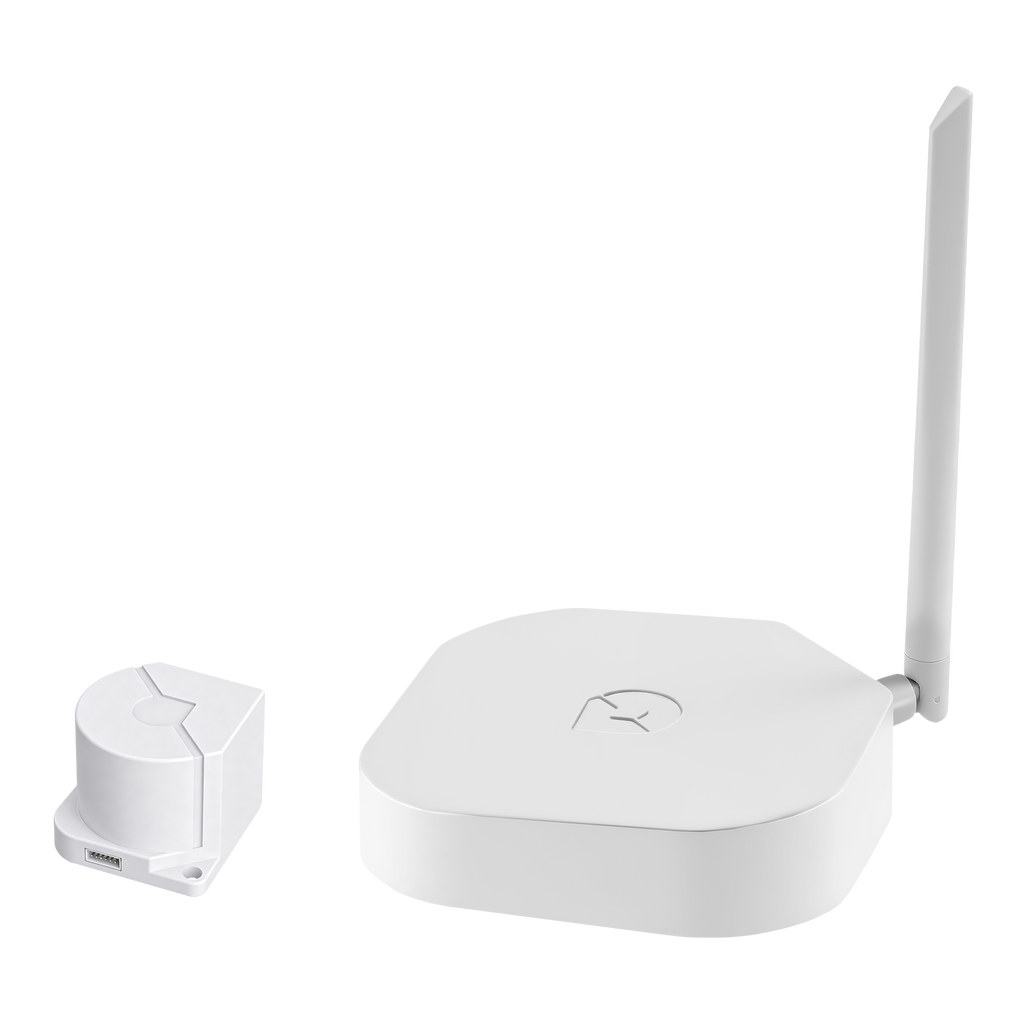

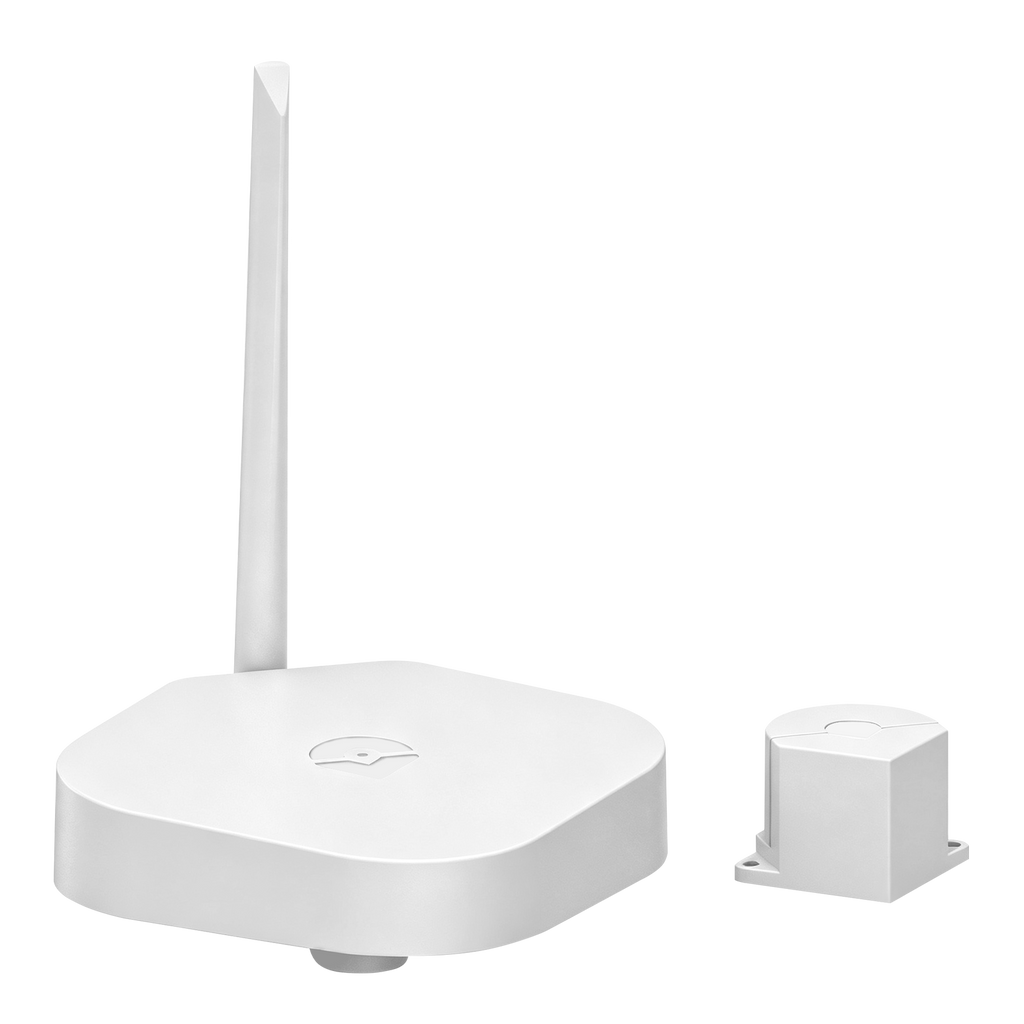

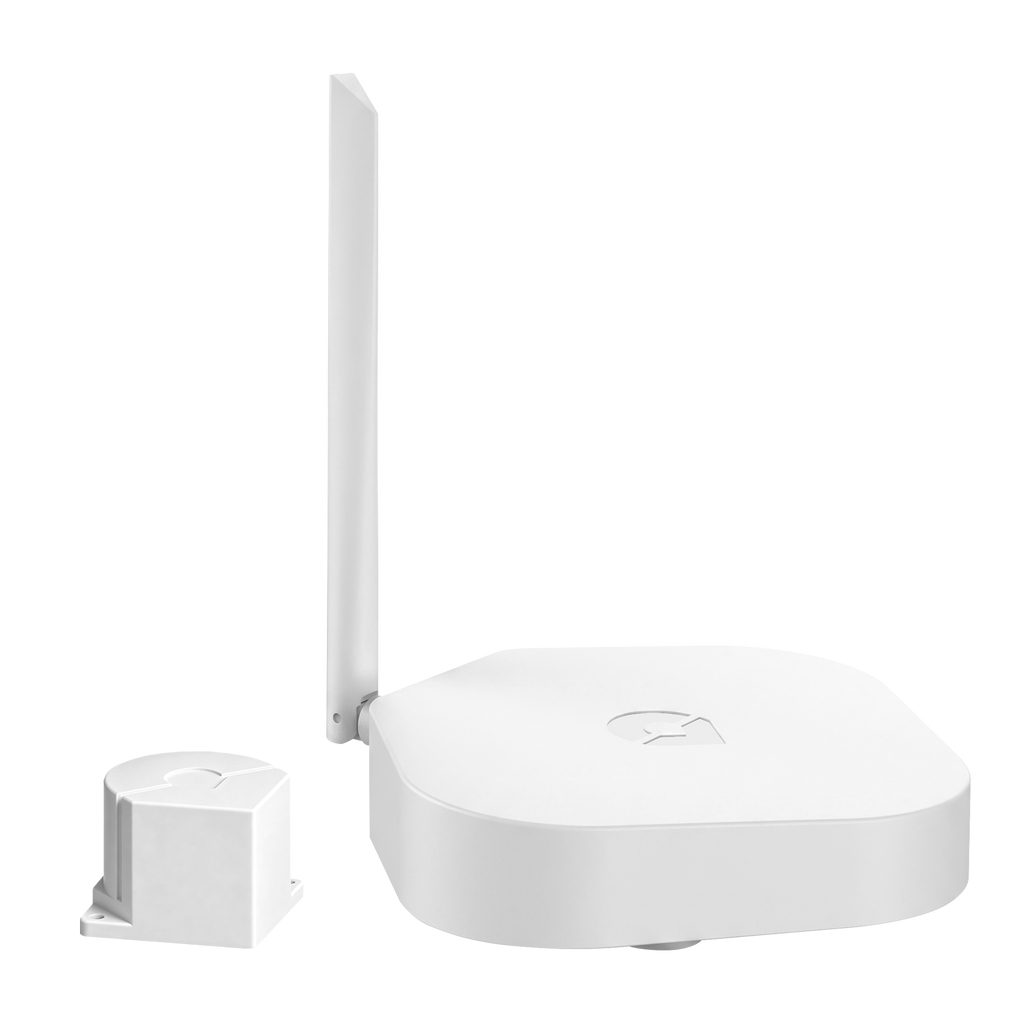

RTK-13-Kit (Base station + mobile station)

The RTK-13 Kit is a long-range RTK positioning system — base station plus compact rover with a built-in sub-GHz correction link, holding 1 cm + 1 ppm accuracy up to roughly 10 km from the base.

- RTK accuracy: 1 cm + 1 ppm (CEP50, open sky)
- Integrated radio link: 902–928 / 863–870 MHz, ~10 km range
- 20 Hz dual-frequency reception, −167 dBm sensitivity
- On-board QMC5883 magnetometer on the rover
- USB-C powered base station

Key specs:
RTK accuracy: 1 cm + 1 ppm (CEP50, open sky)
Radio link: 902–928 MHz / 863–870 MHz (region-dependent)

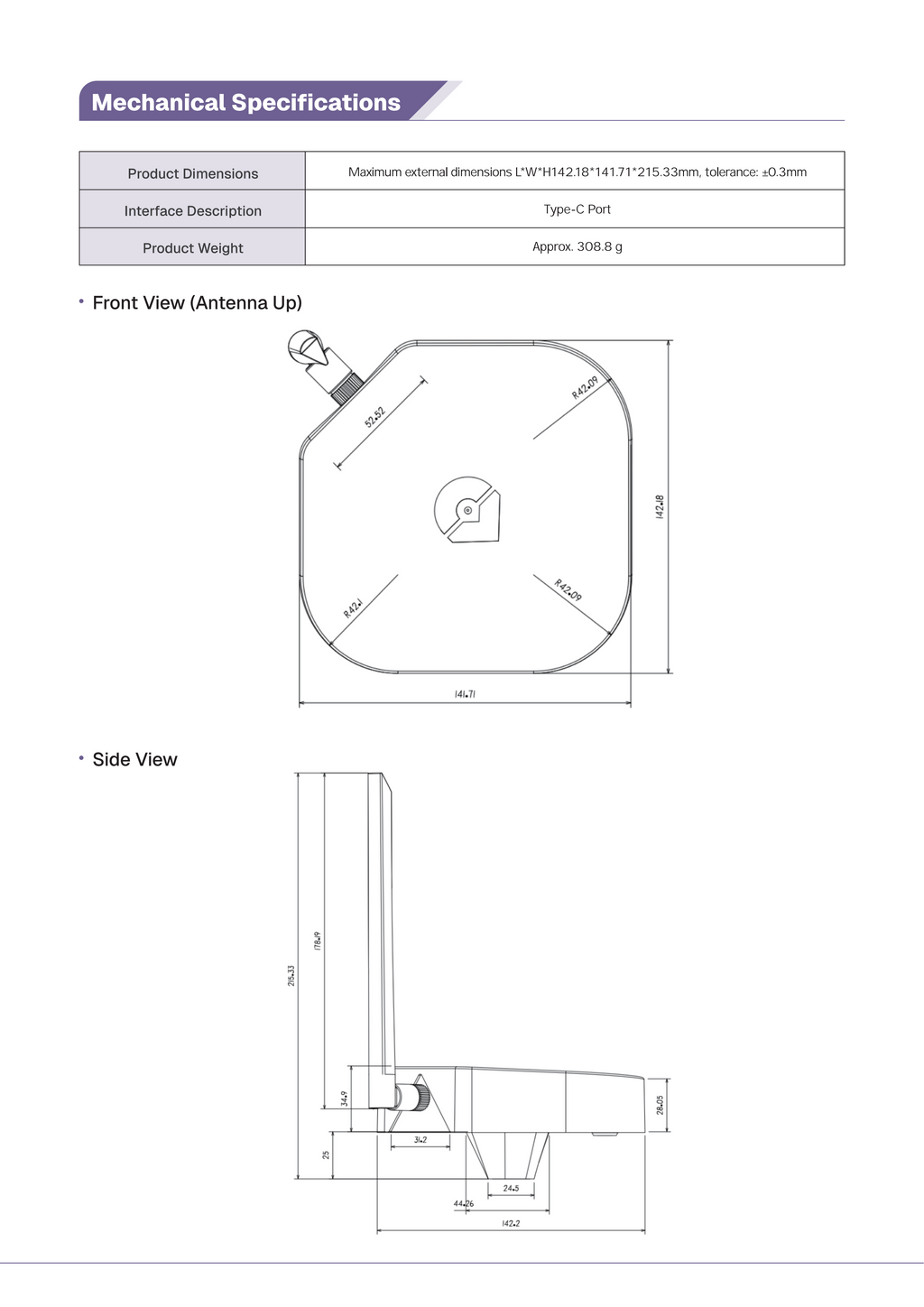

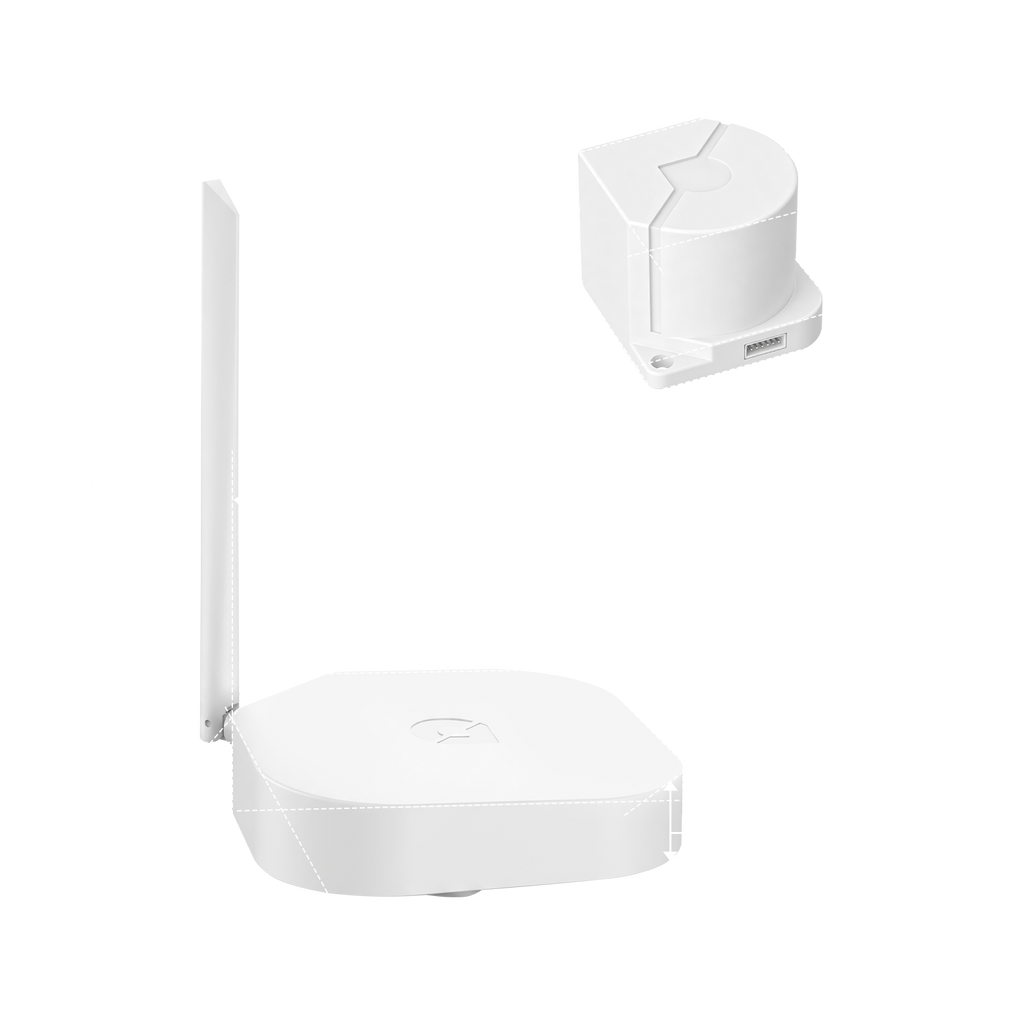

Base (RTK-13-B): 142 × 142 × 215 mm · ≈309 g · startup ≤1.7 A · steady ≤260 mA
Rover (RTK-13-Rs): 48 × 48 × 39 mm · ≈31 g · ≤150 mA · 890–915 MHz
Magnetometer: QMC5883 (rover)
Operating: −40°C to +85°C

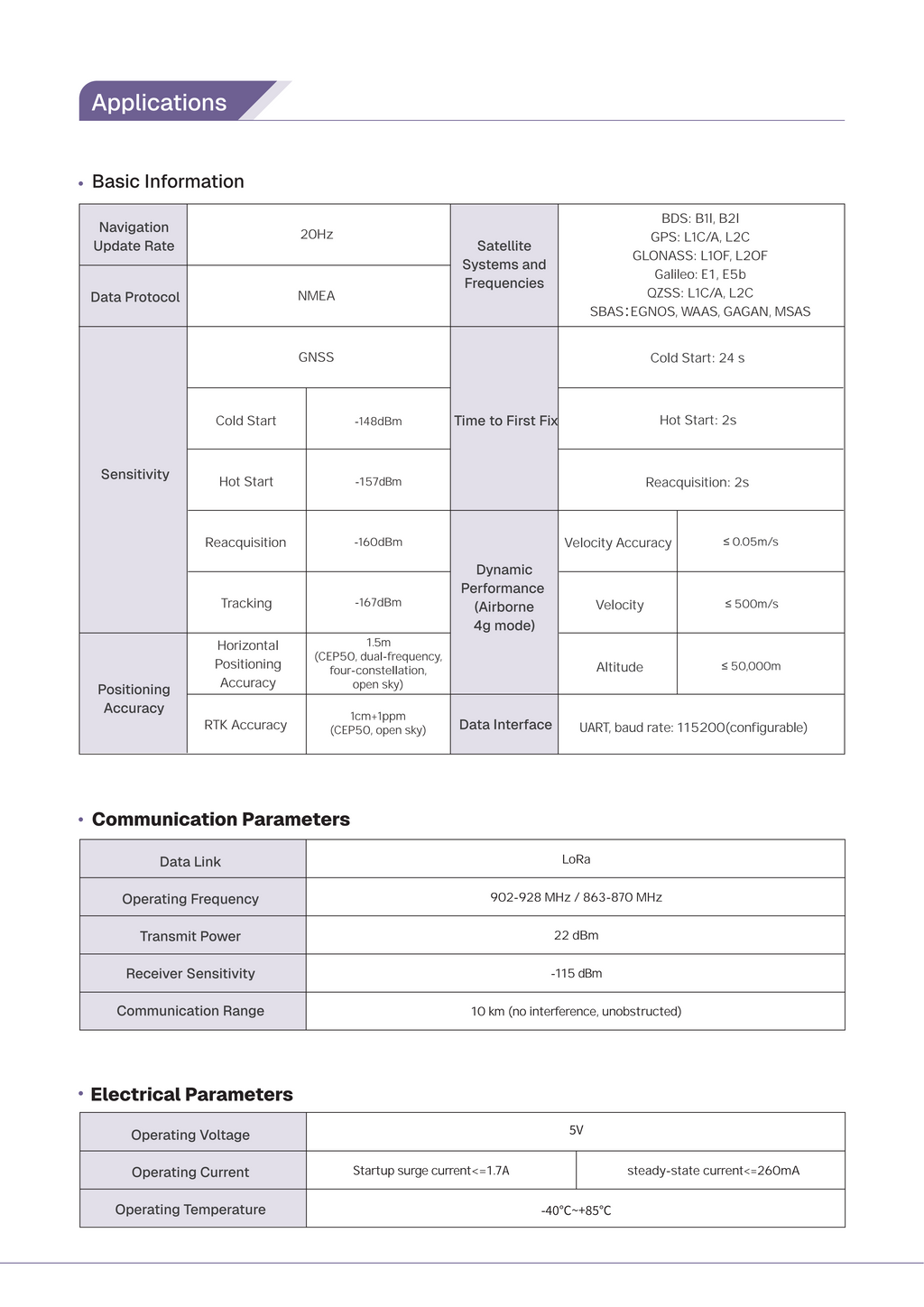

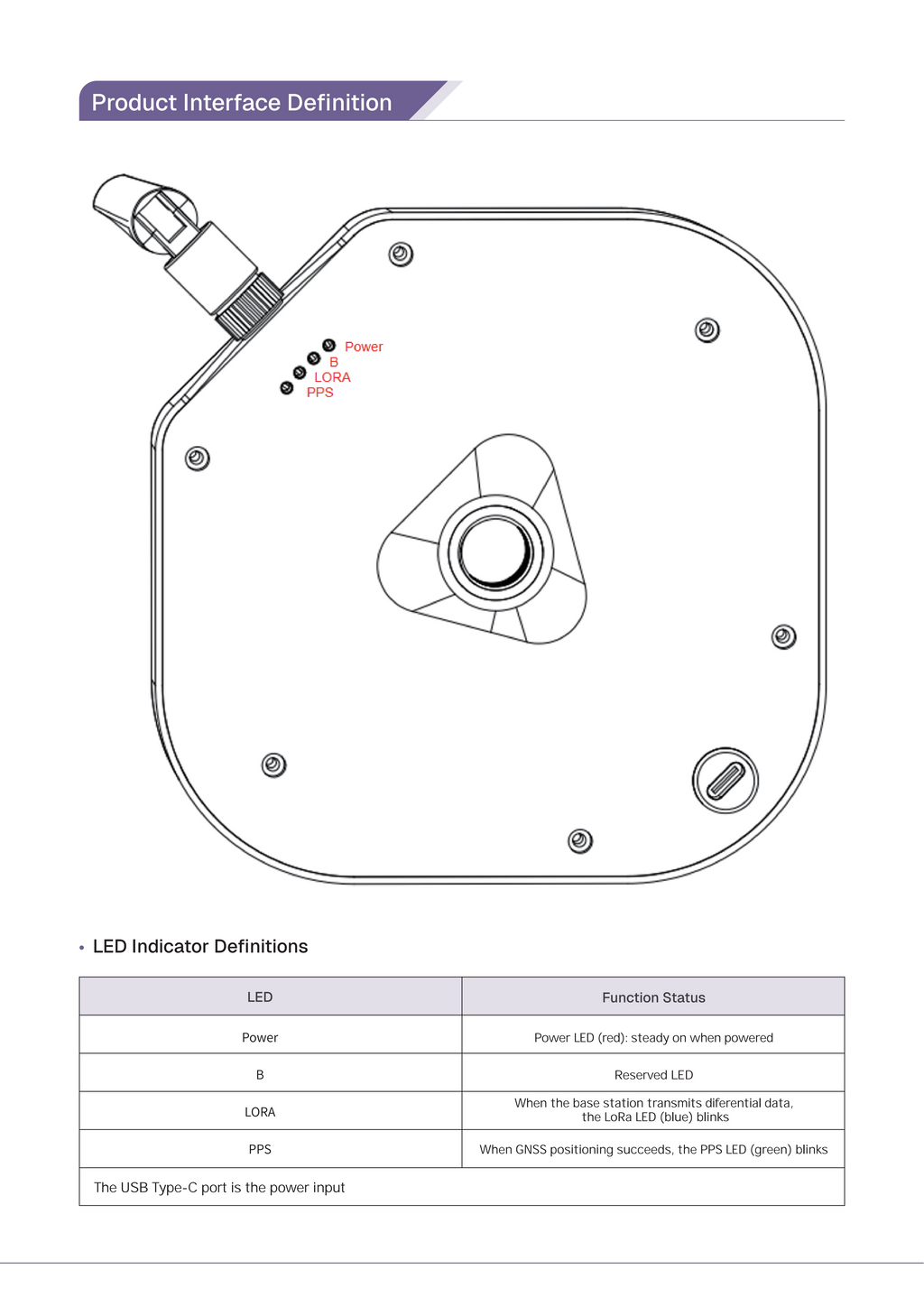

Full pinout, wiring, and electrical data: see the spec sheet on this page.
