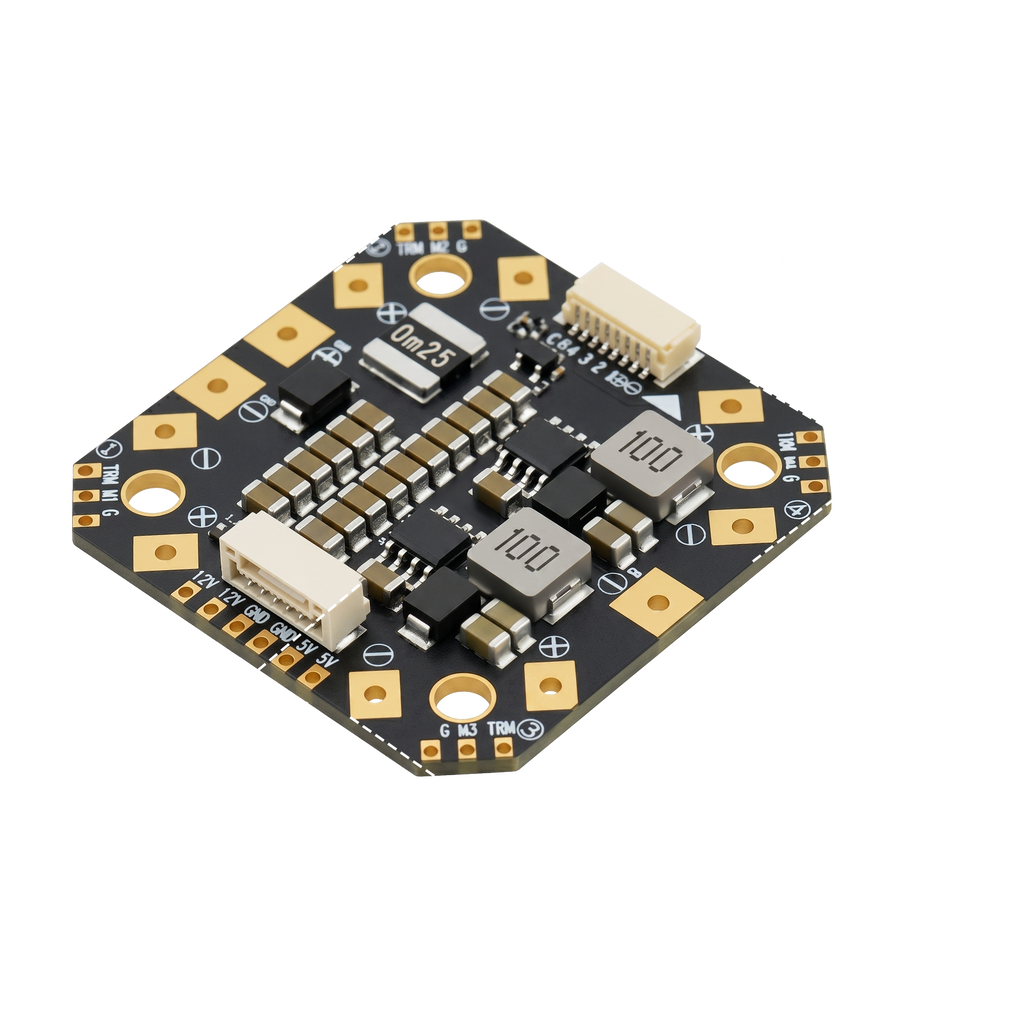

4IN1-ESC-POWER

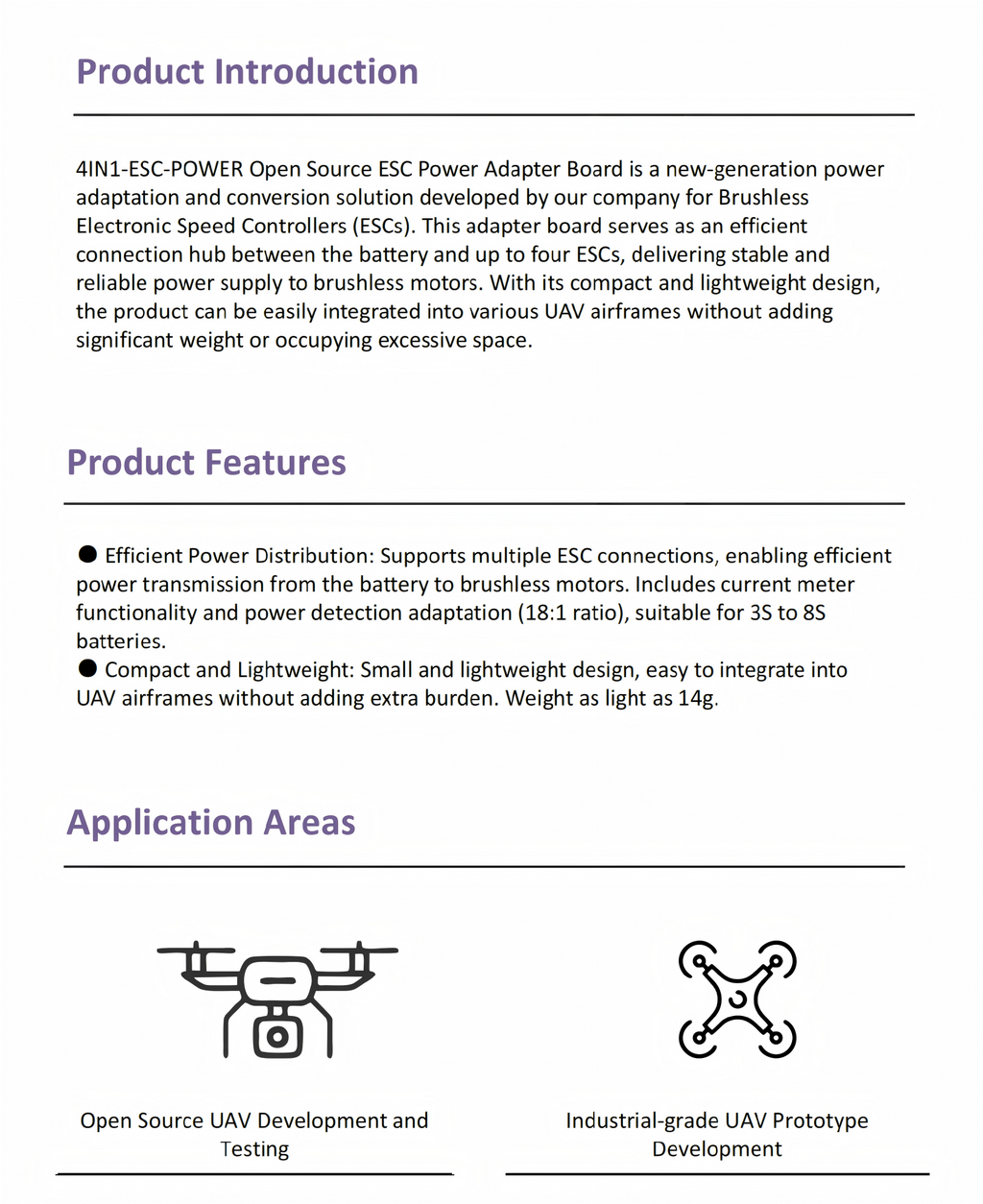

The CORVON 4IN1-ESC-POWER is an open-source power adapter board that sits between the battery and up to four single ESCs — clean power distribution, battery sensing, and an FC-ready current feed on a standard 30.5 × 30.5 mount.

- 3S–8S input (13.2–35.4 V)
- Regulated outputs: 5 V 3 A + 12 V 2 A
- Battery voltage (18:1 divider) and current-sense feedback to the FC
- Per-channel power gate signals (M1–M4)
- 30.5 × 30.5 mm M4 mounting, 14 g

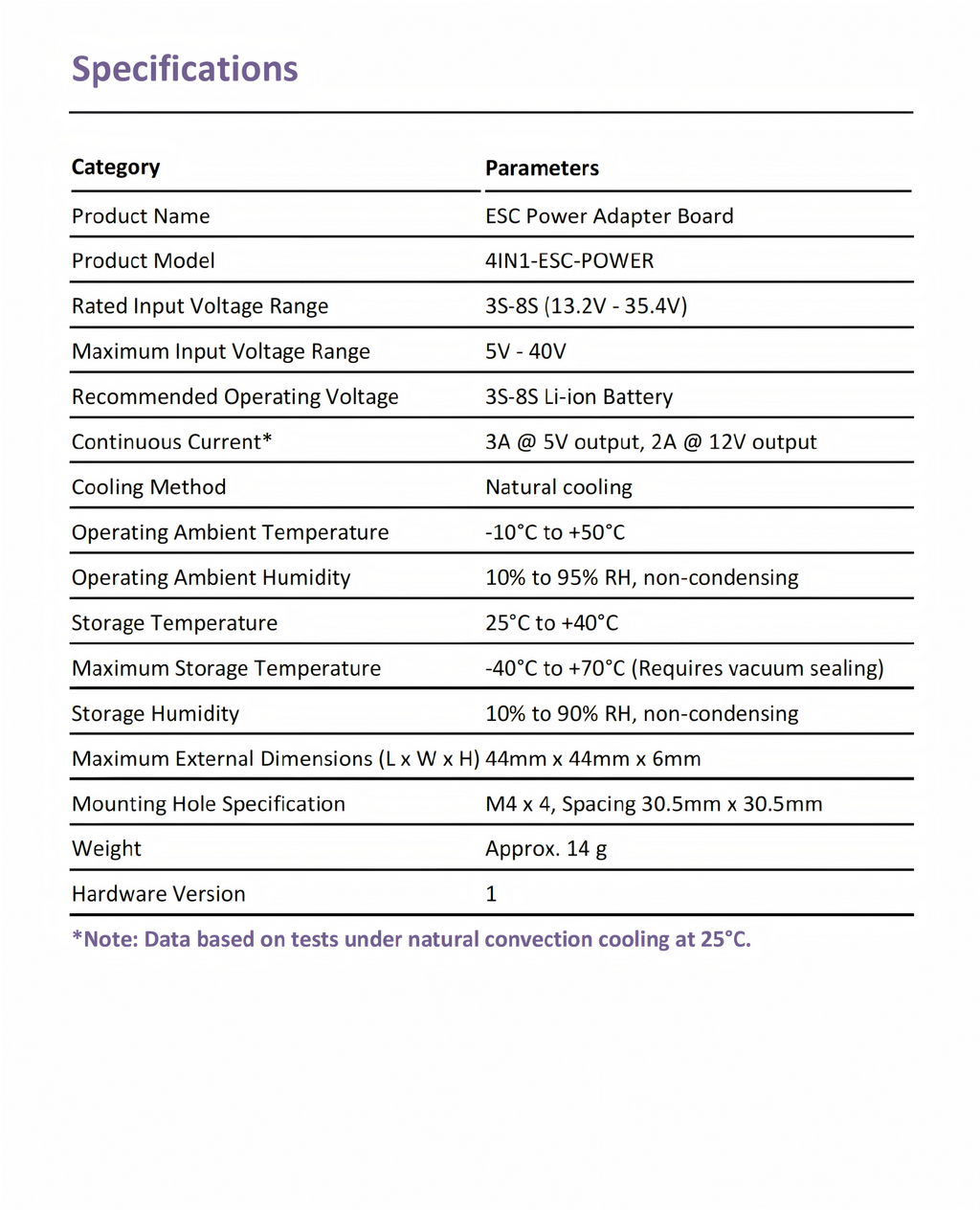

Key specs:
Input: 3S–8S · 13.2–35.4 V
Outputs: 5 V @ 3 A · 12 V @ 2 A
Current sense: 18:1 ratio

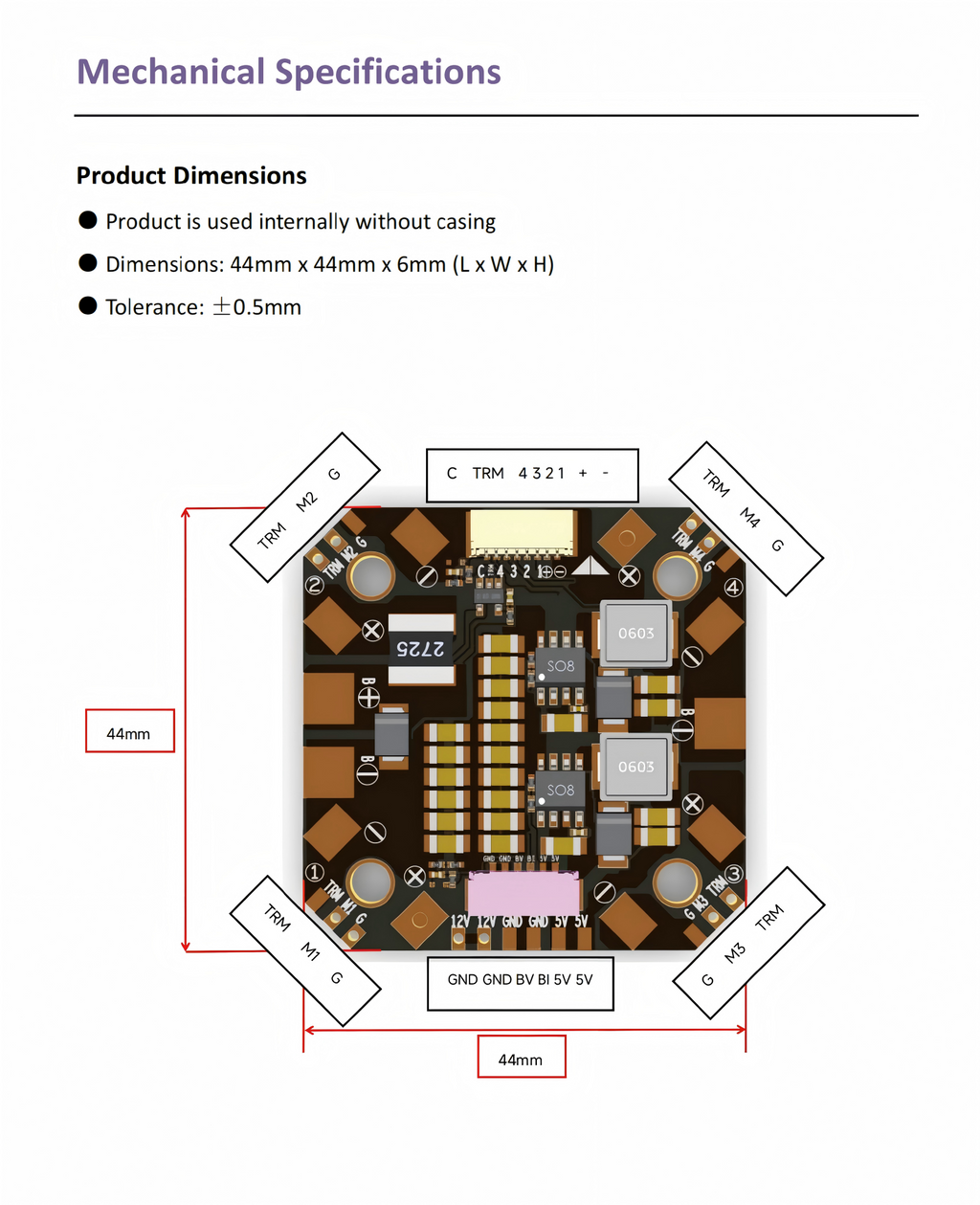

Mounting: 30.5 × 30.5 mm · M4
Weight: 14 g · Operating: −10°C to 50°C

In the box:

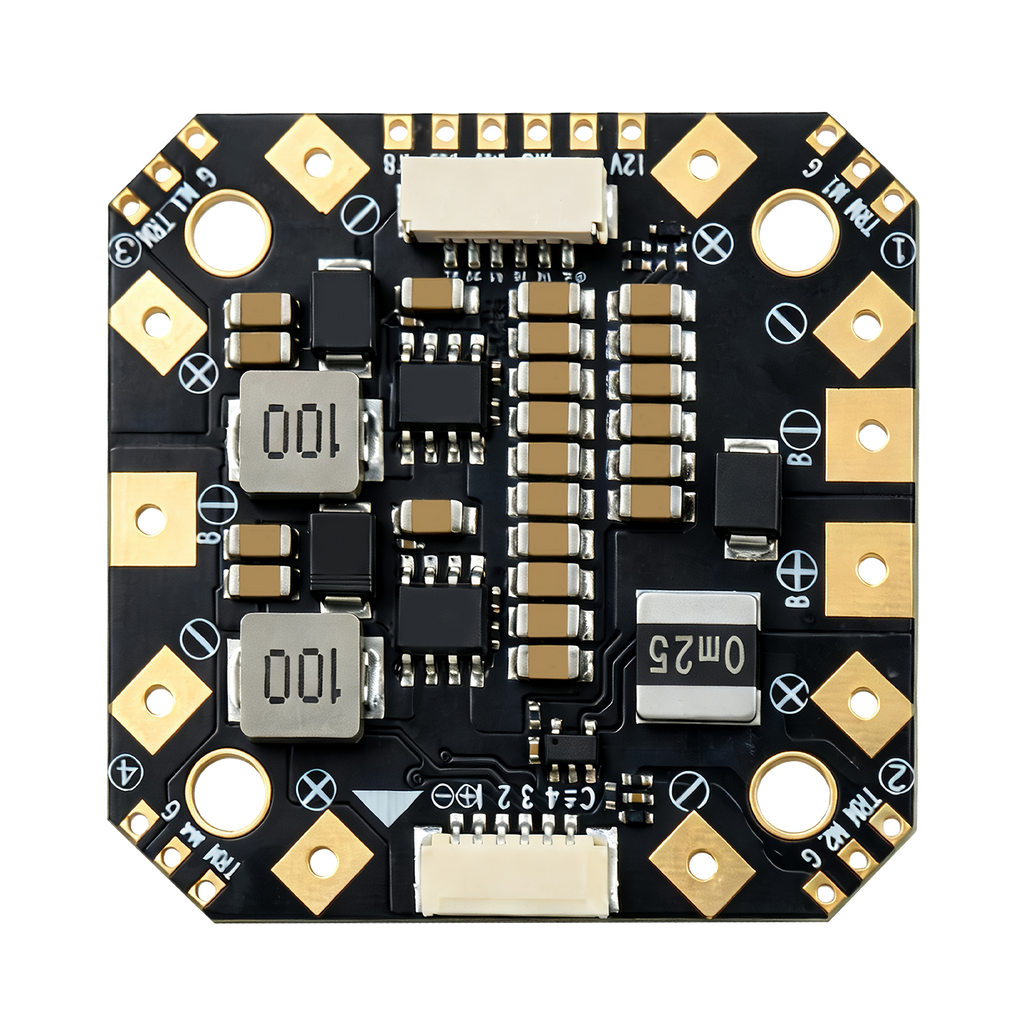

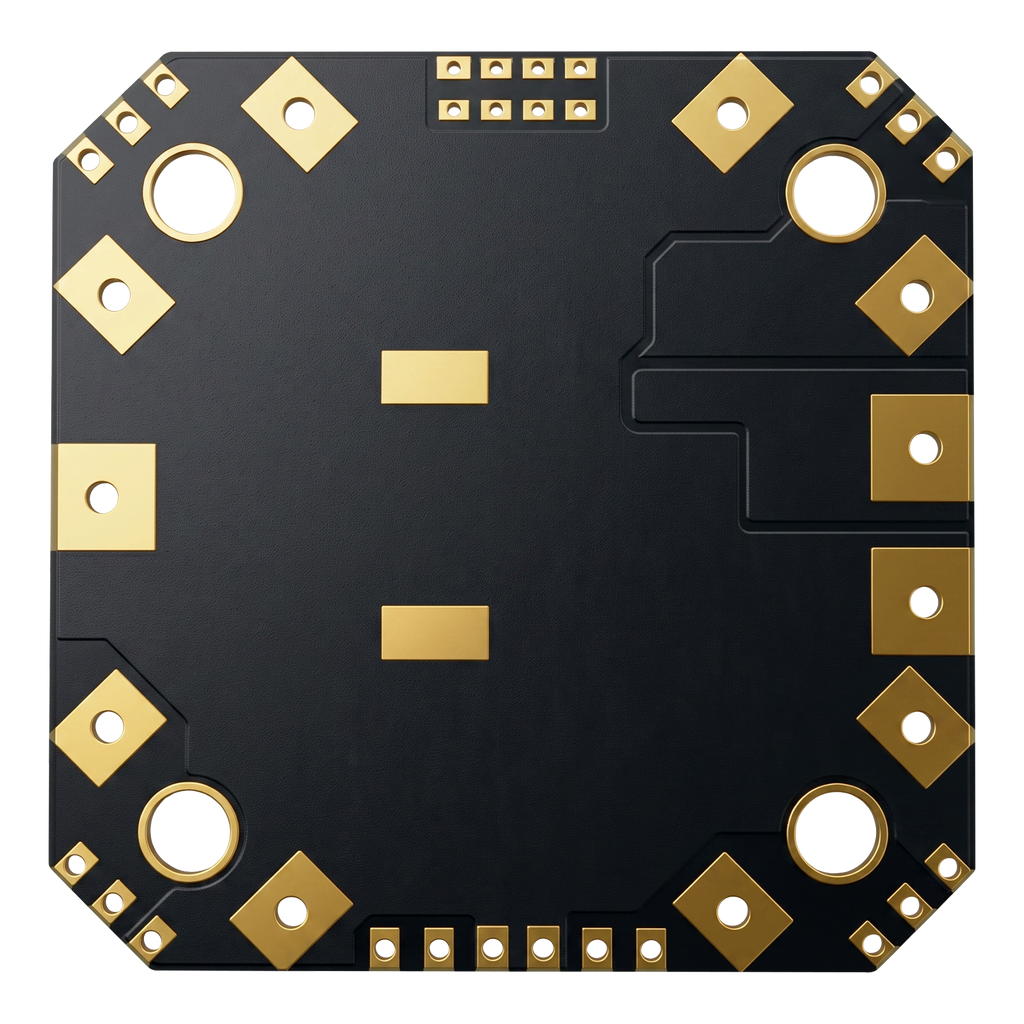

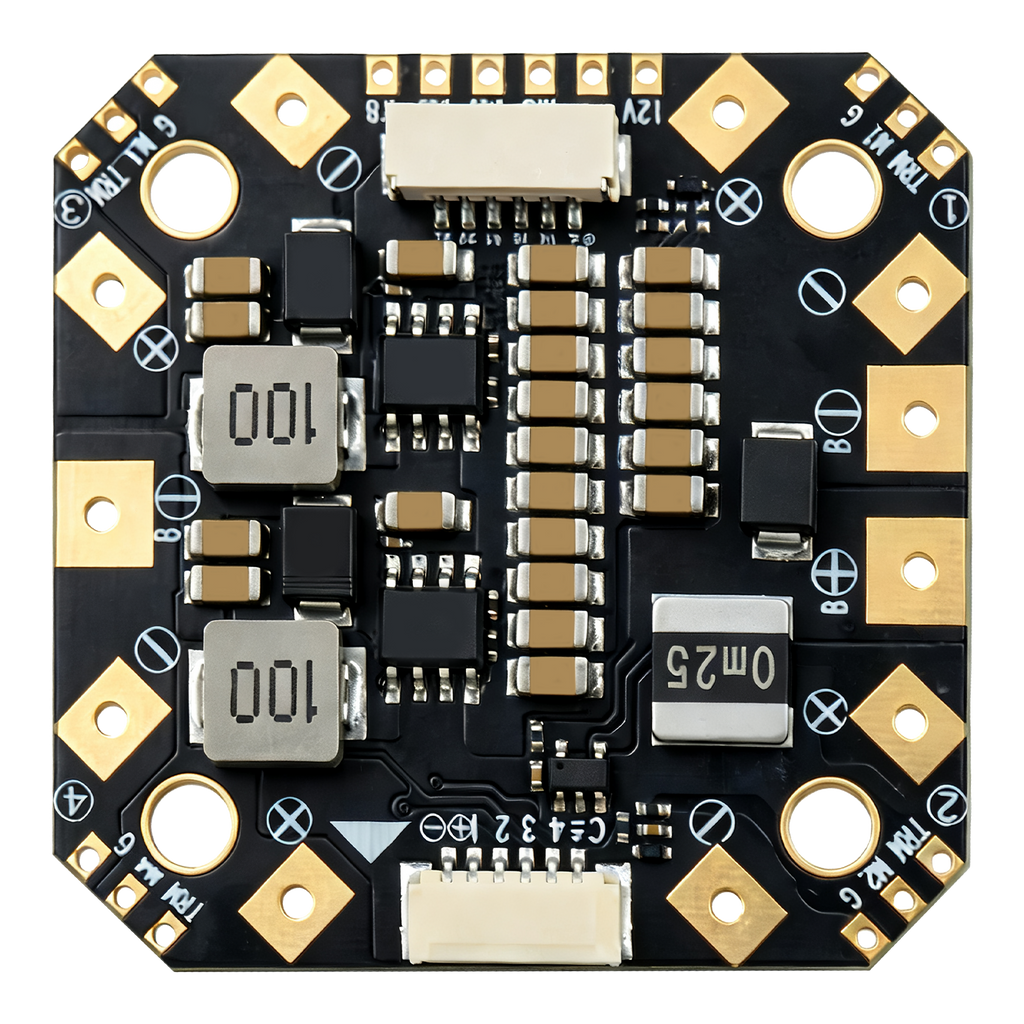

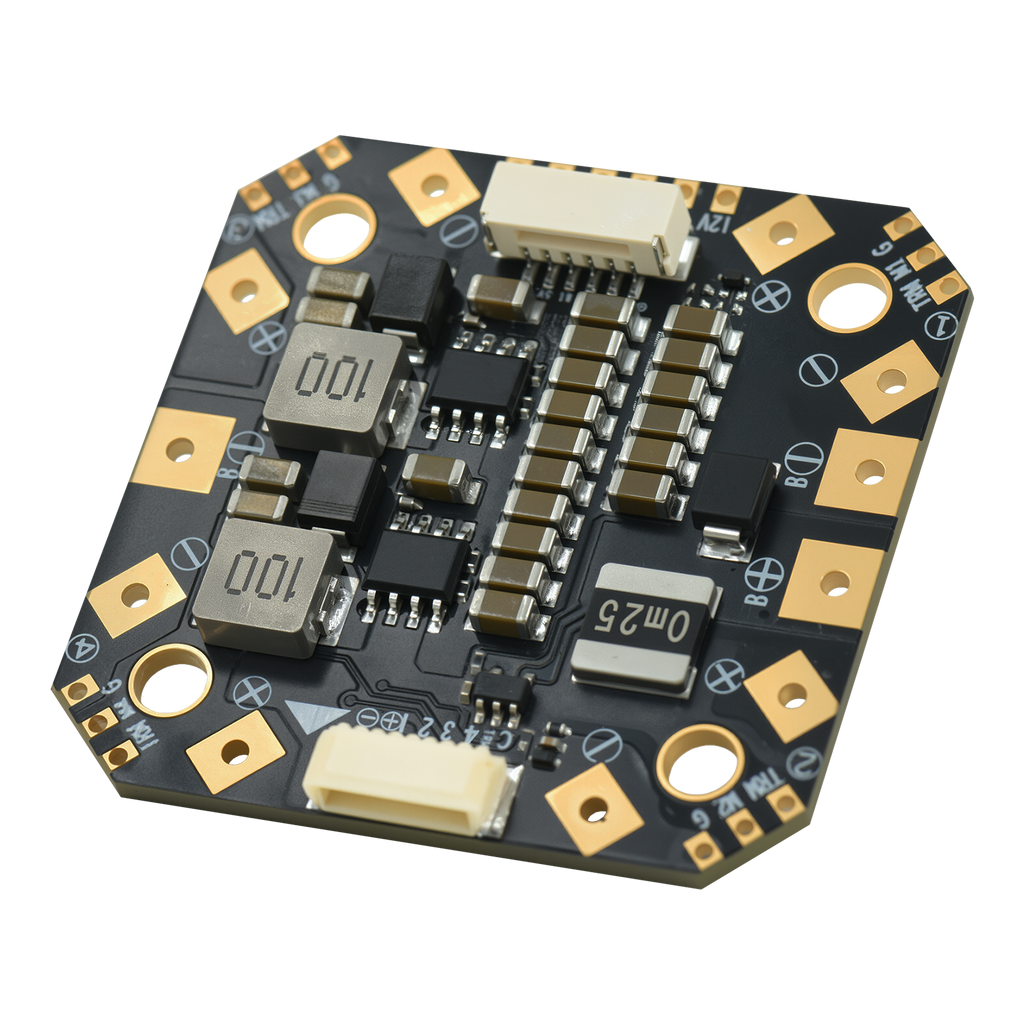

1× ESC power adapter board (PDB)
1× XT60 pigtail (12 AWG, 155 mm)
1× 35 V 1000 µF solid capacitor
1× SH1.0-8P cable (48 mm)

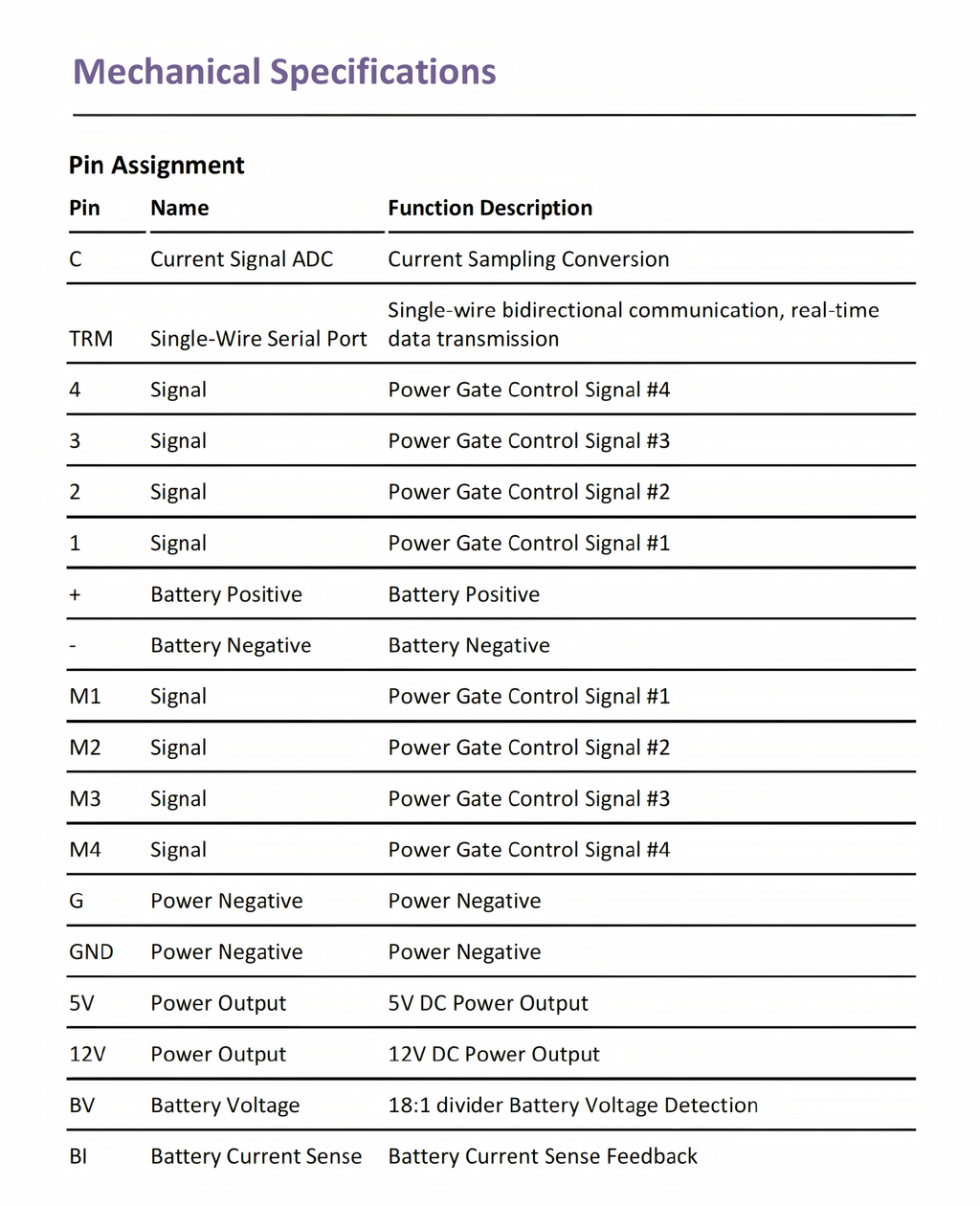

Full pinout, wiring, and electrical data: see the spec sheet on this page.
