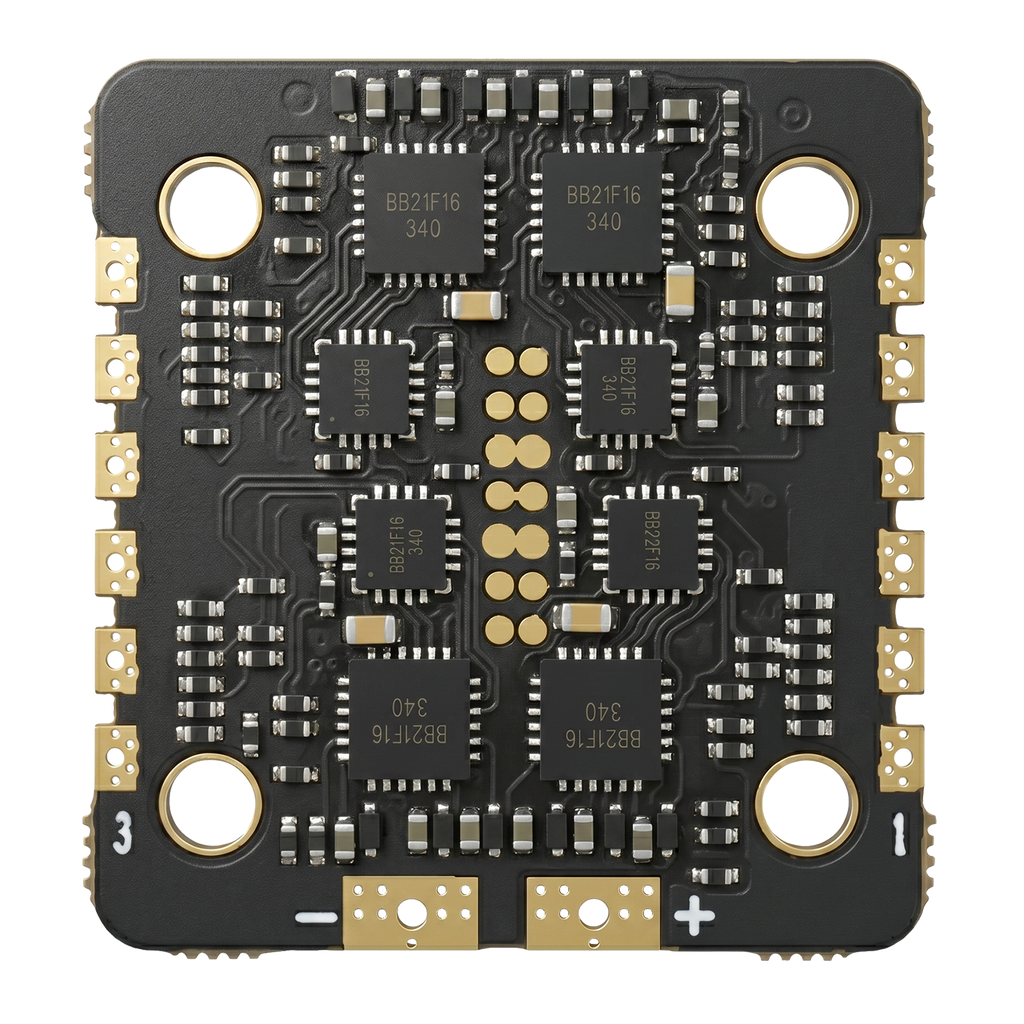

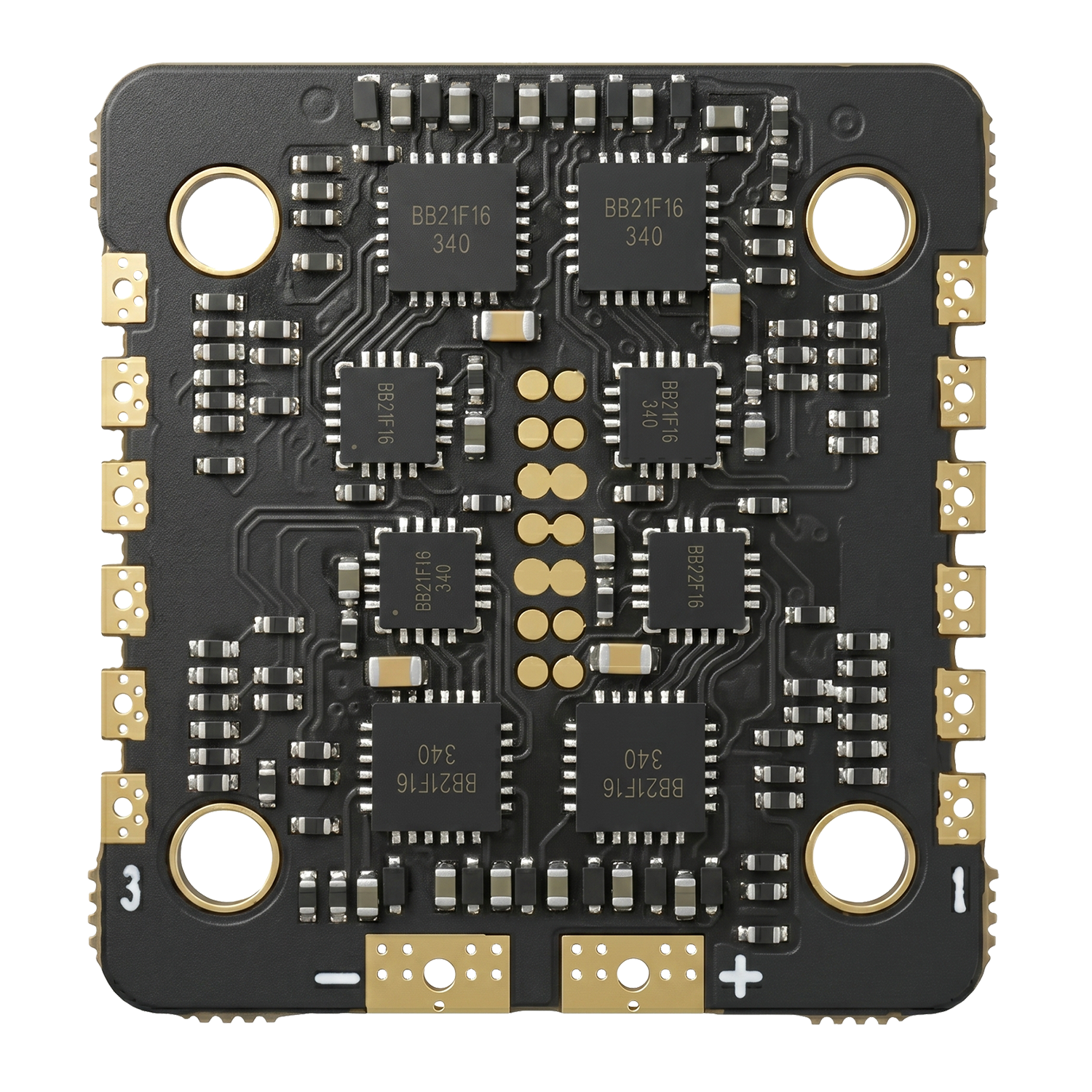

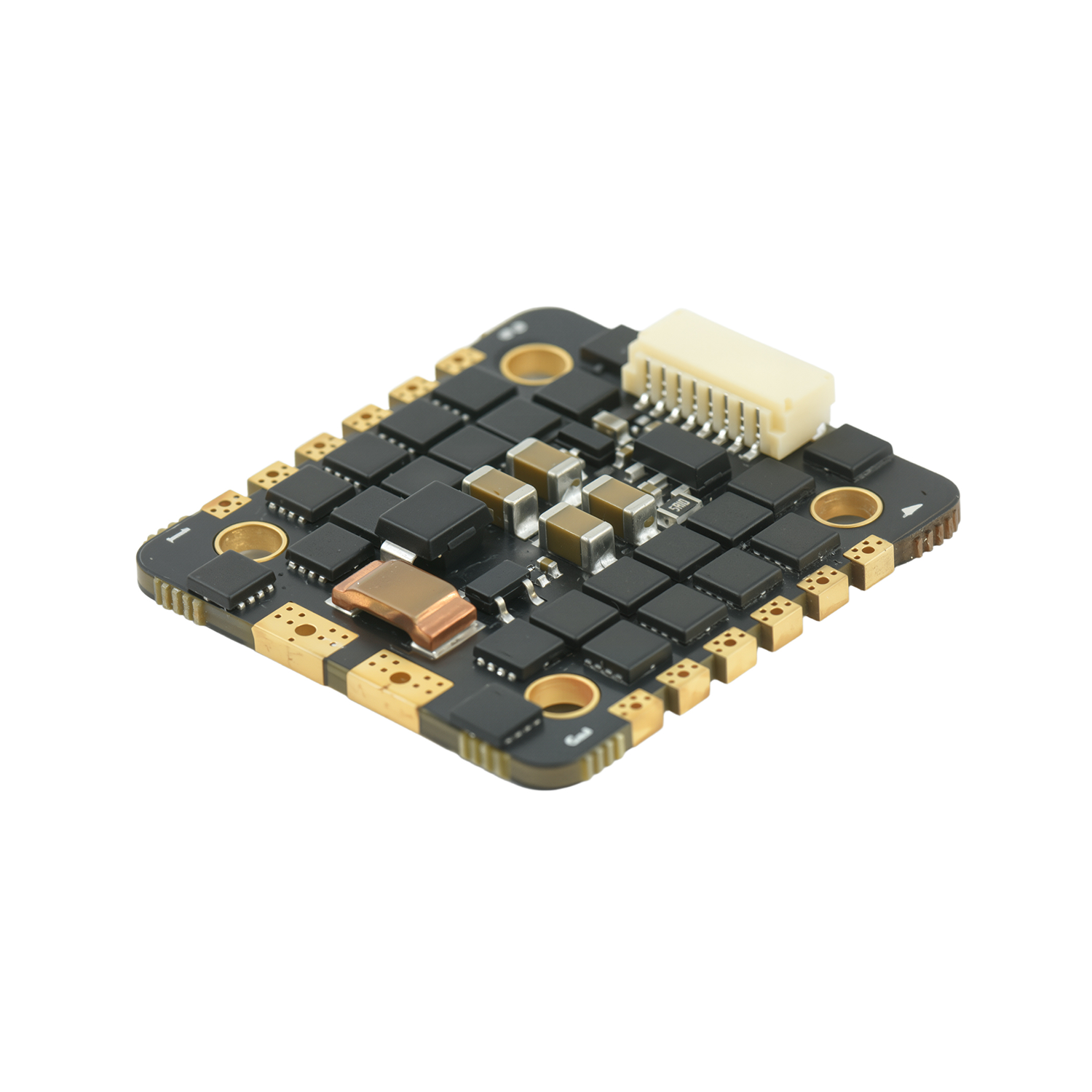

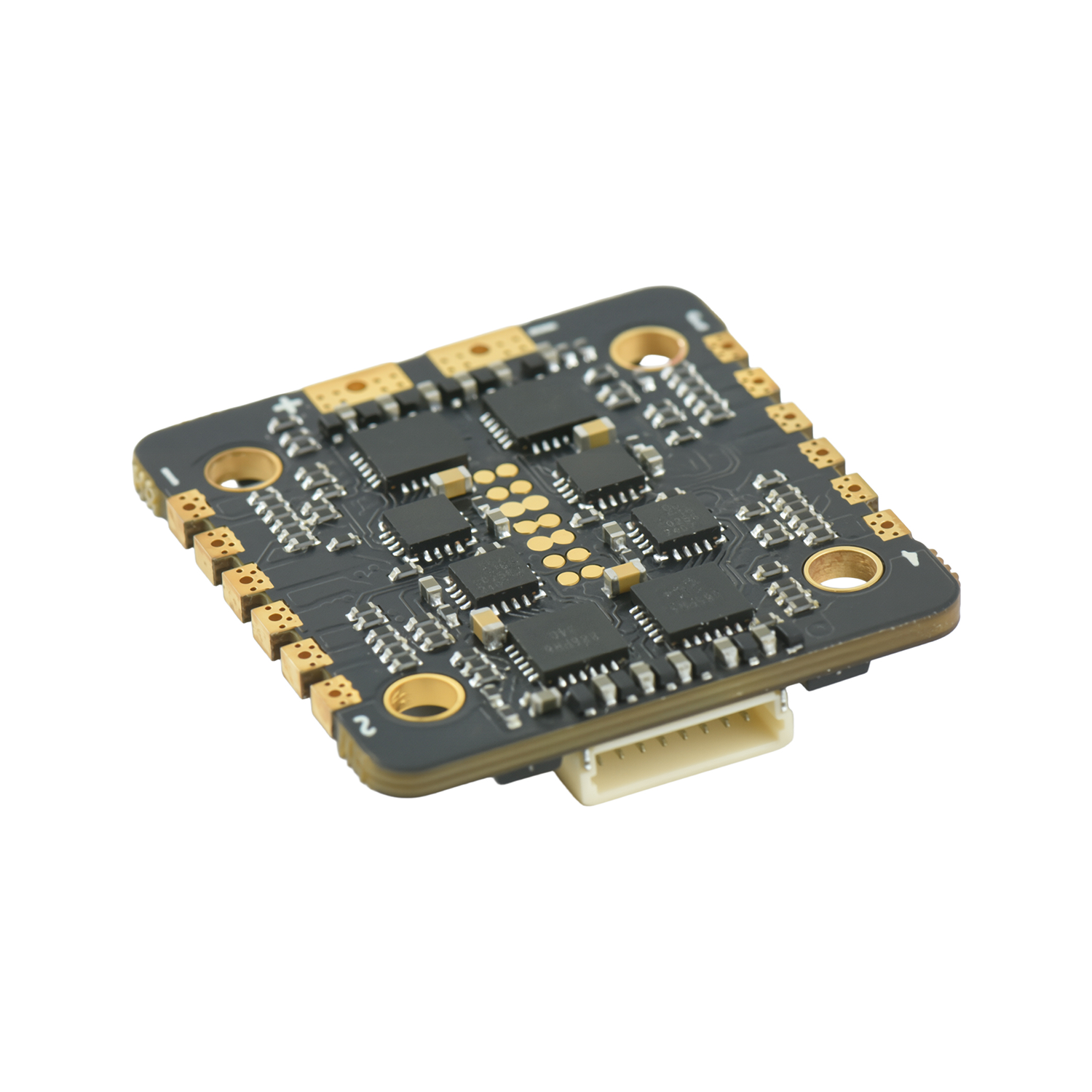

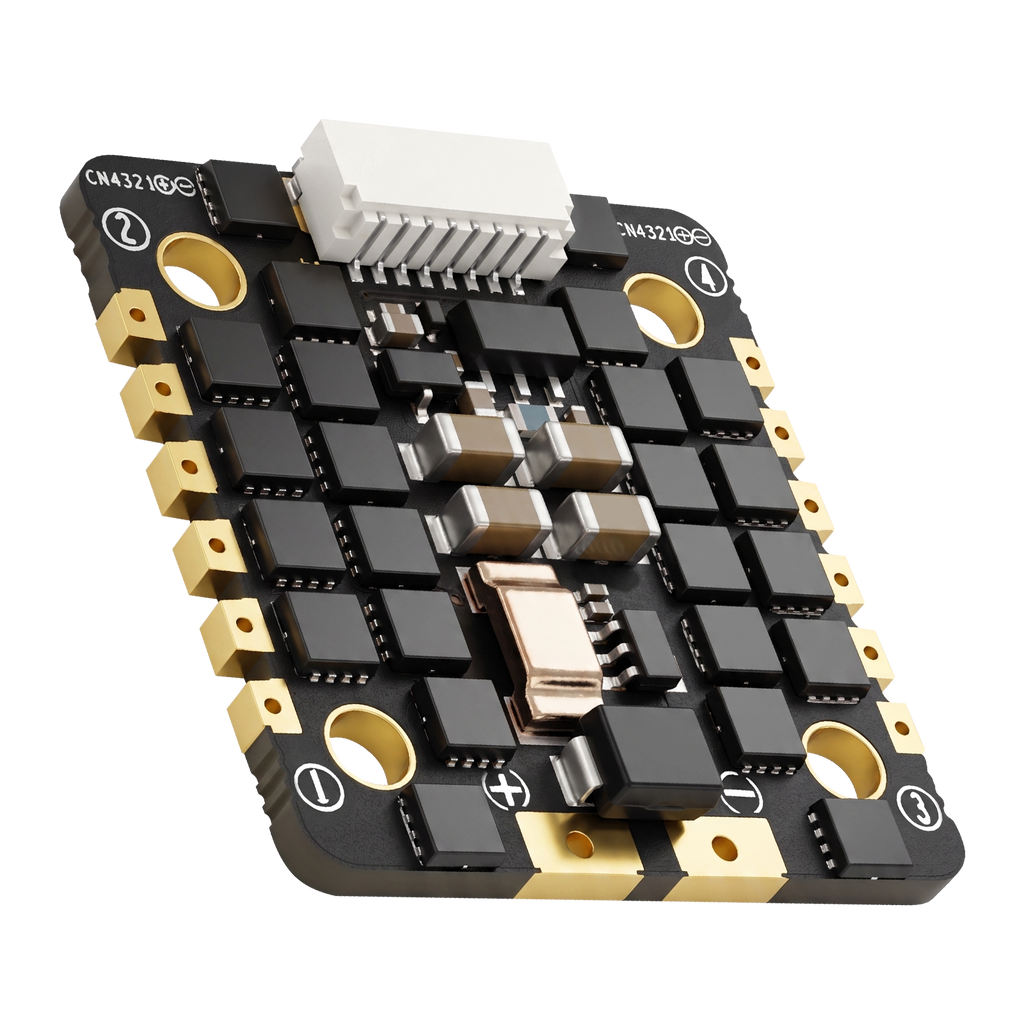

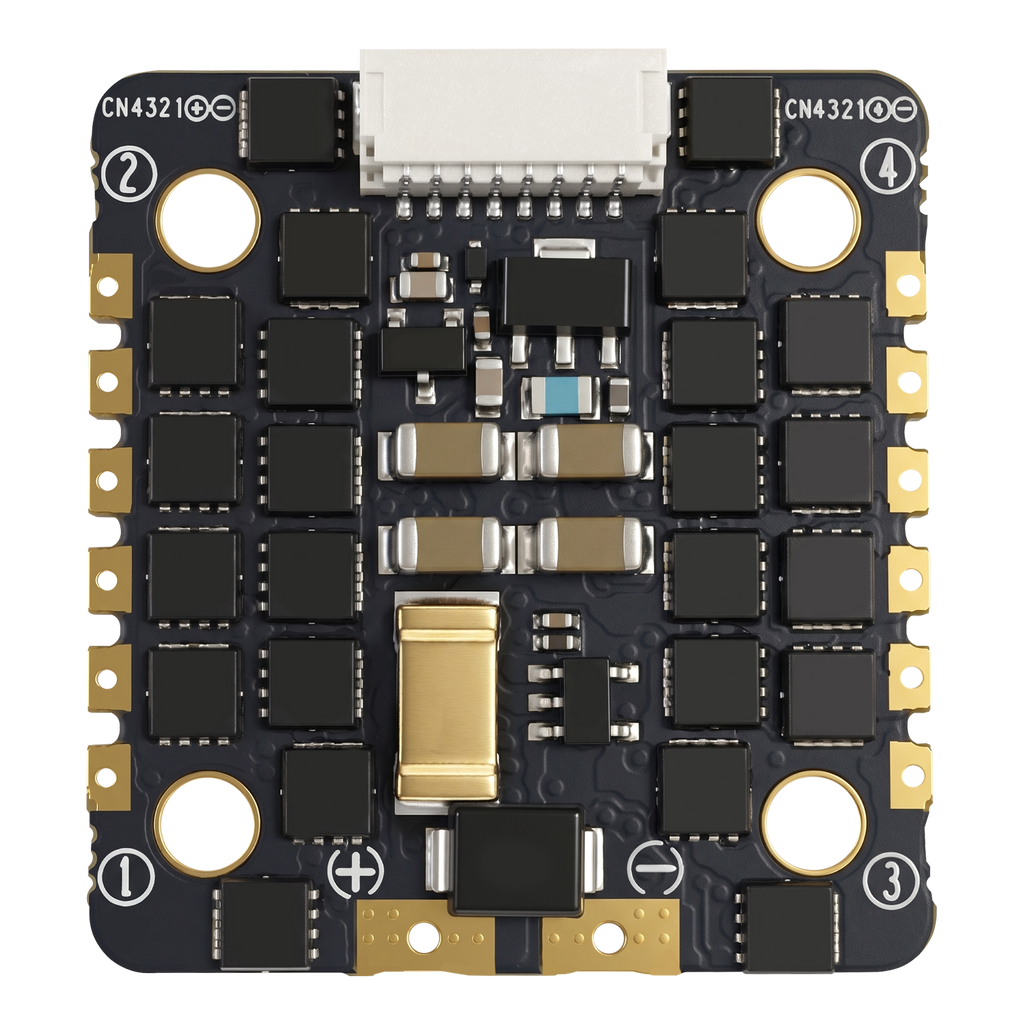

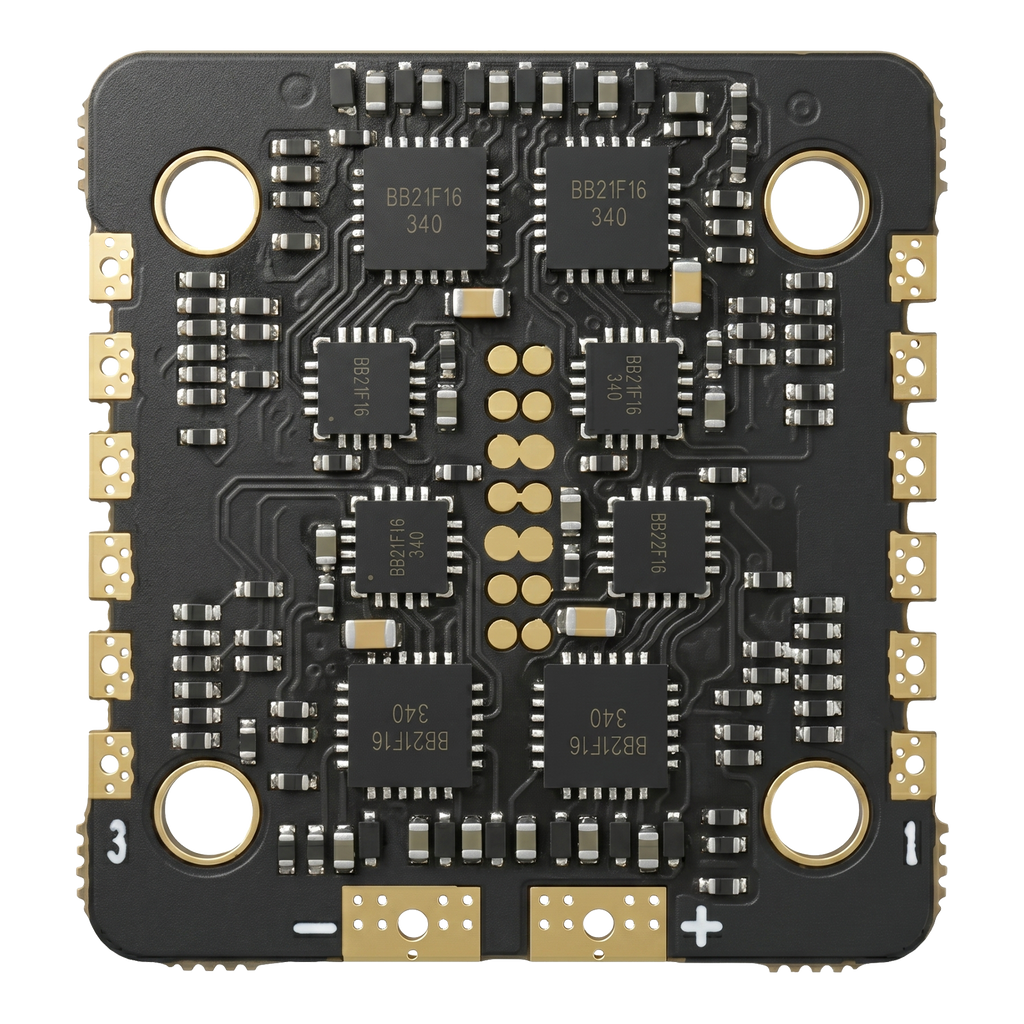

30A 4in1 Brushless ESC

A featherweight 30 A 4-in-1 ESC for 2S–4S builds — an 8-bit high-speed MCU, stall protection, and a 20×20 footprint at roughly five and a half grams.

- 30 A × 4 continuous, 40 A × 4 burst (30 s)
- 2S–4S, 6–18 V input
- PWM / DShot / OneShot motor protocols

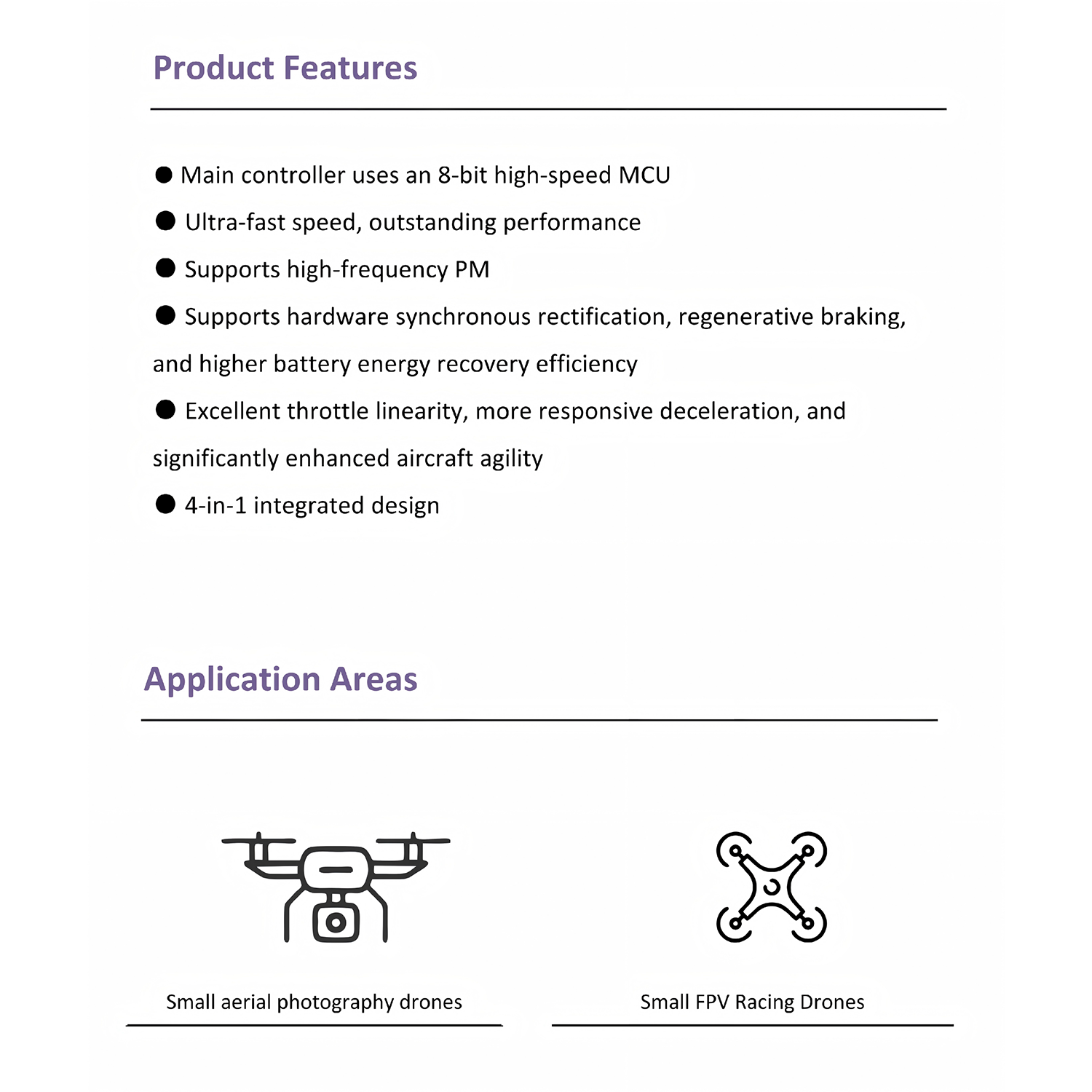

- Stall protection, high drive efficiency
- 20 × 20 mm M3 mounting, ≈5.6 g

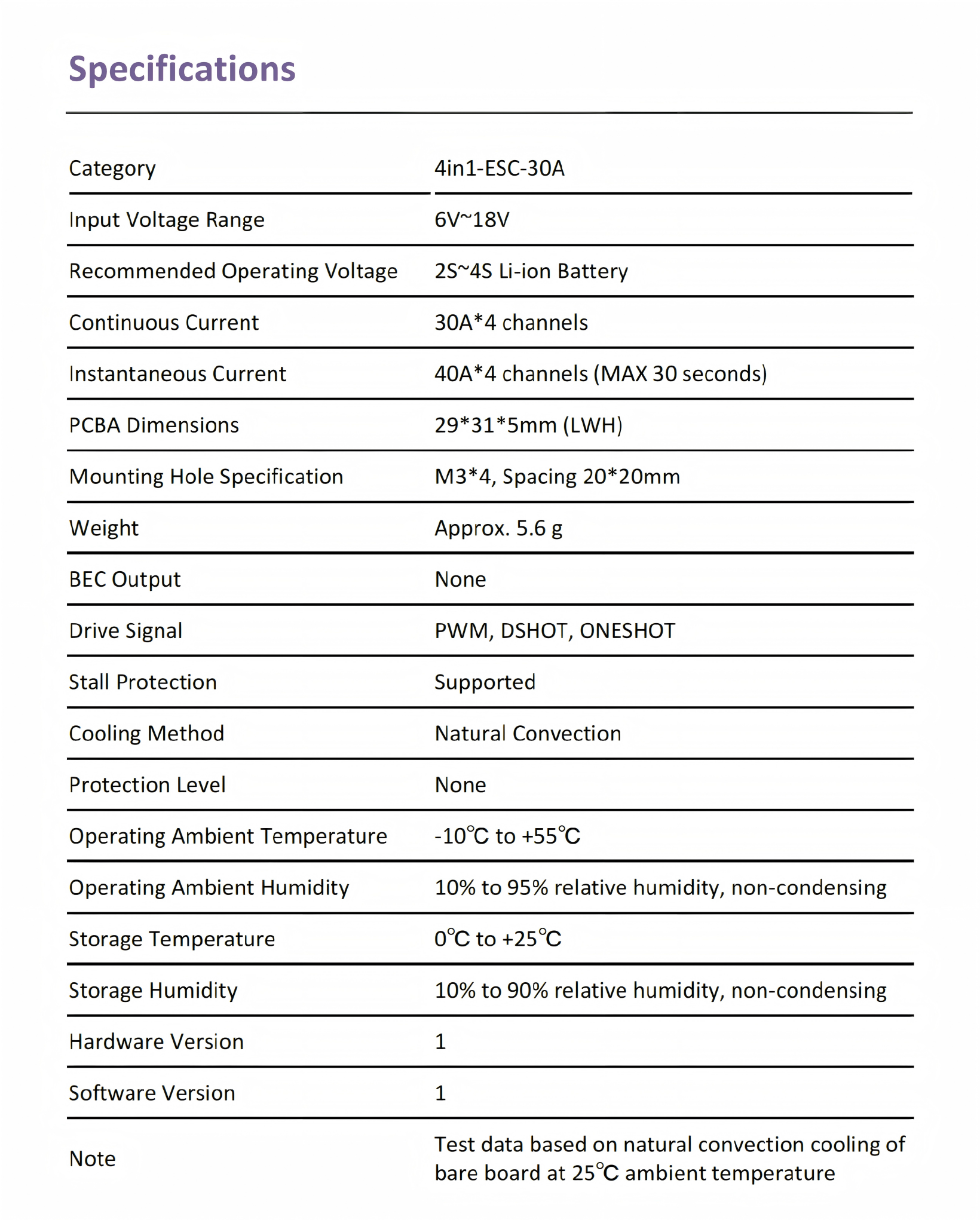

Key specs:
MCU: 8-bit high-speed
Continuous current: 30 A × 4 · Burst: 40 A × 4 (30 s)
Input: 2S–4S · 6–18 V
Protocols: PWM / DShot / OneShot

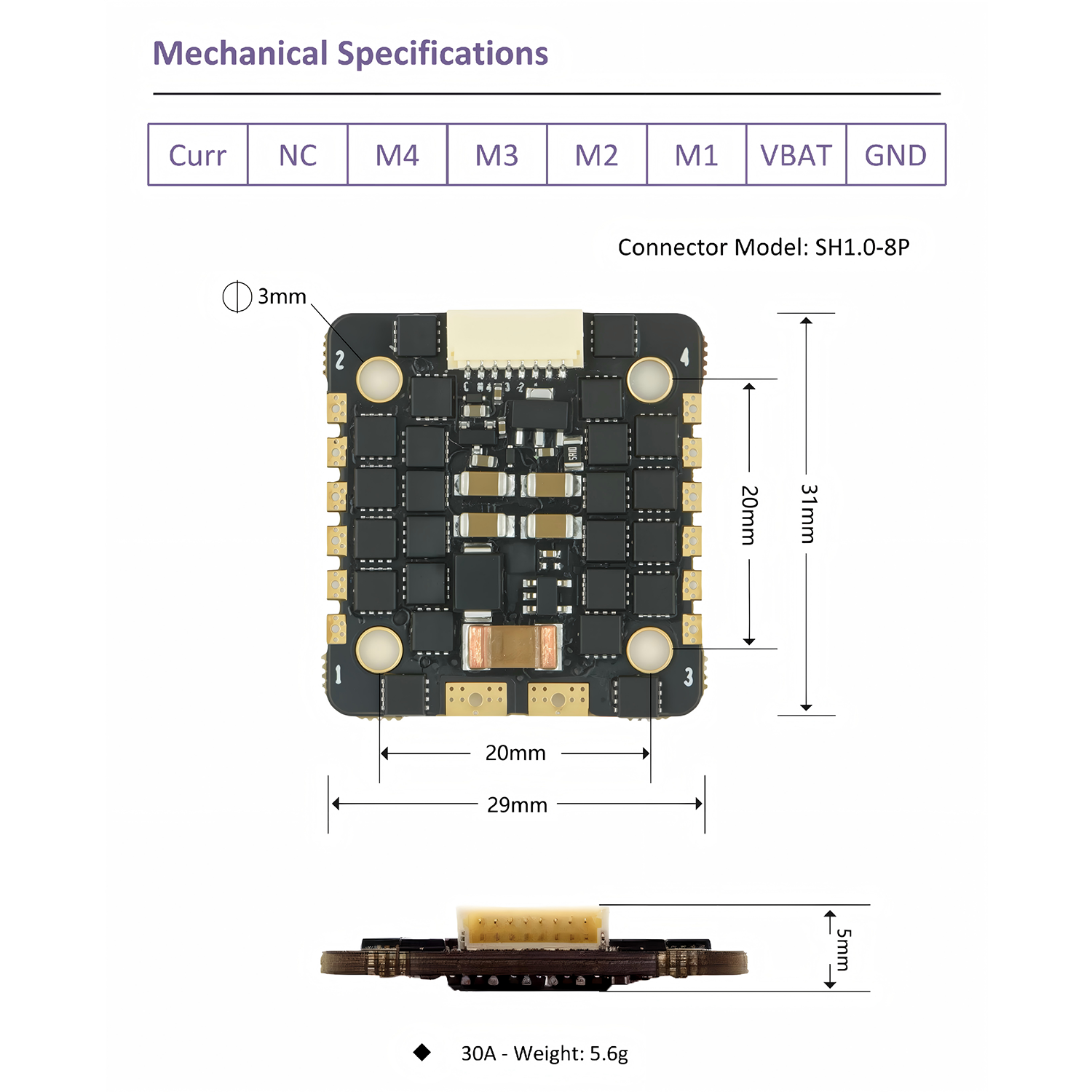

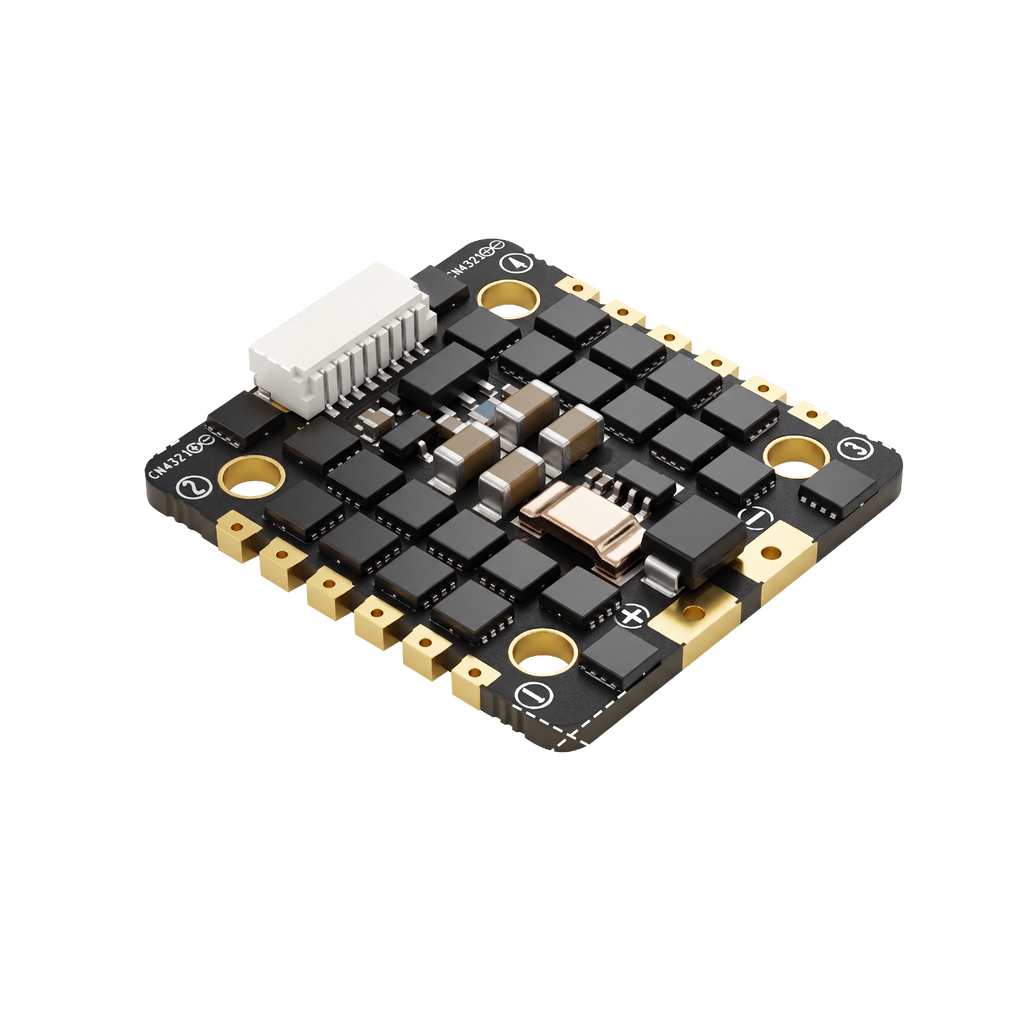

Size & weight: 29 × 31 × 5 mm · 20 × 20 mm M3 mounting · ≈5.6 g
Connector: SH1.0-8P
Operating: −10°C to +55°C

In the box:
1× 30A 4-in-1 ESC (8-bit)
1× SH1.0-8P cable (48 mm)
1× XT60 pigtail (14 AWG, 100 mm)
1× 35 V 1000 µF solid capacitor
5× M2×30 hex socket screw
5× M2 hex nut
5× M2 rubber standoff (yellow)

Full pinout, wiring, and electrical data: see the spec sheet on this page.
