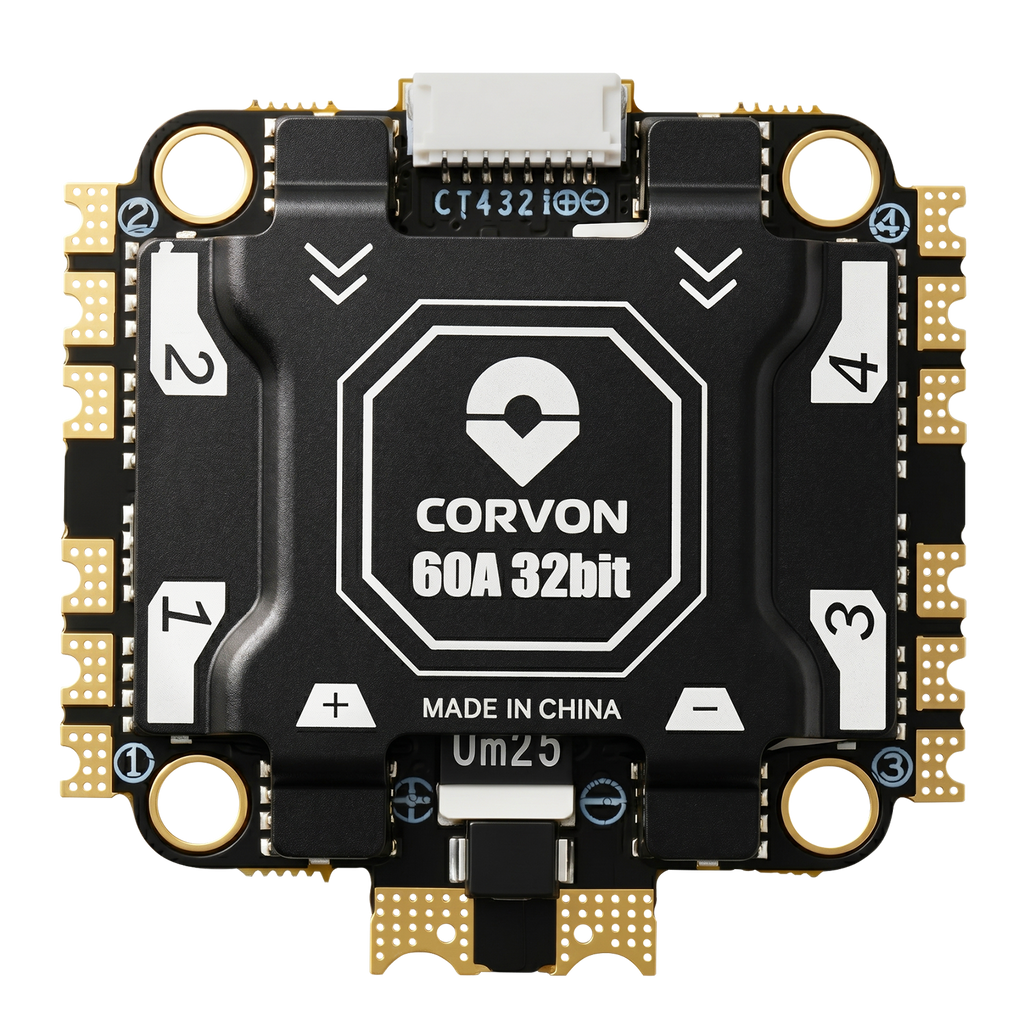

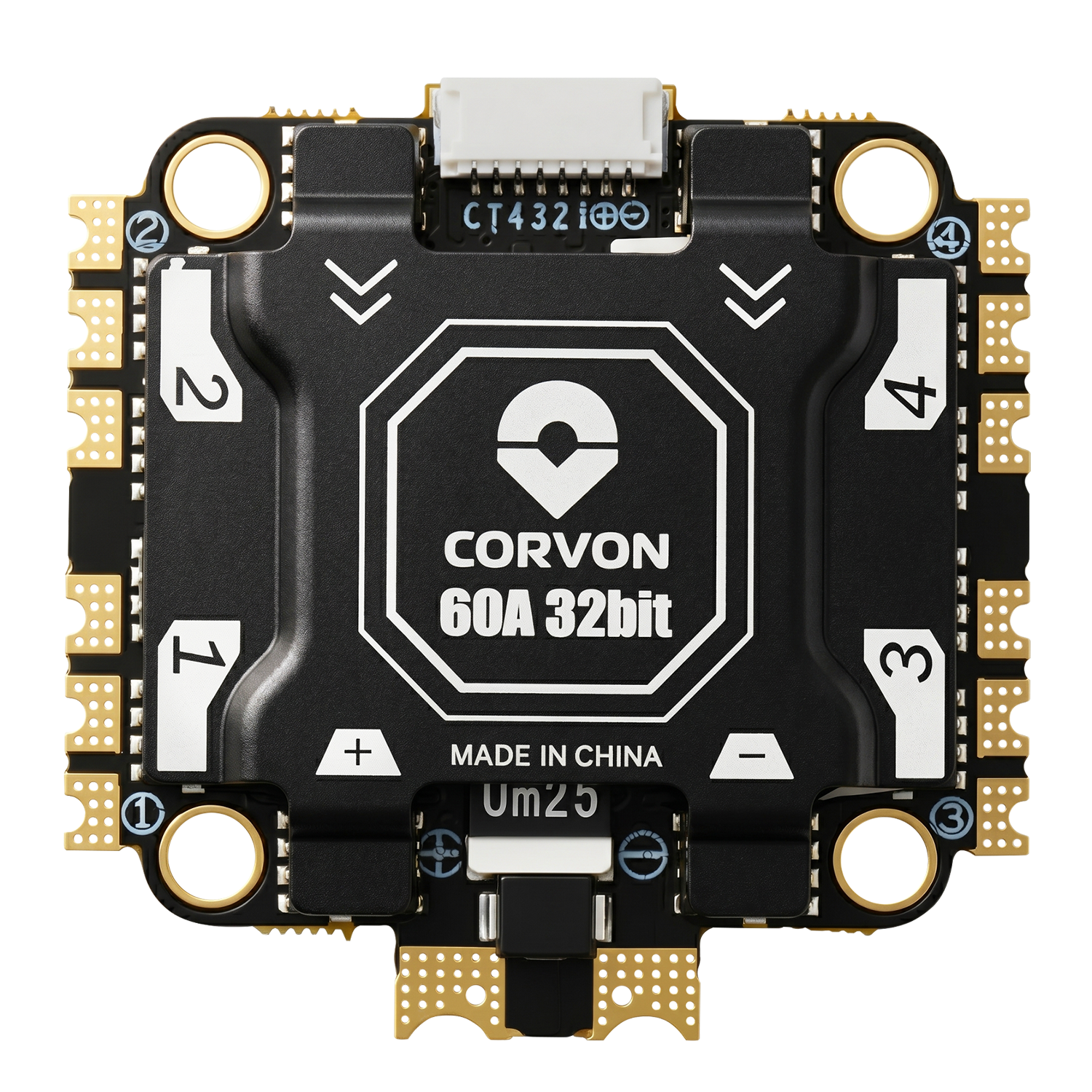

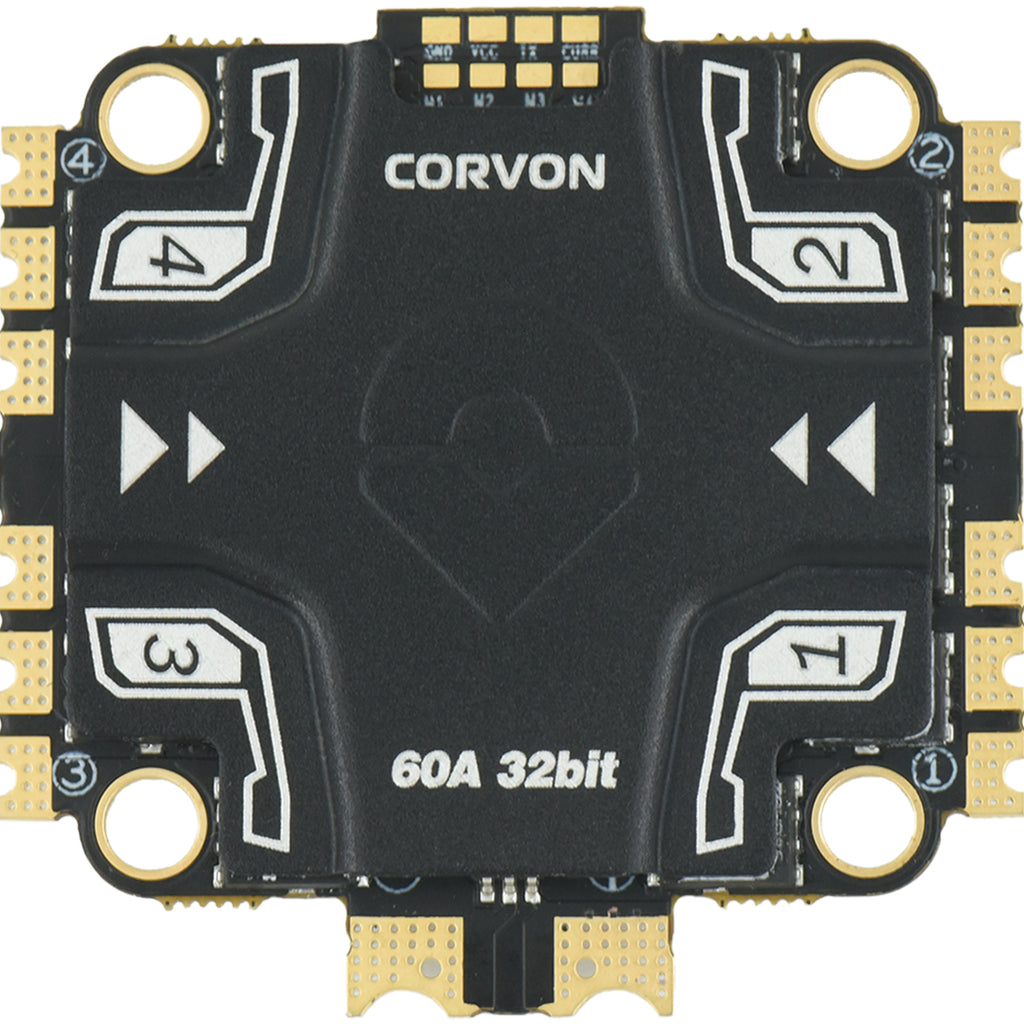

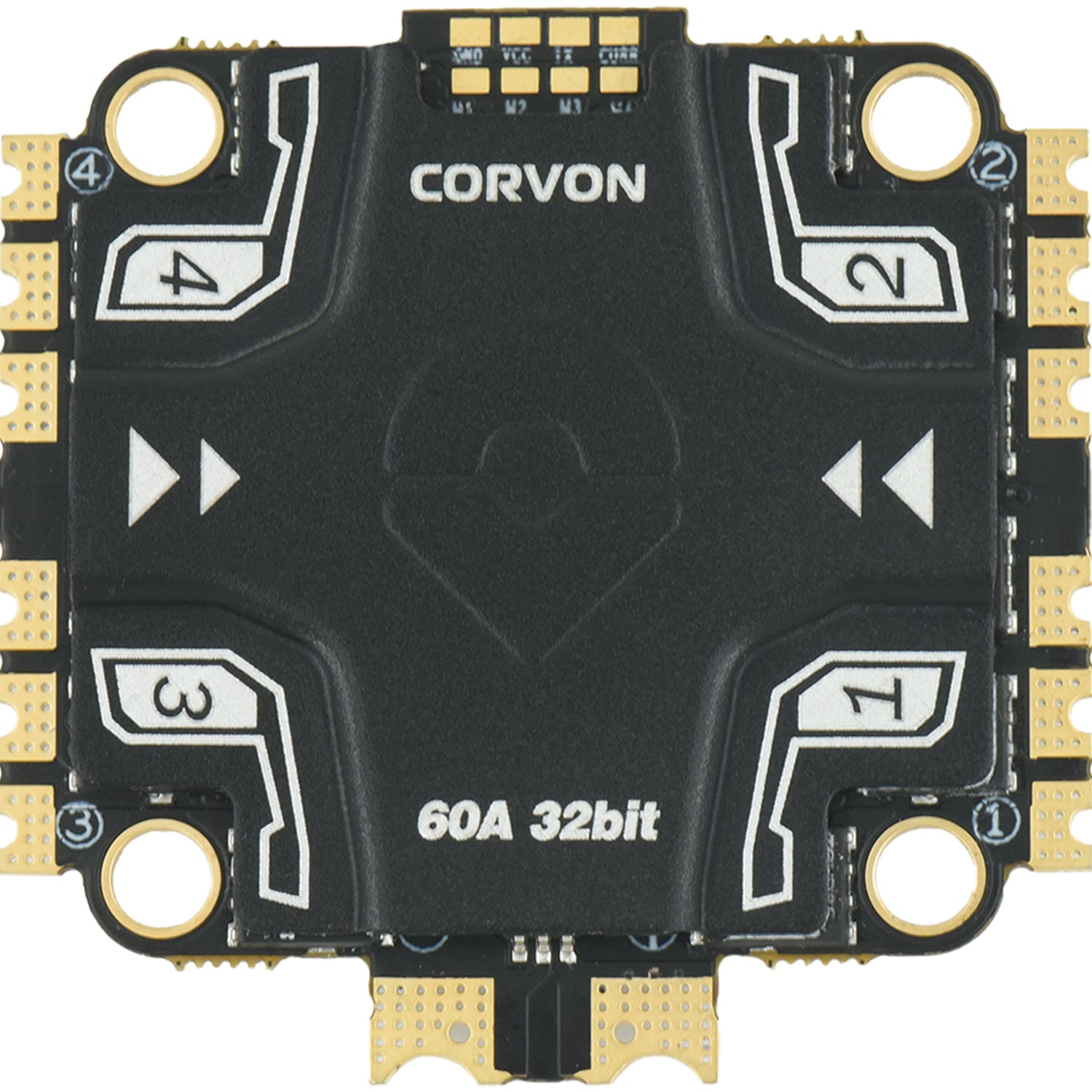

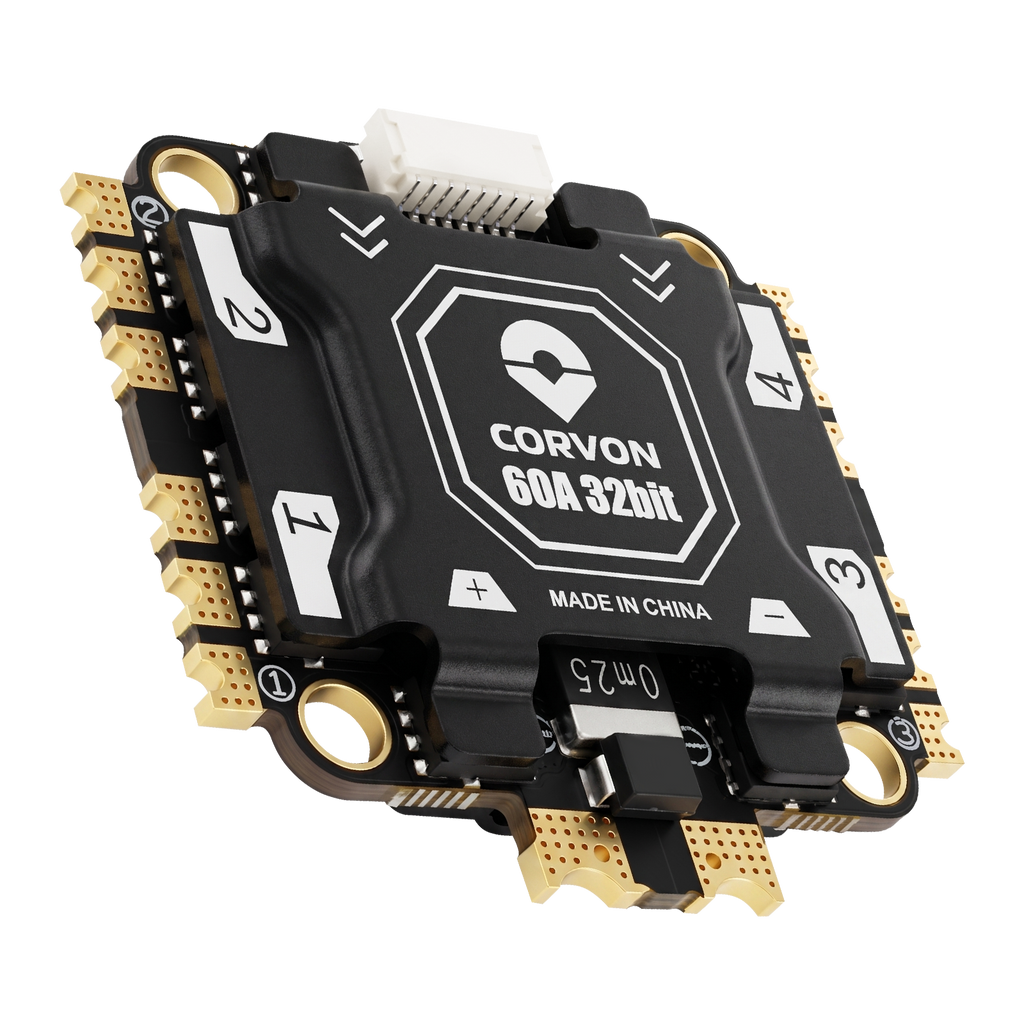

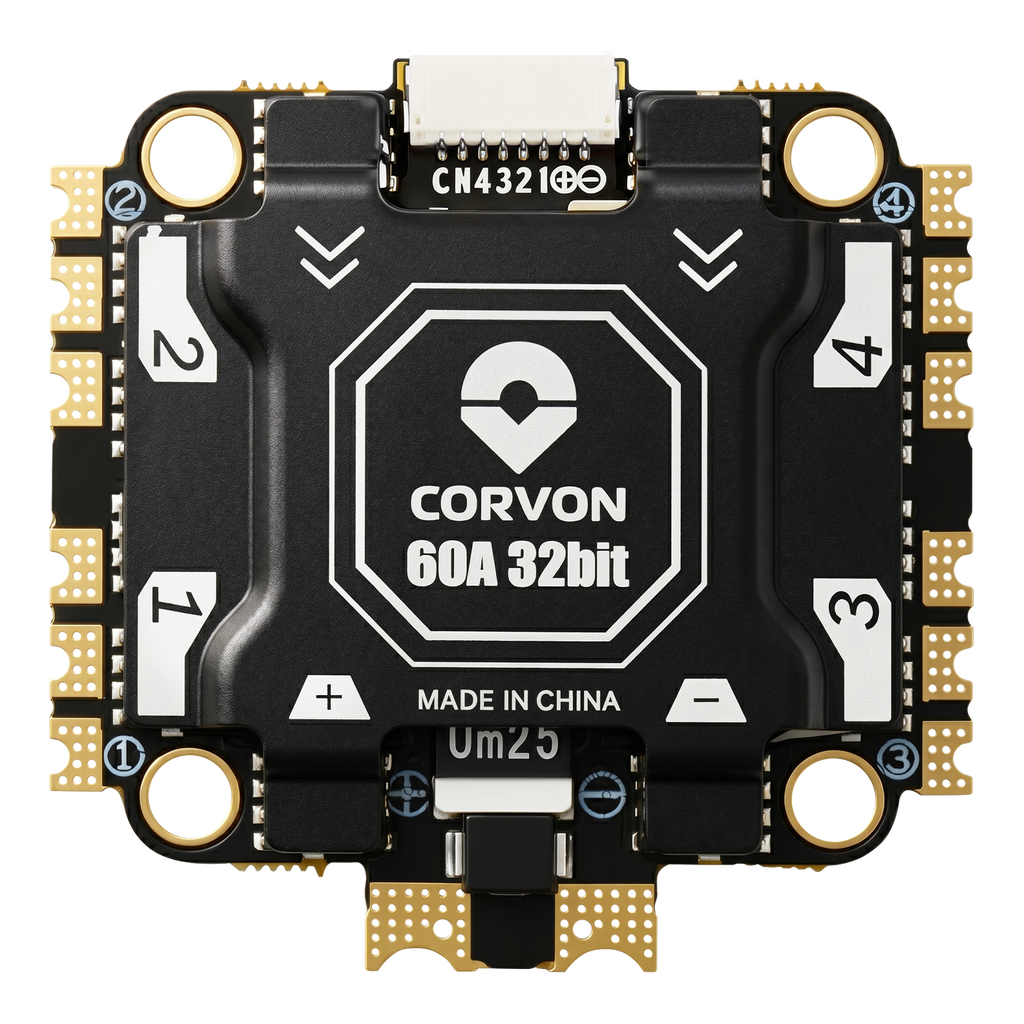

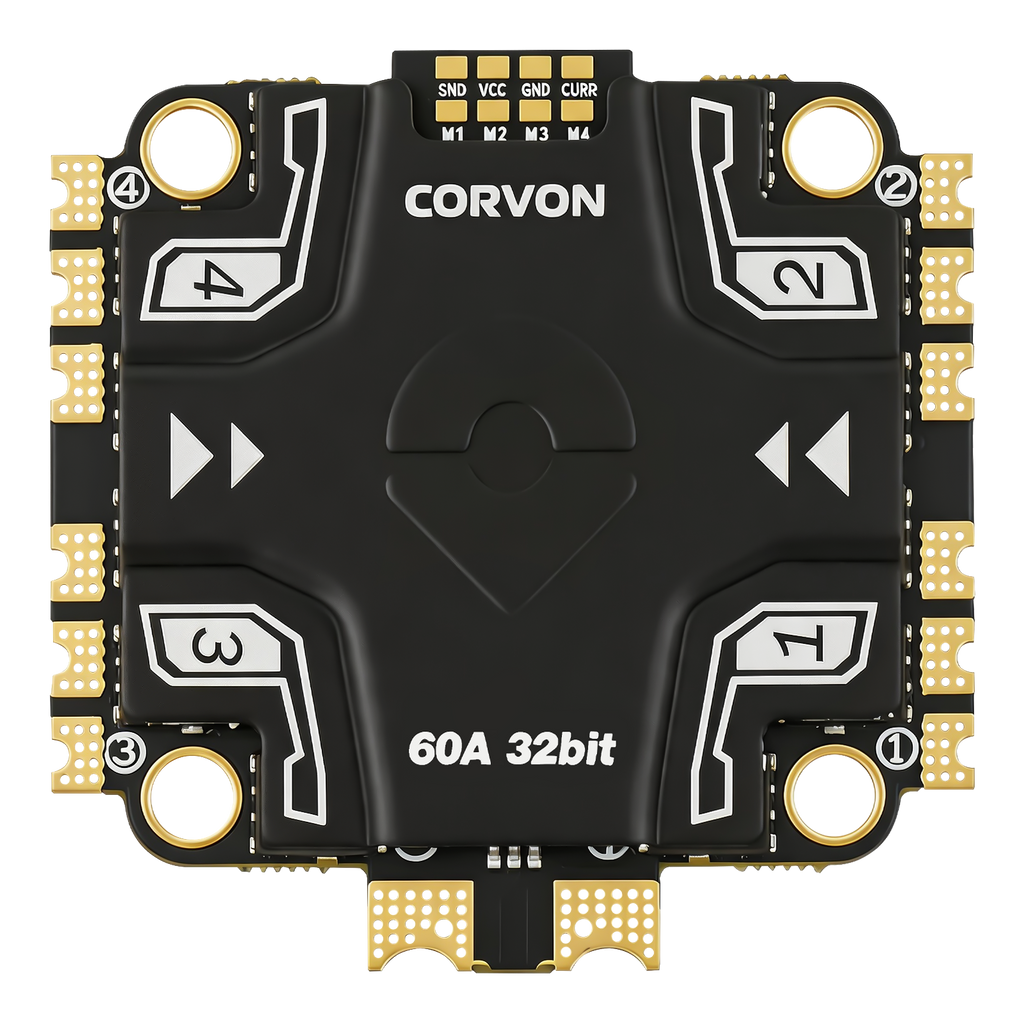

60A 4in1 32-bit ESC

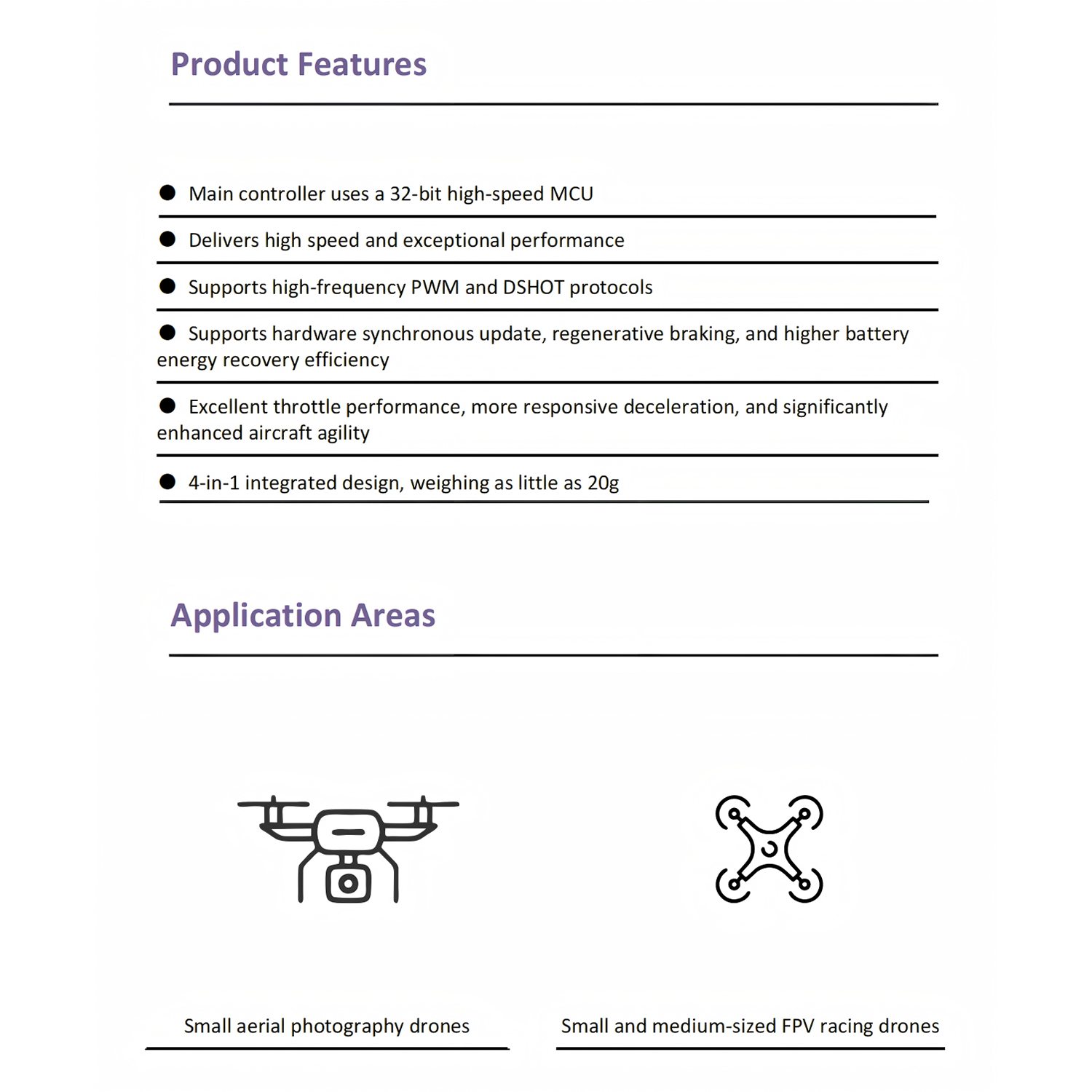

A 60 A 4-in-1 ESC built around a 32-bit high-speed MCU — smooth, efficient motor control with hardware synchronous rectification and stall protection for FPV and UAV builds.

- 60 A × 4 continuous, 80 A × 4 burst (30 s)
- 2S–6S Li-ion / LiPo, 6–28 V input
- PWM / DShot / OneShot motor protocols
- Hardware synchronous rectification, stall protection
- Pre-installed heatsink
- 30 × 30 mm M4 mounting

Key specs:
MCU: 32-bit high-speed
Continuous current: 60 A × 4 · Burst: 80 A × 4 (30 s)
Input: 2S–6S · 6–28 V
Protocols: PWM / DShot / OneShot

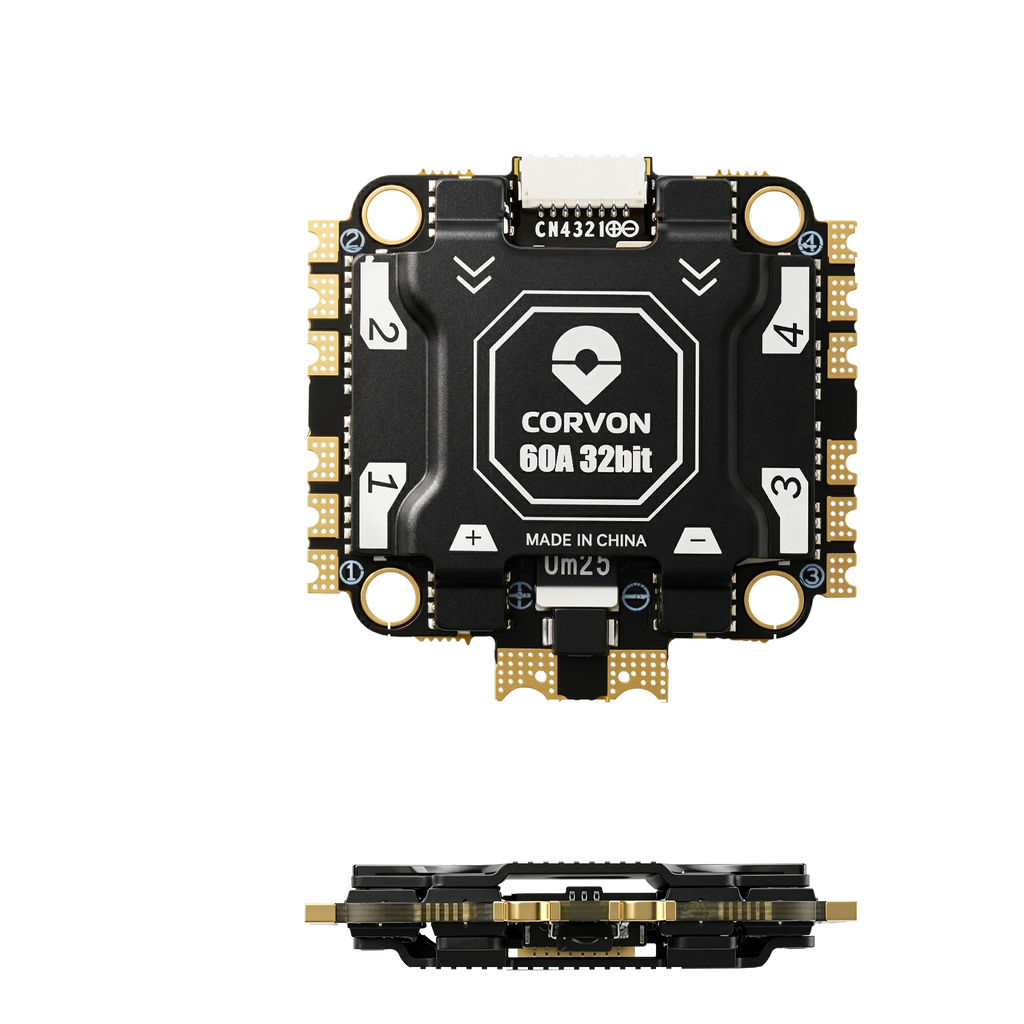

Size & weight: 43.5 × 44 × 8.5 mm · 30 × 30 mm M4 mounting · ≈20 g (with heatsink)
Operating: −10°C to +55°C · 10–95% RH

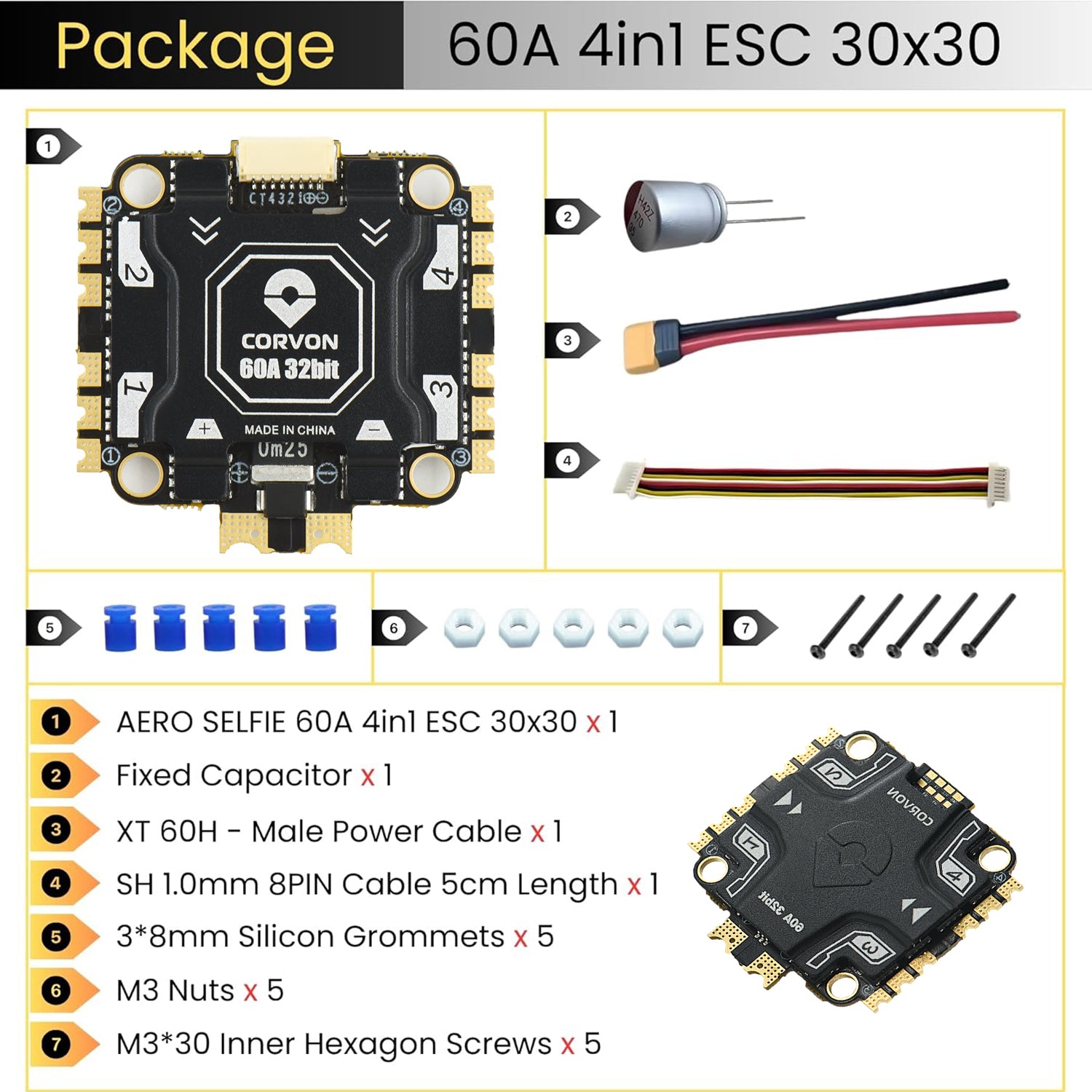

In the box:
1× 60A 4-in-1 ESC (32-bit)
1× SH1.0-8P cable (48 mm)
1× XT60 pigtail (12 AWG, 155 mm)
1× 35 V 1000 µF solid capacitor
5× M3 hex socket screw
5× M3 hex nut
5× M3 rubber standoff (blue)

Full pinout, wiring, and electrical data: see the spec sheet on this page.
