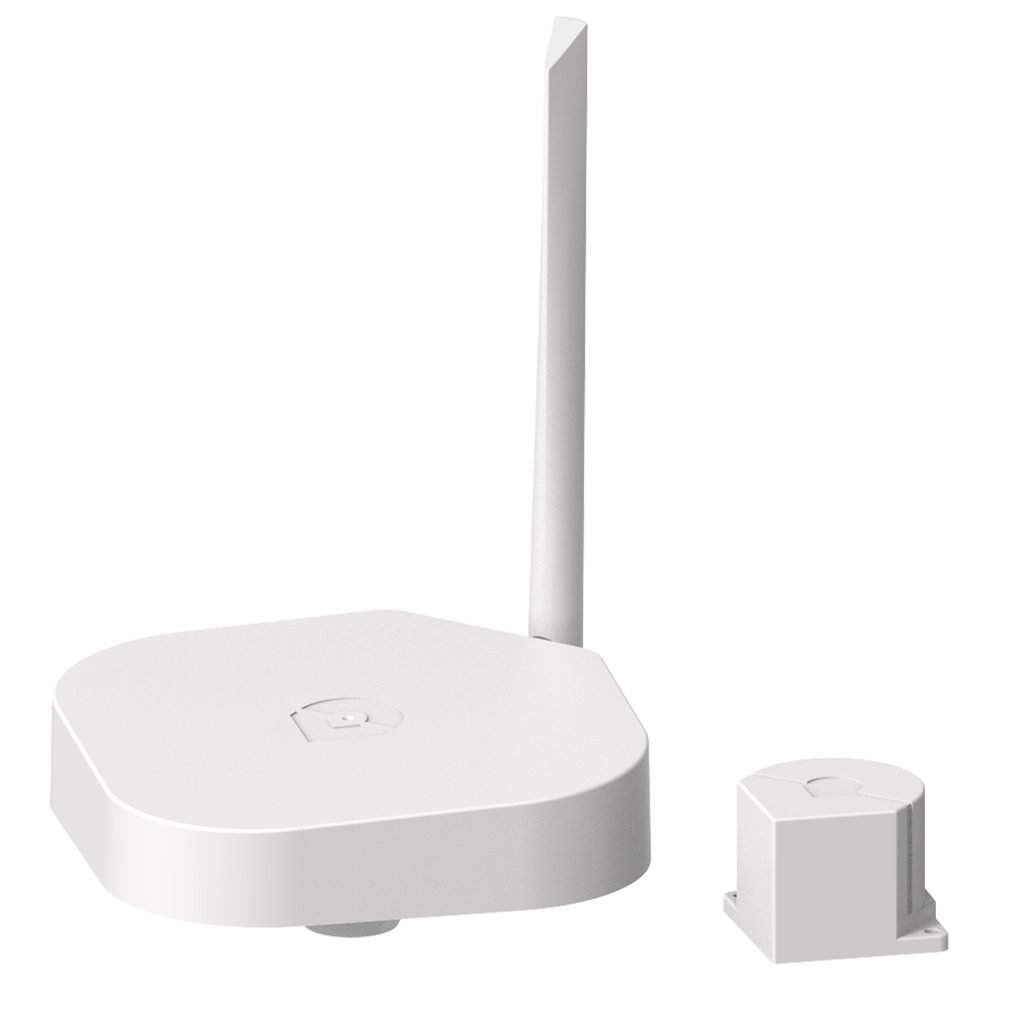

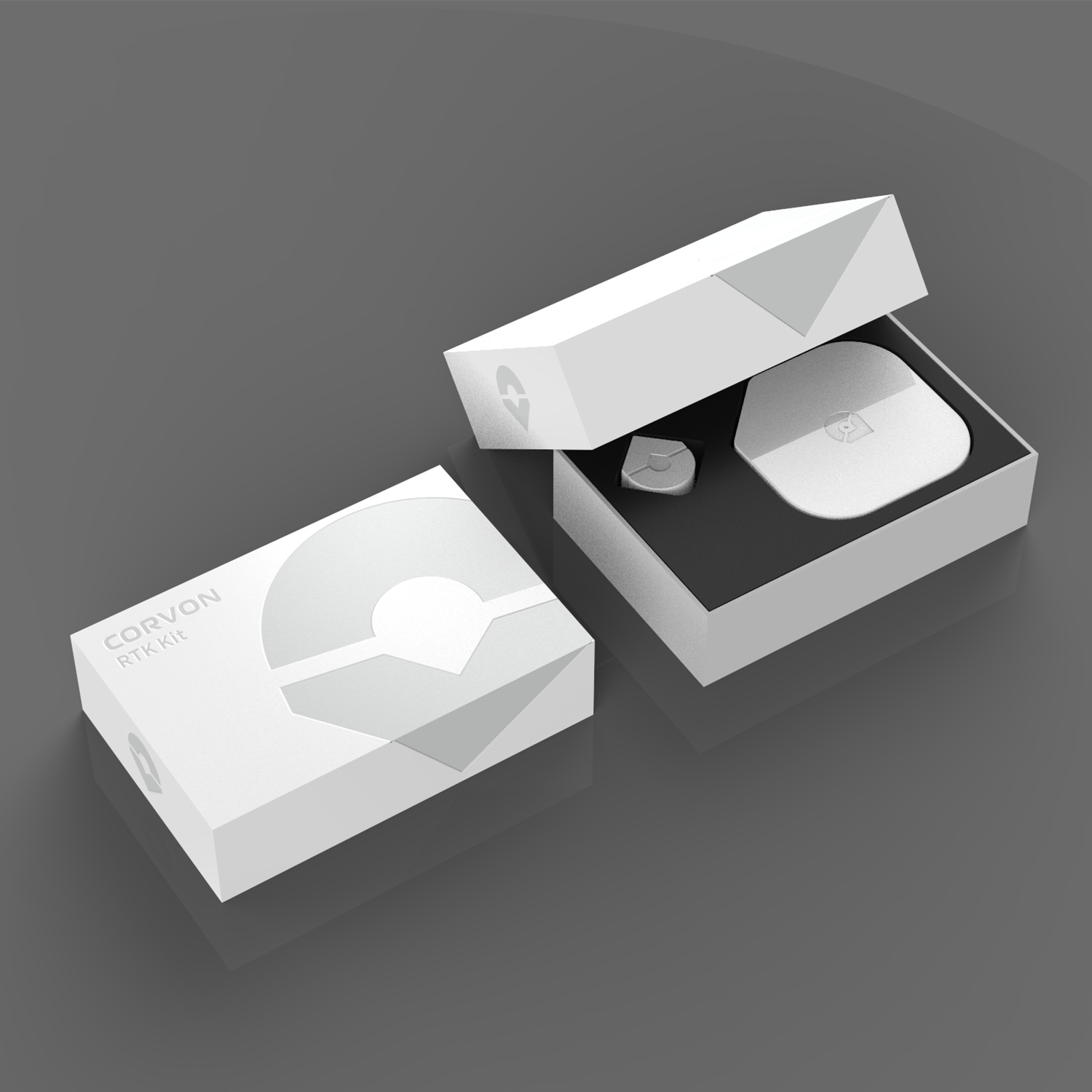

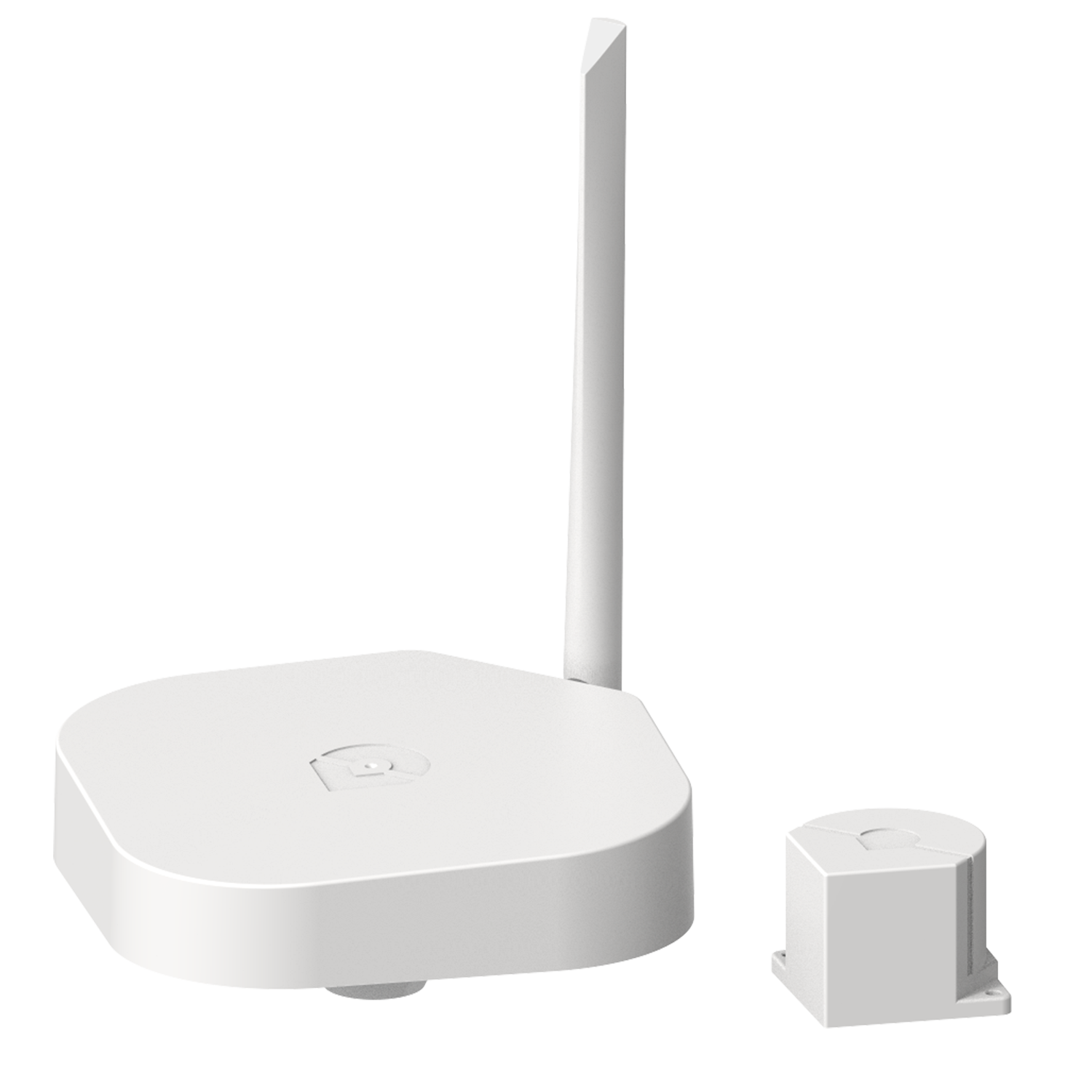

RTK-11-Kit (Base station + mobile station)

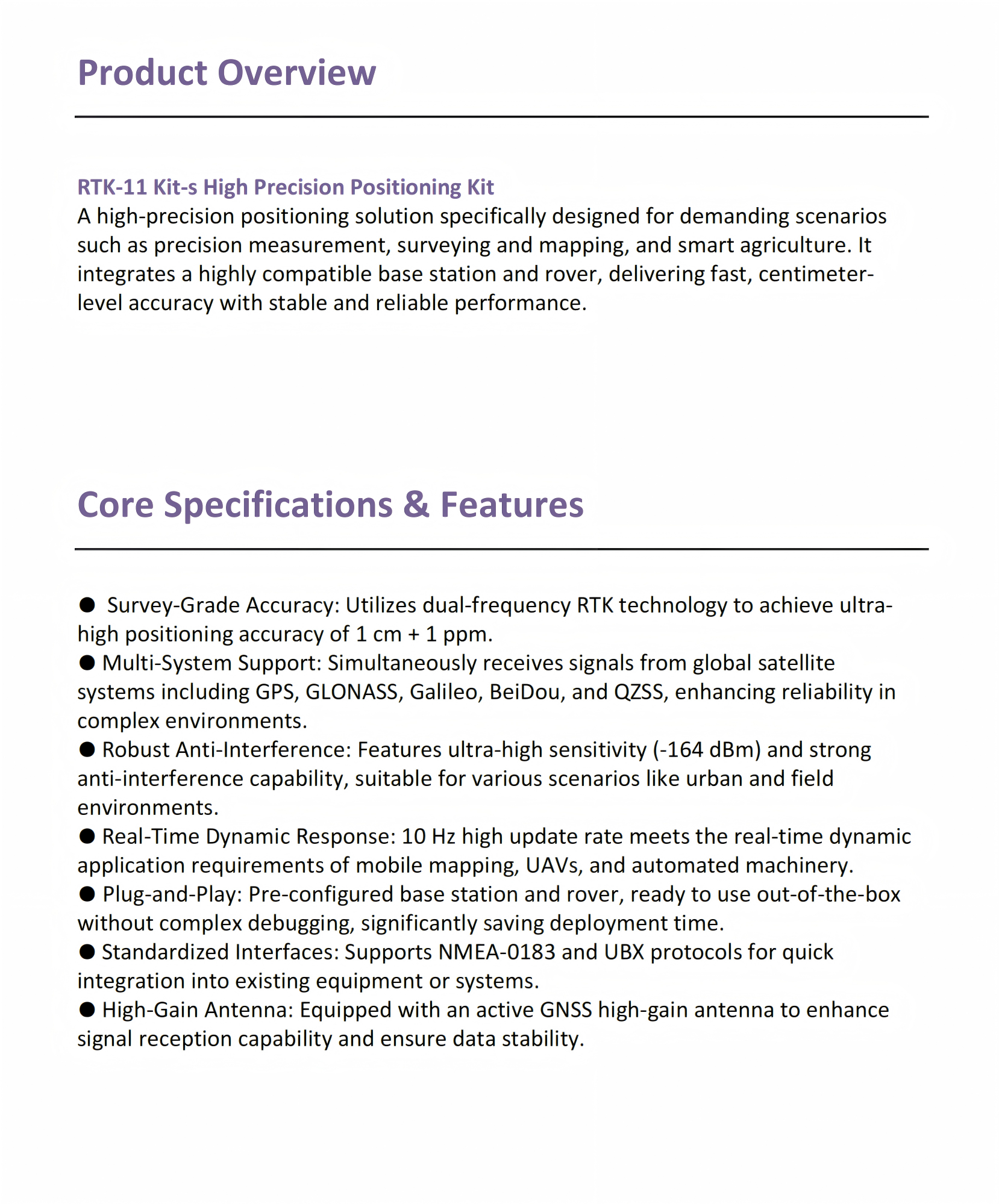

The RTK-11 Kit is a complete centimeter-level positioning system — base station plus rover — delivering 1 cm + 1 ppm RTK accuracy on L1/L5 with GPS, GLONASS, BeiDou, and Galileo.

- RTK accuracy: 1 cm + 1 ppm (CEP50, open sky)
- L1/L5 multi-band: GPS · GLONASS · BeiDou · Galileo
- 10 Hz update rate, −164 dBm tracking sensitivity
- Compact helix-antenna rover, USB-C powered base
- For survey, mapping, and precision agriculture UAVs

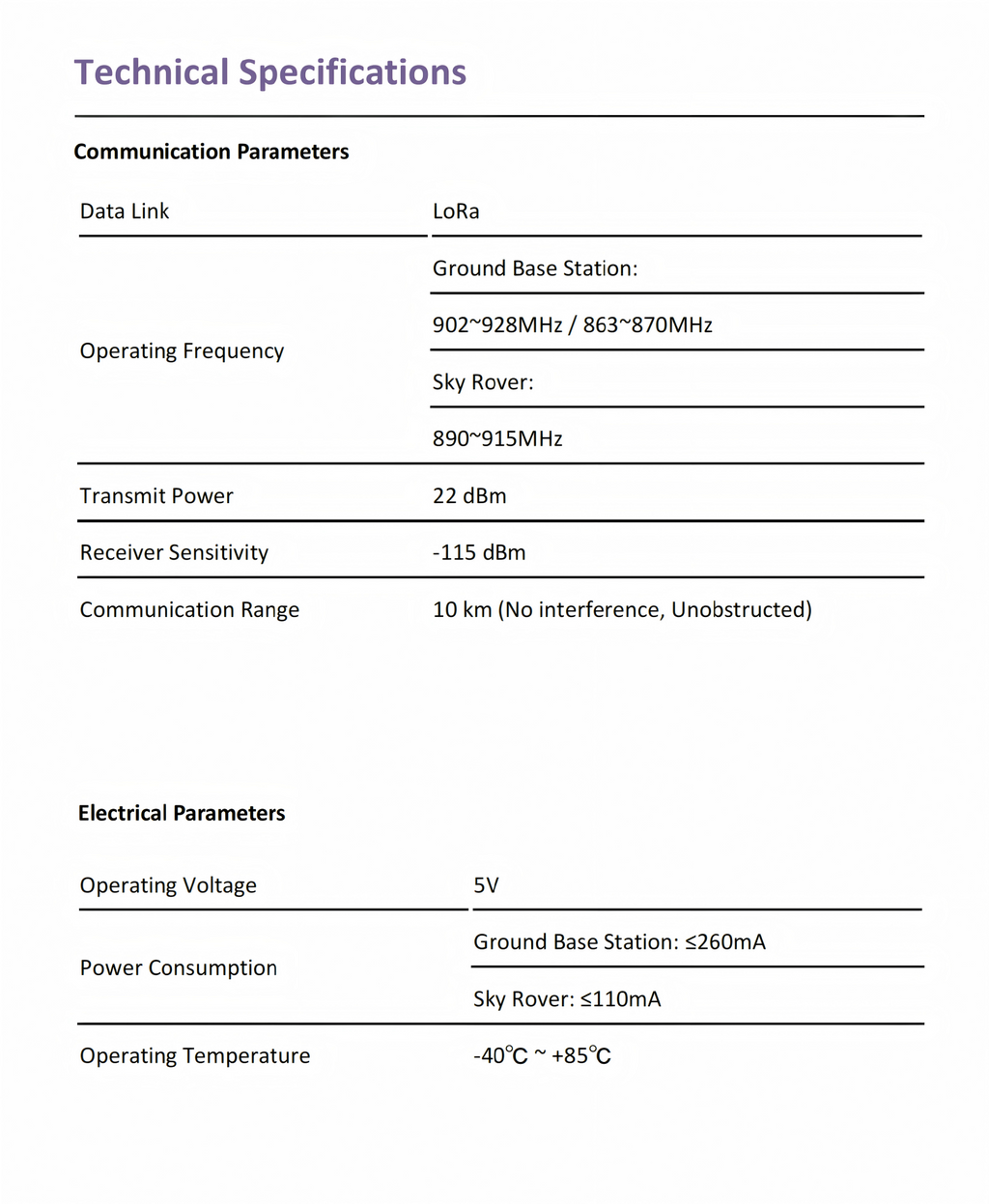

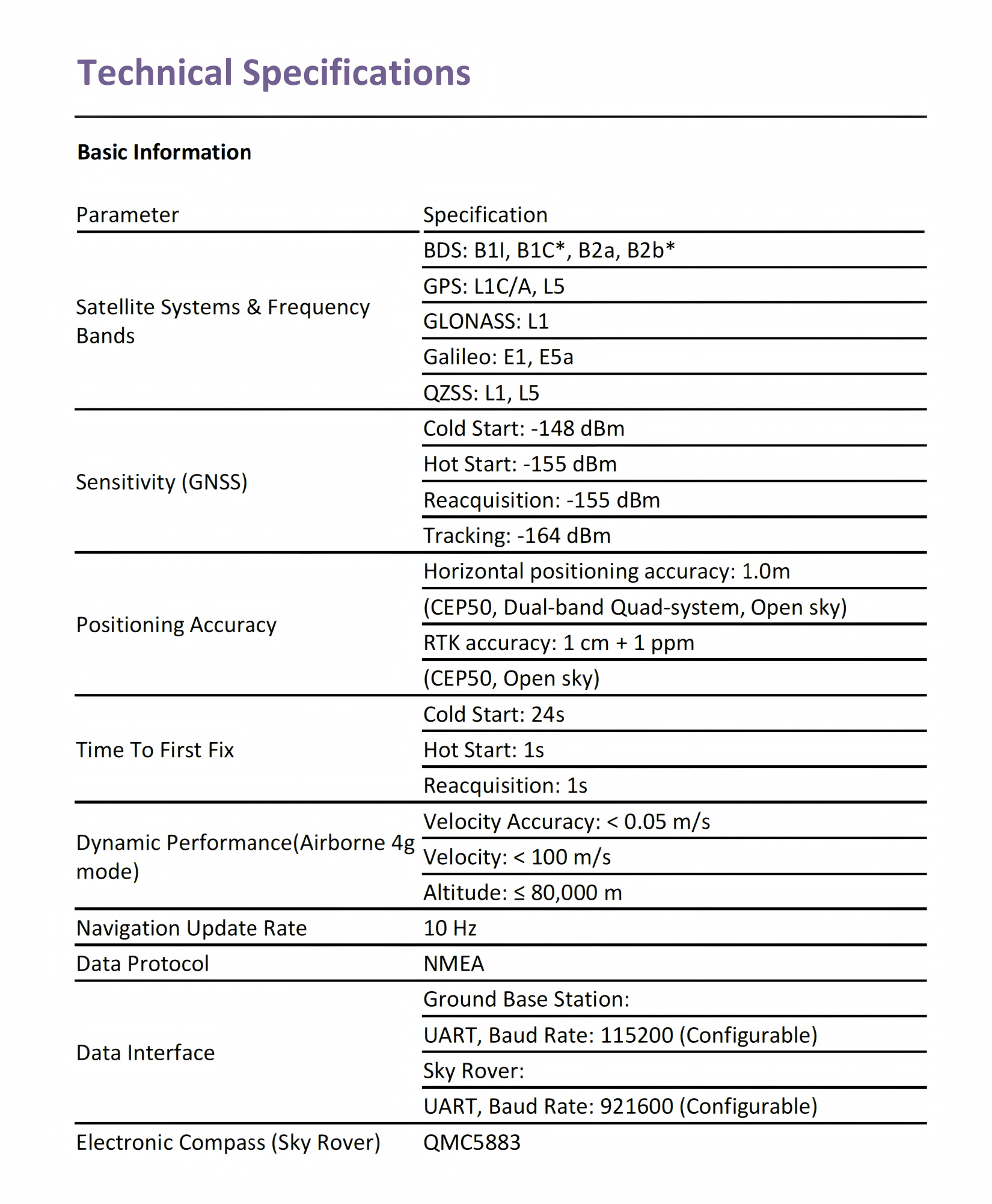

Key specs:
RTK accuracy: 1 cm + 1 ppm (CEP50, open sky) · single-point 1.0 m CEP
Constellations: GPS · GLONASS · BeiDou · Galileo (L1/L5)
Update rate: 10 Hz · Sensitivity: −164 dBm tracking

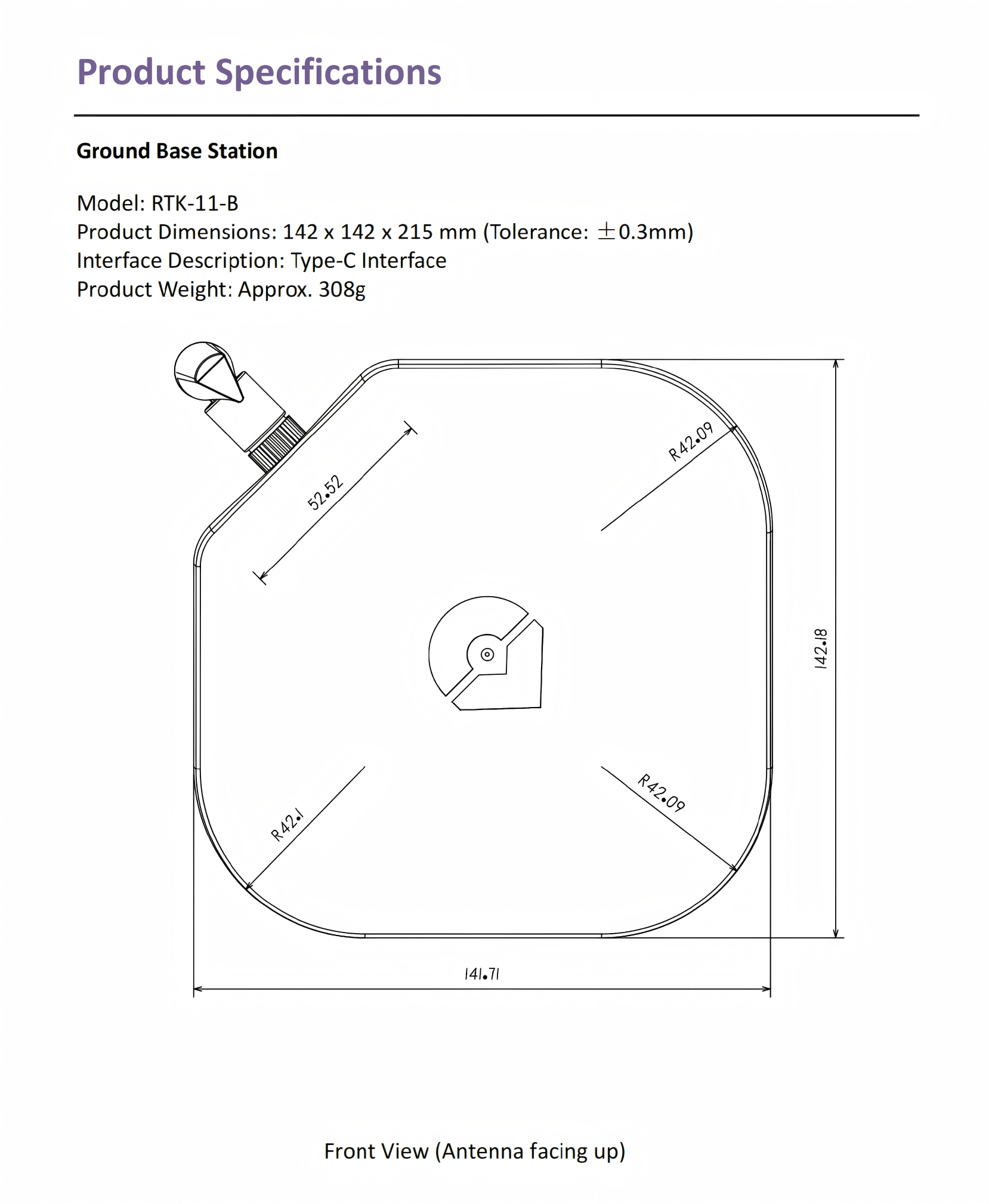

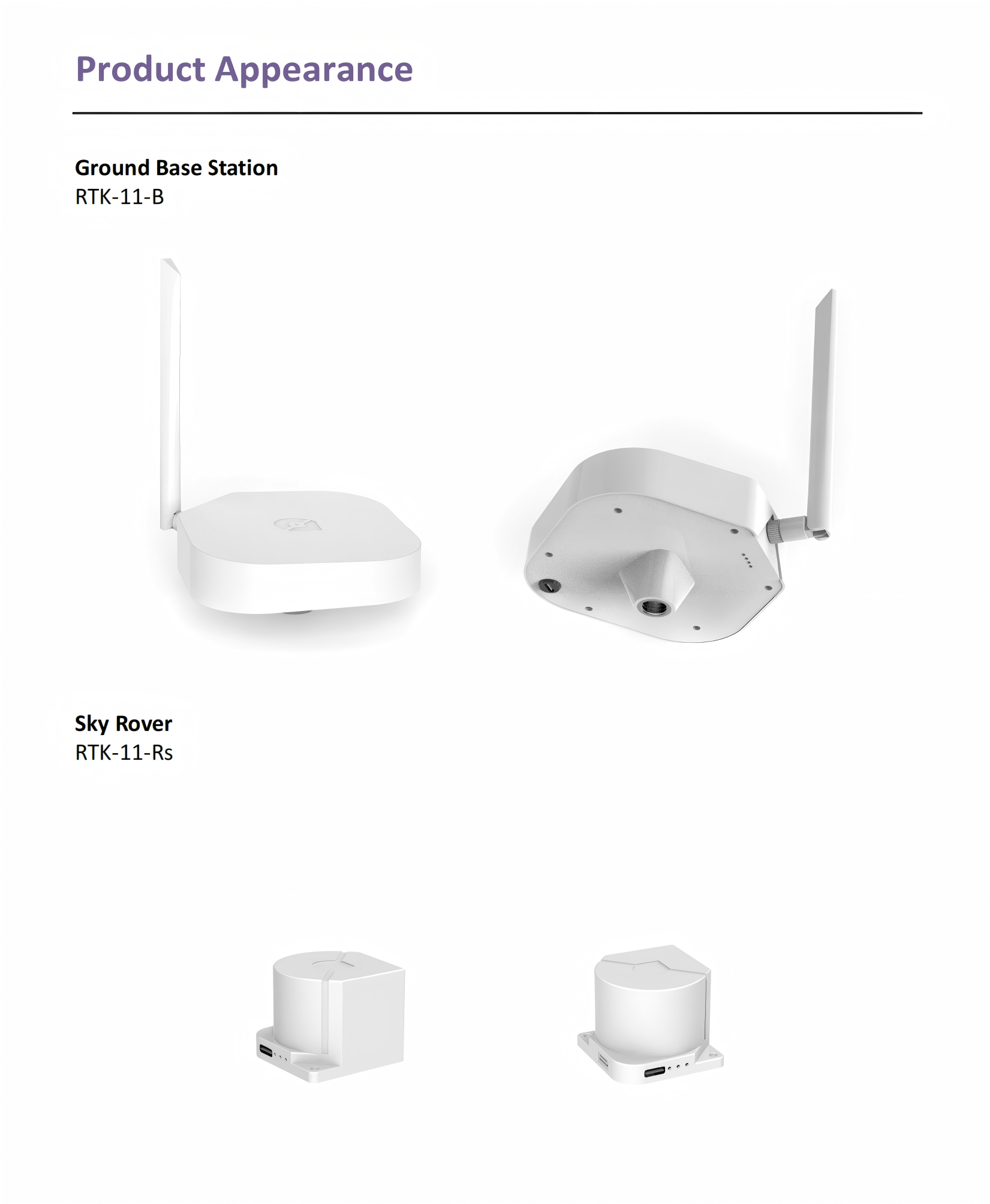

Base (RTK-11-B): 142 × 142 × 215 mm · ≈308 g · USB-C · ≤260 mA

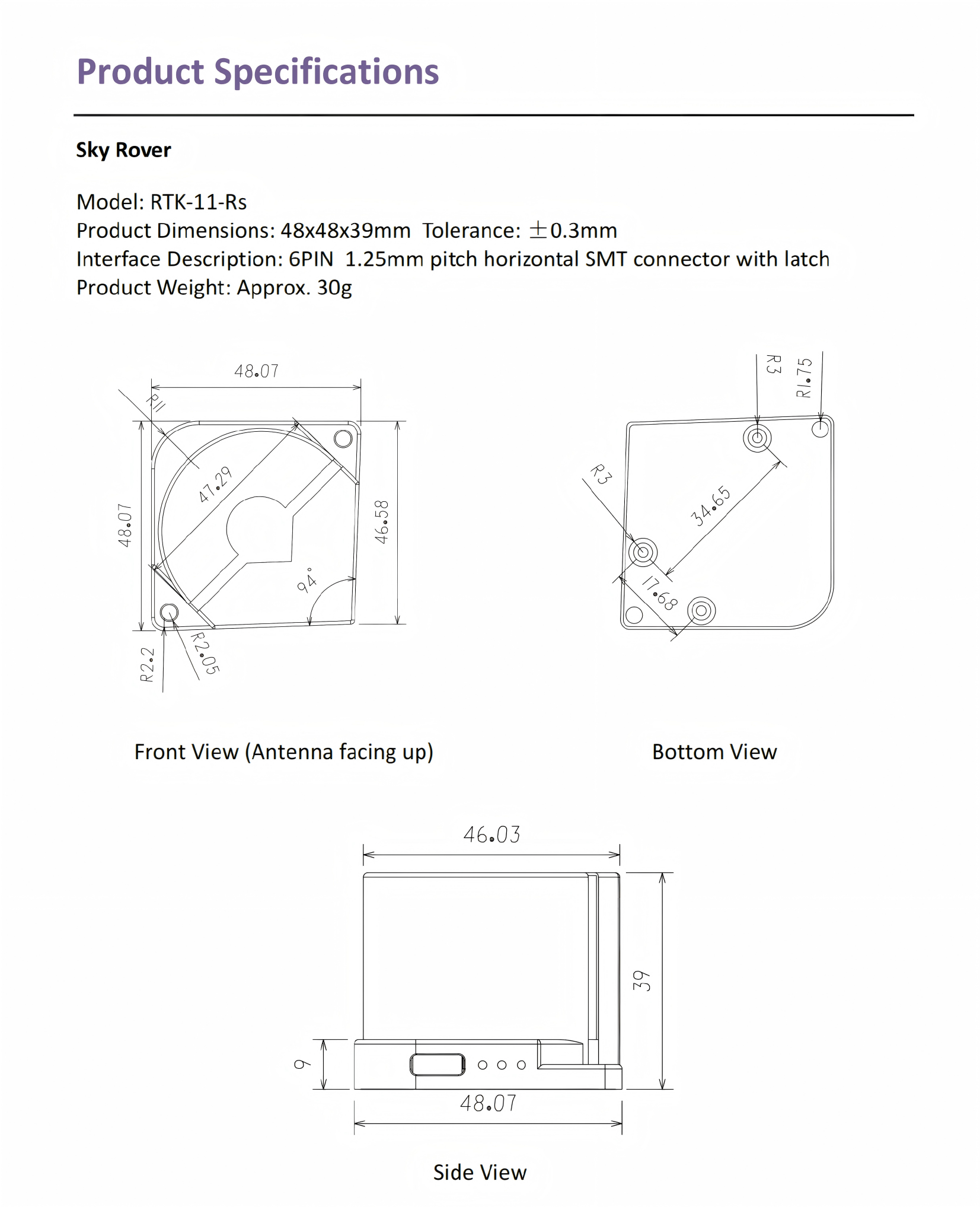

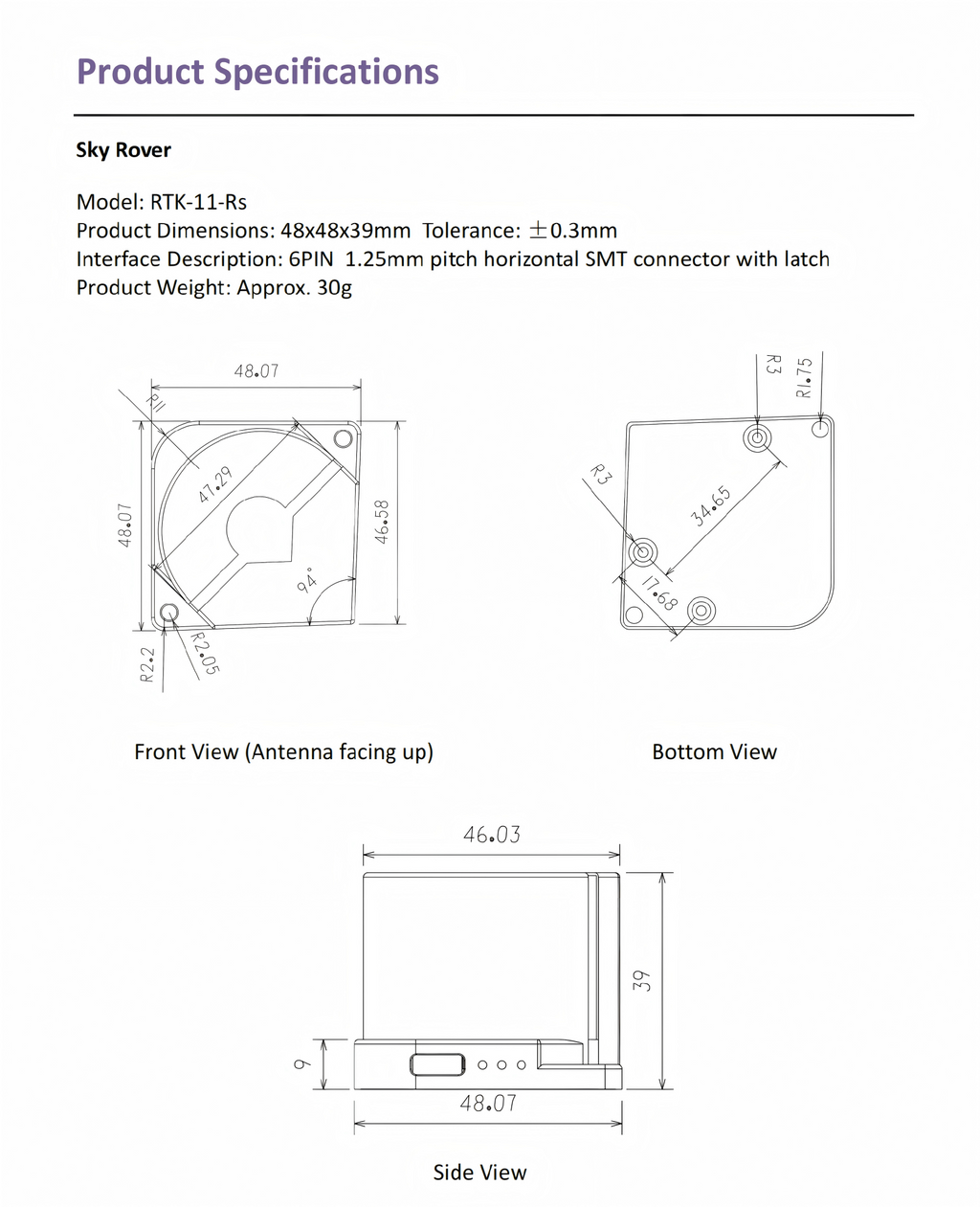

Rover (RTK-11-Rs): 48 × 48 × 39 mm · ≈30 g · ≤110 mA
Operating: −40°C to +85°C

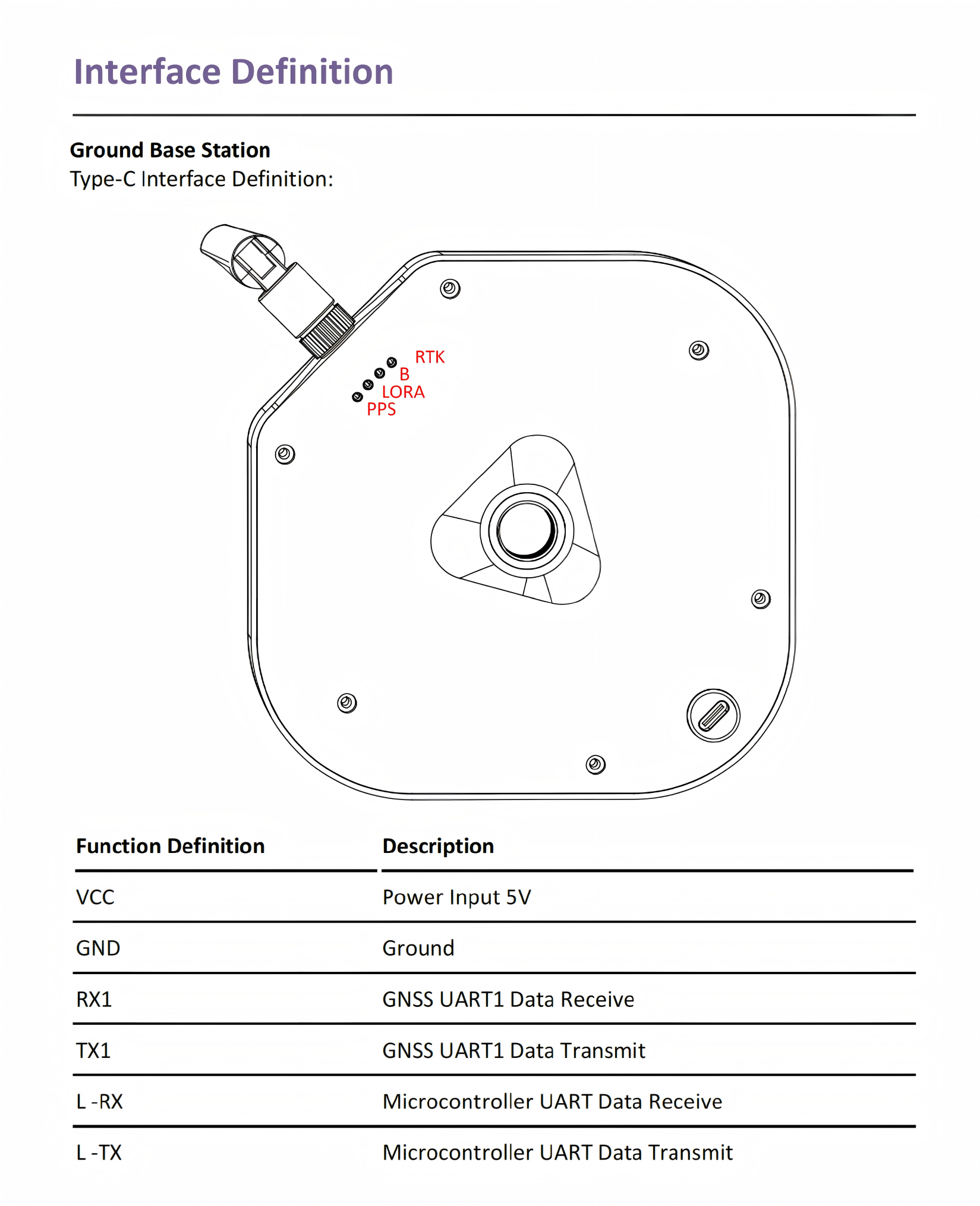

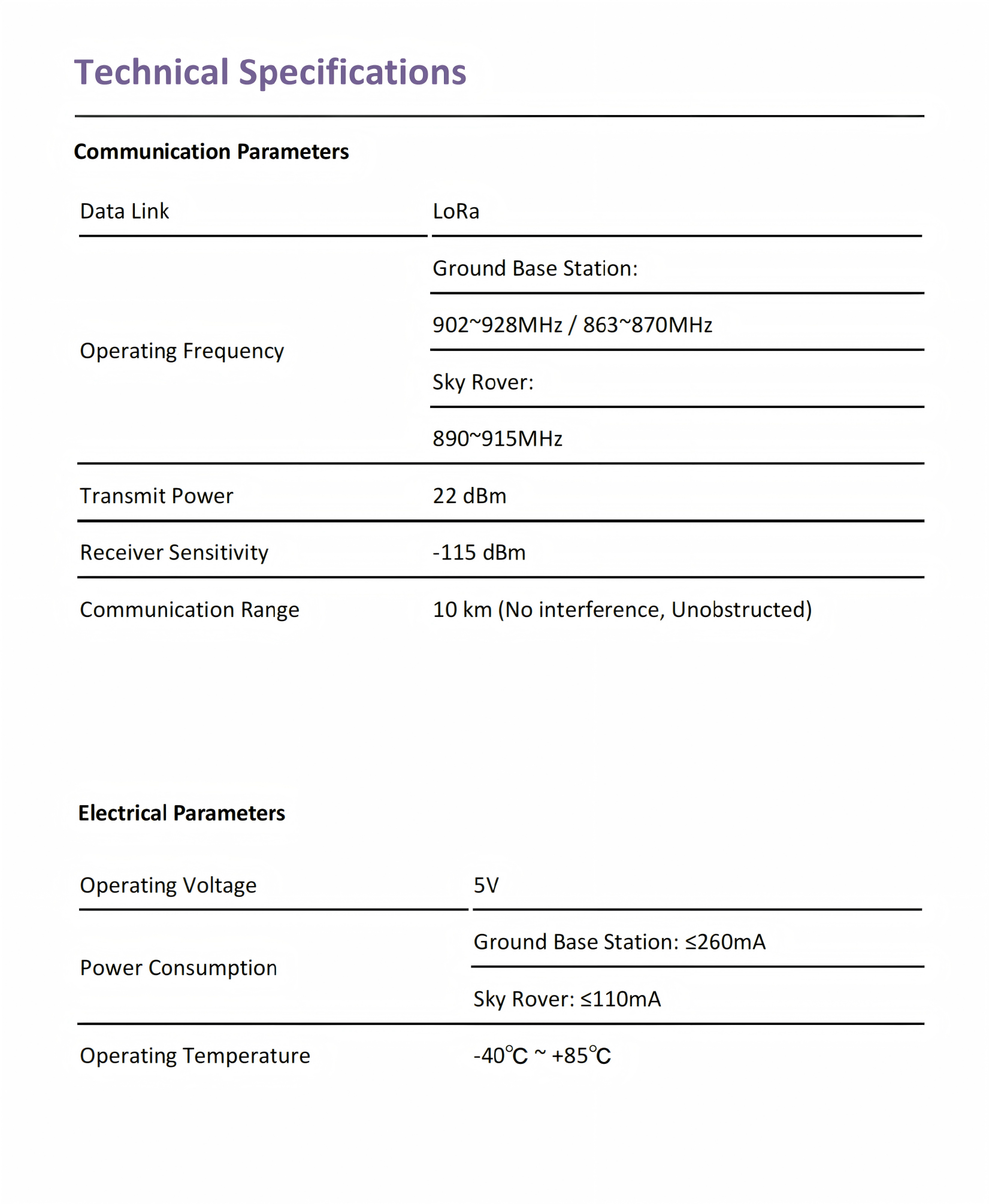

Full pinout, wiring, and electrical data: see the spec sheet on this page.
