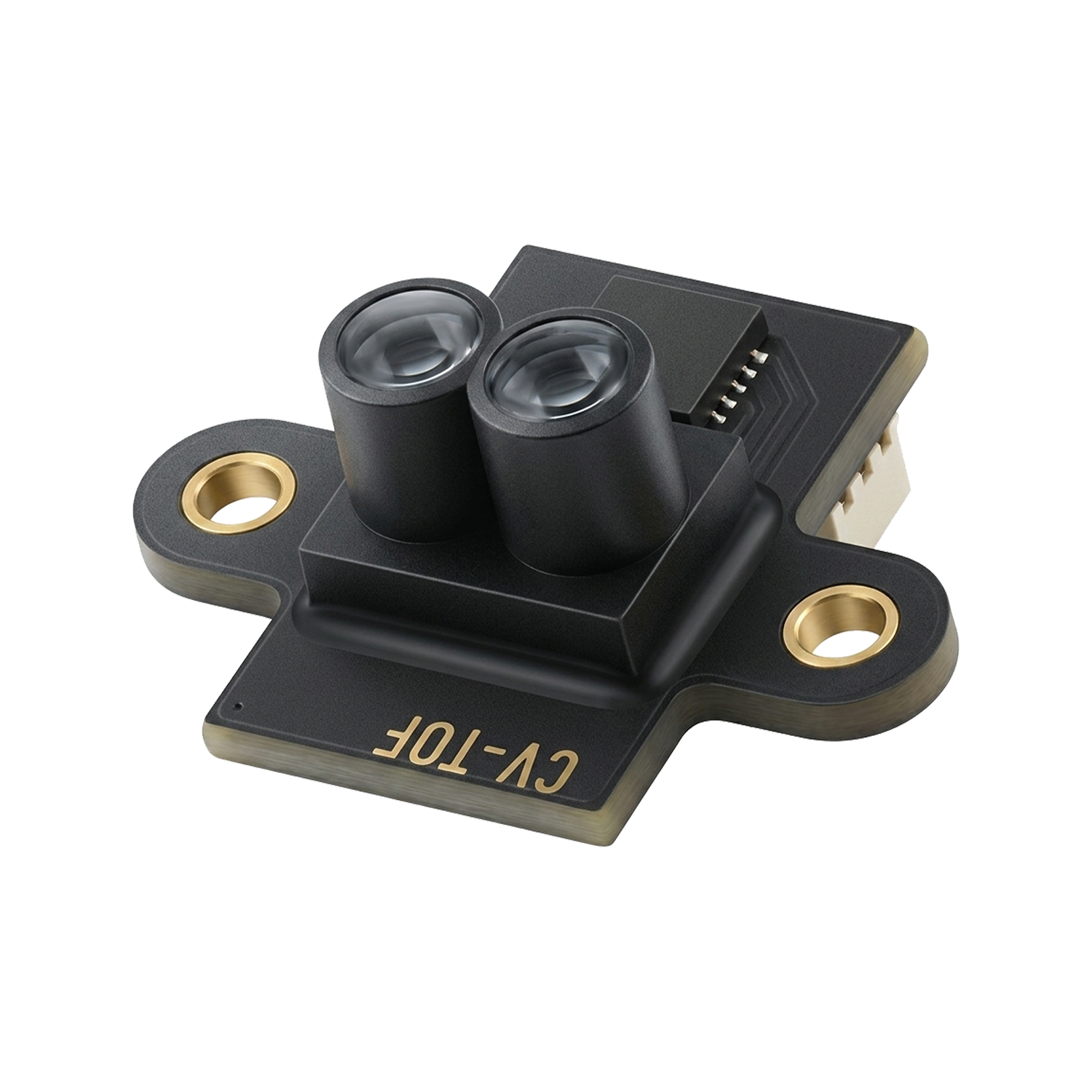

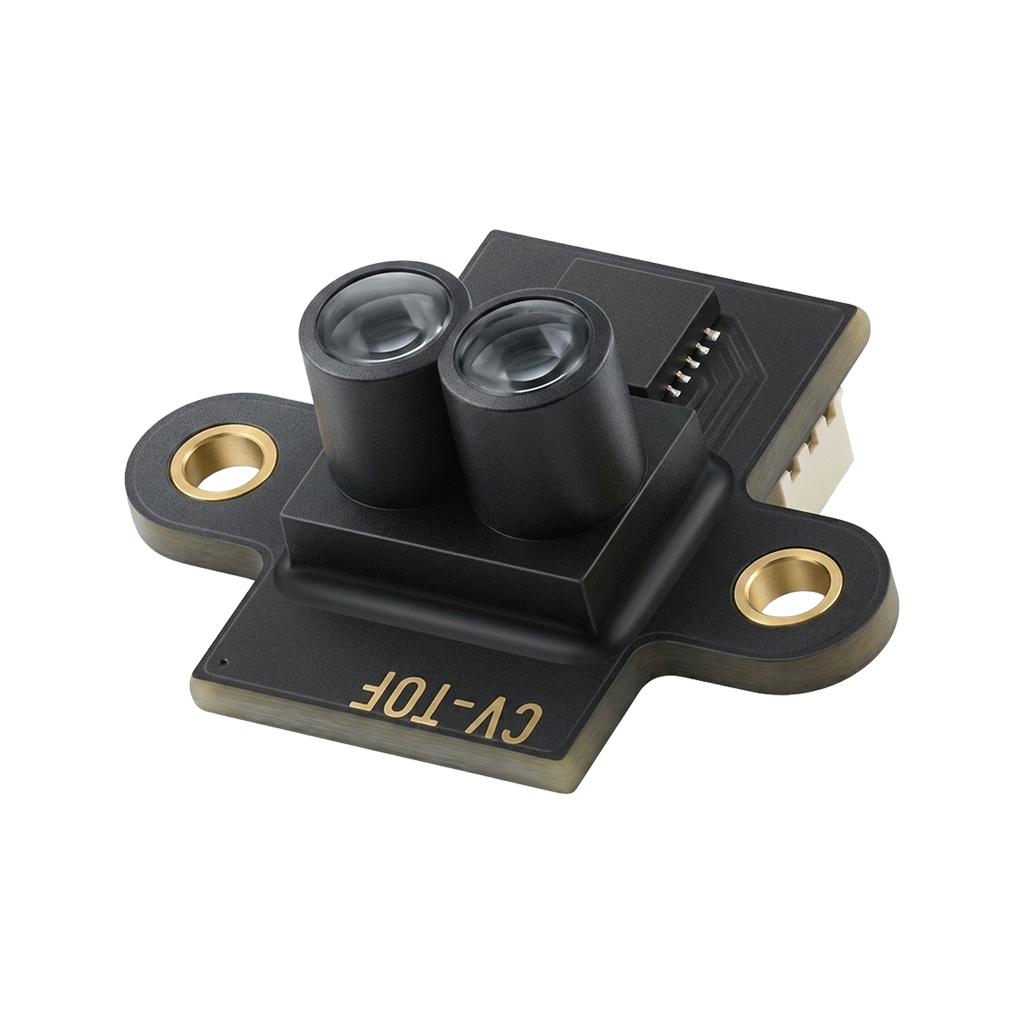

CV-080 Laser Ranging Sensor

The CV-080 is an ultra-light dToF ranging module — 0.6 g and 20 mm to 8 m range, made for builds where every gram counts, over UART or I²C.

- Range: 20–8000 mm
- Accuracy: ±3 cm under 1 m · ±3% beyond
- Only 0.6 g · 13 × 16 × 9.3 mm
- UART + I²C interfaces
- 3.5–5.5 V supply, ≤20 mA

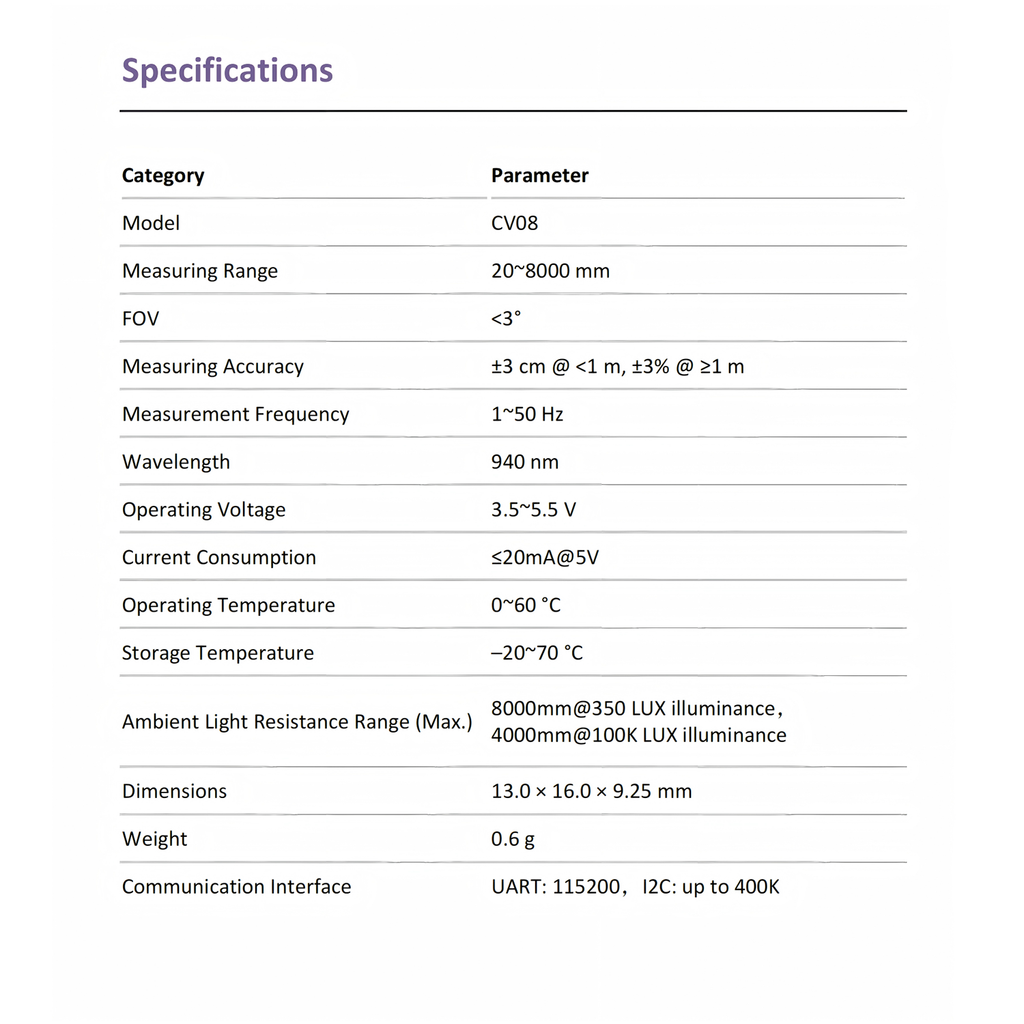

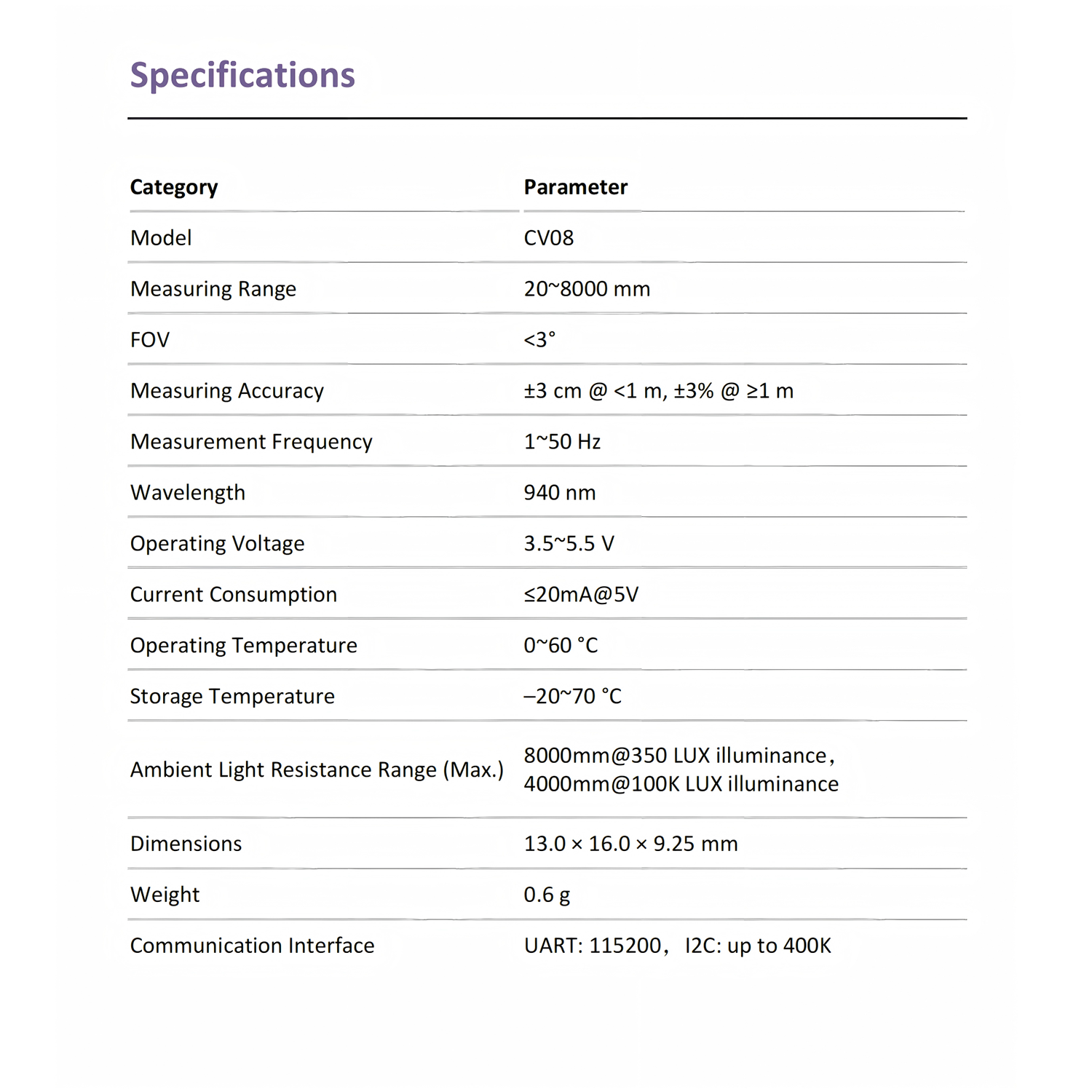

Key specs:
Technology: dToF
Range: 20–8000 mm
Accuracy: ±3 cm (<1 m) · ±3% (≥1 m)
Interfaces: UART / I²C
Supply: 3.5–5.5 V · ≤20 mA @ 5 V

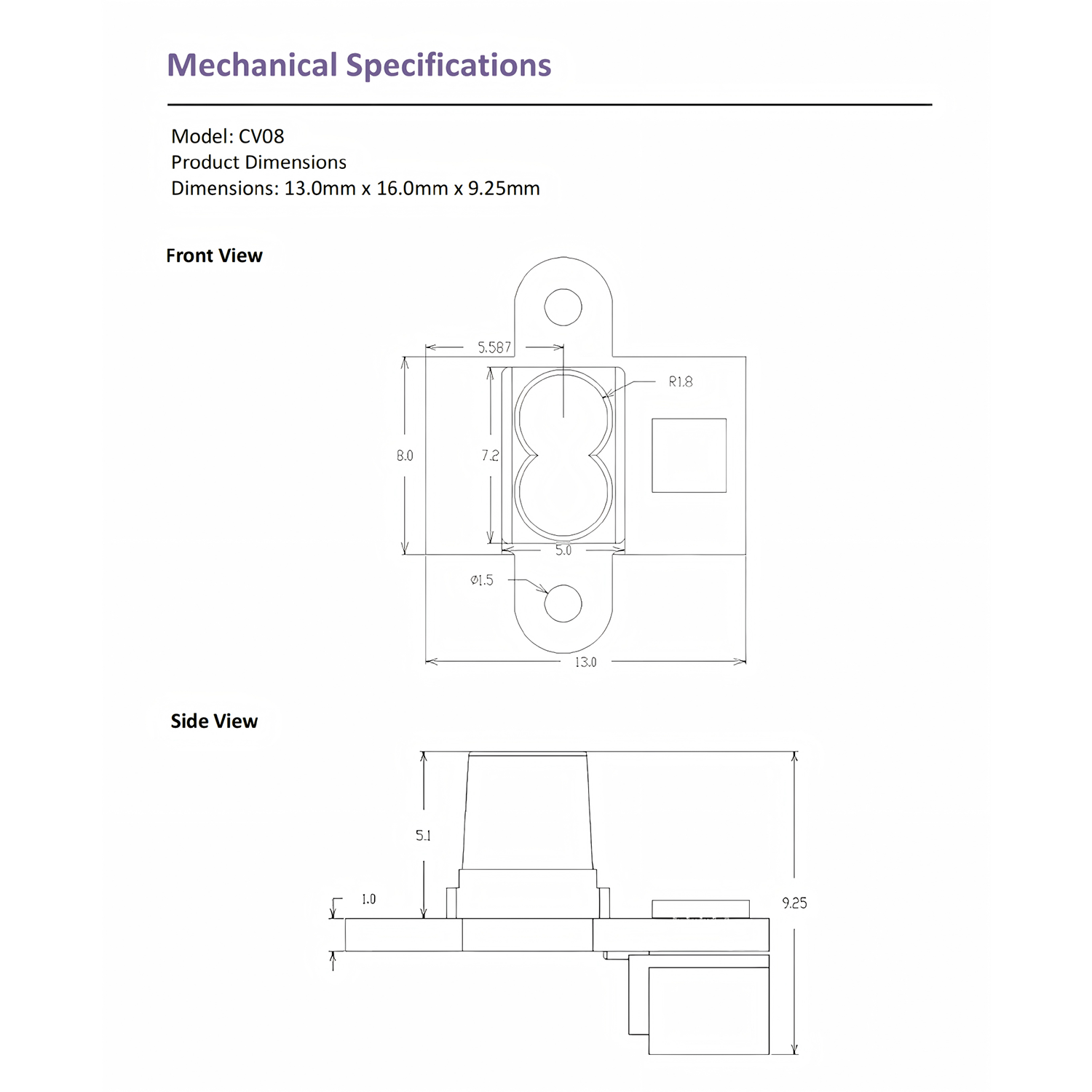

Size & weight: 13.0 × 16.0 × 9.25 mm · 0.6 g
Firmware: PX4 · INAV · ArduPilot

In the box:
1× CV-080 ranging module
1× SH1.0-4P cable (155 mm)

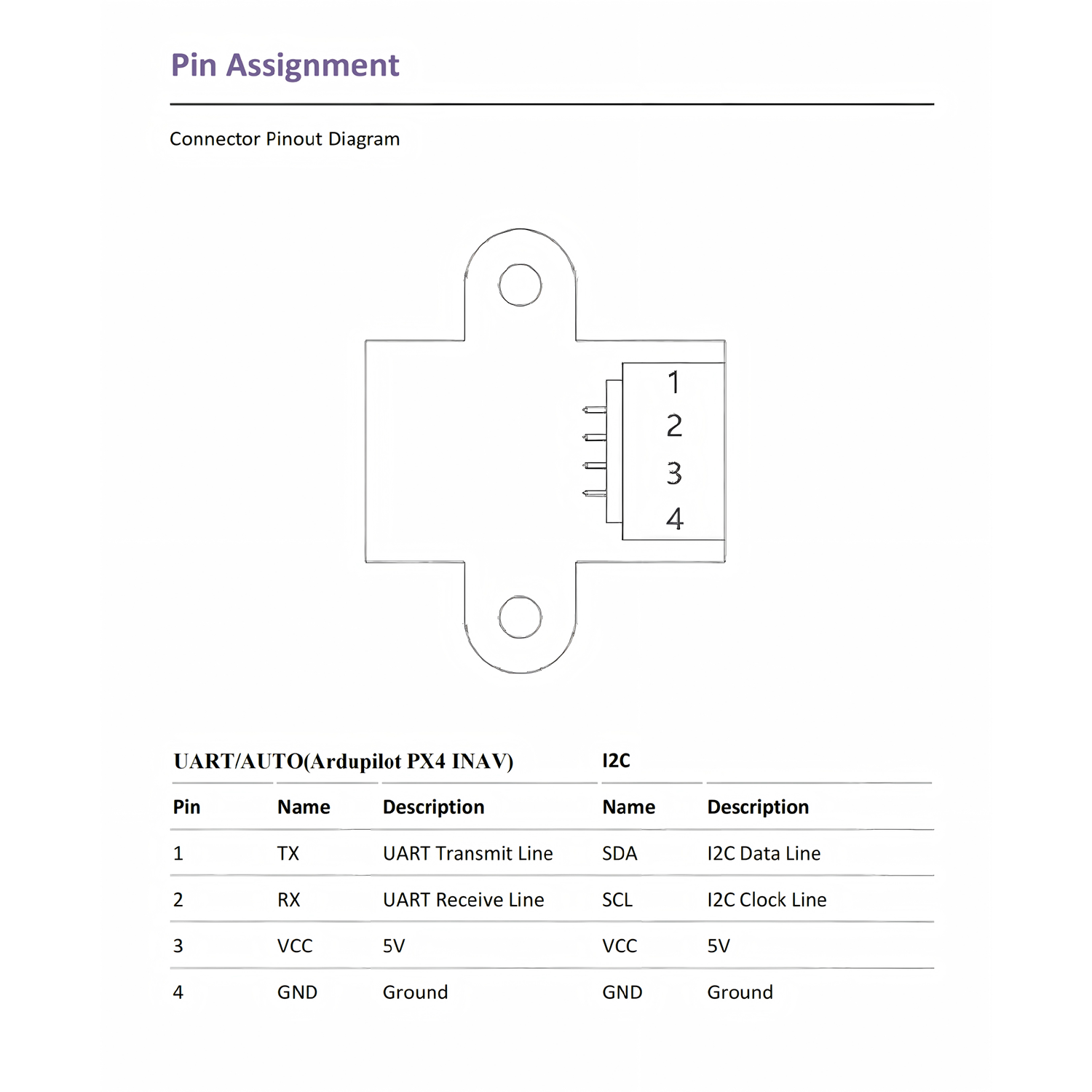

Full pinout, wiring, and electrical data: see the spec sheet on this page.
