F405 NC Flight Controller

F405 NC Flight Controller

$42.99
Skip to product information
F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
  • F405 NC Flight Controller
F405 NC Flight Controller

F405 NC Flight Controller

$42.99

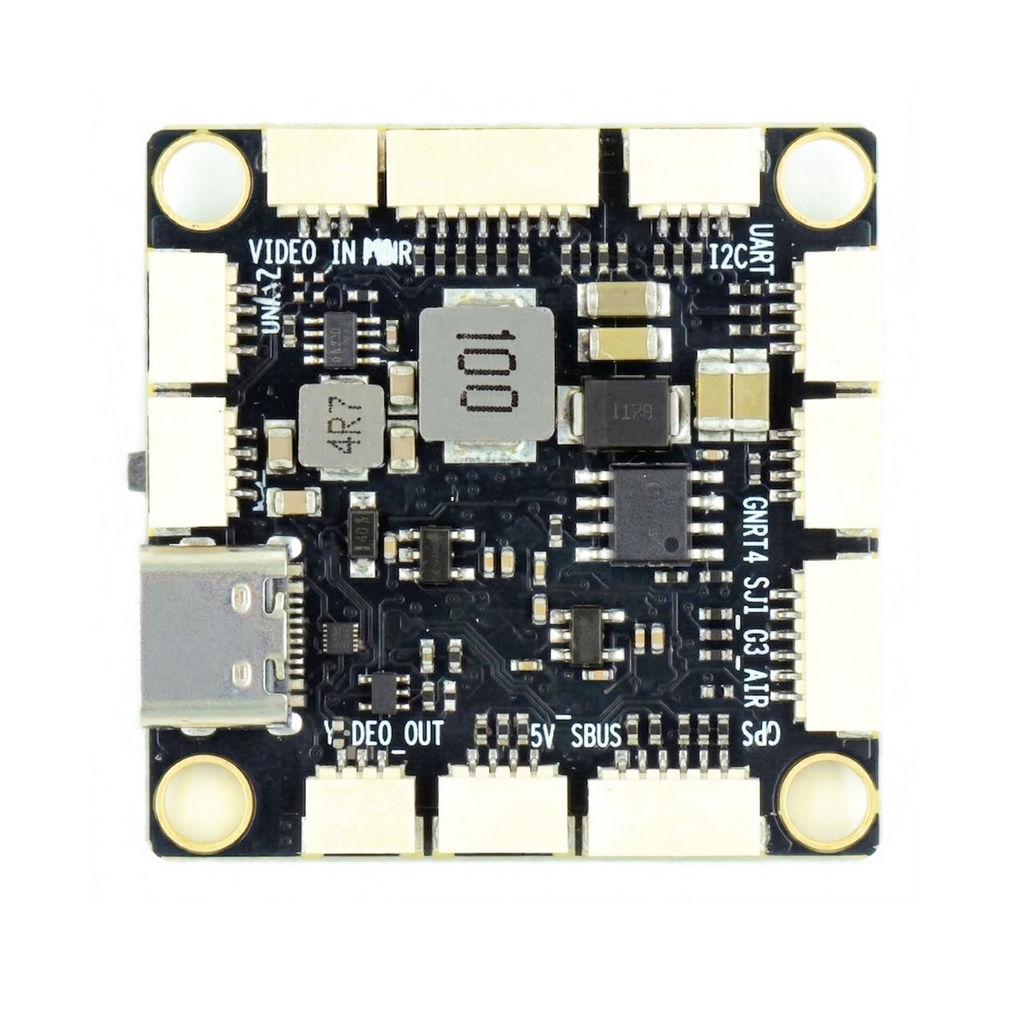

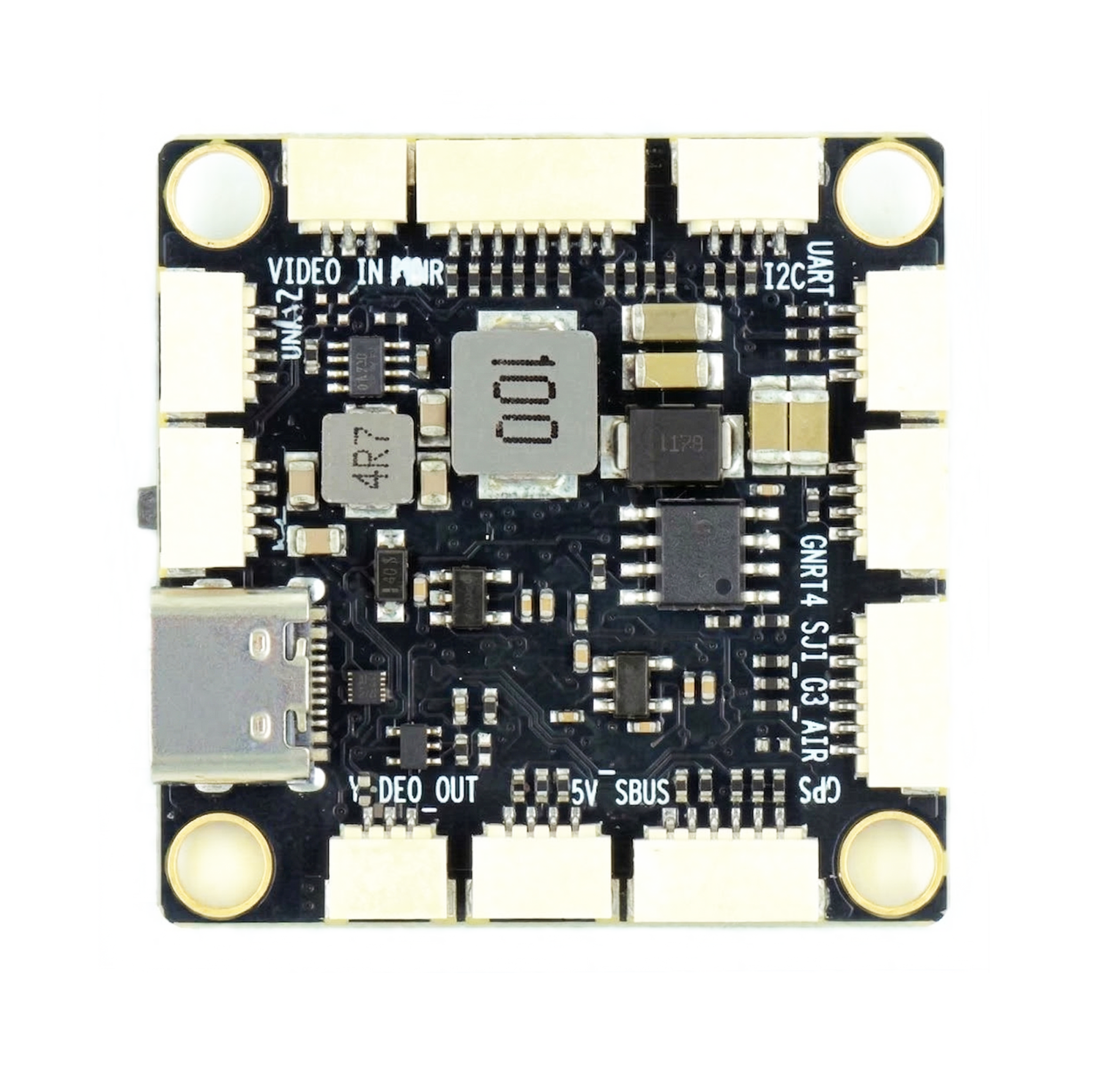

The CORVON F405-NC is a 30×30 flight controller built around the Bosch BMI088 — vibration-tolerant attitude sensing for FPV and long-range builds at an accessible price.

- Bosch BMI088 6-axis IMU
- SPL06 / DPS310 barometer
- 6 UART ports, 10 PWM outputs
- Dual BEC rails: 5V 3A + 9V 3A
- Wide 2S–10S input range

Key specs:

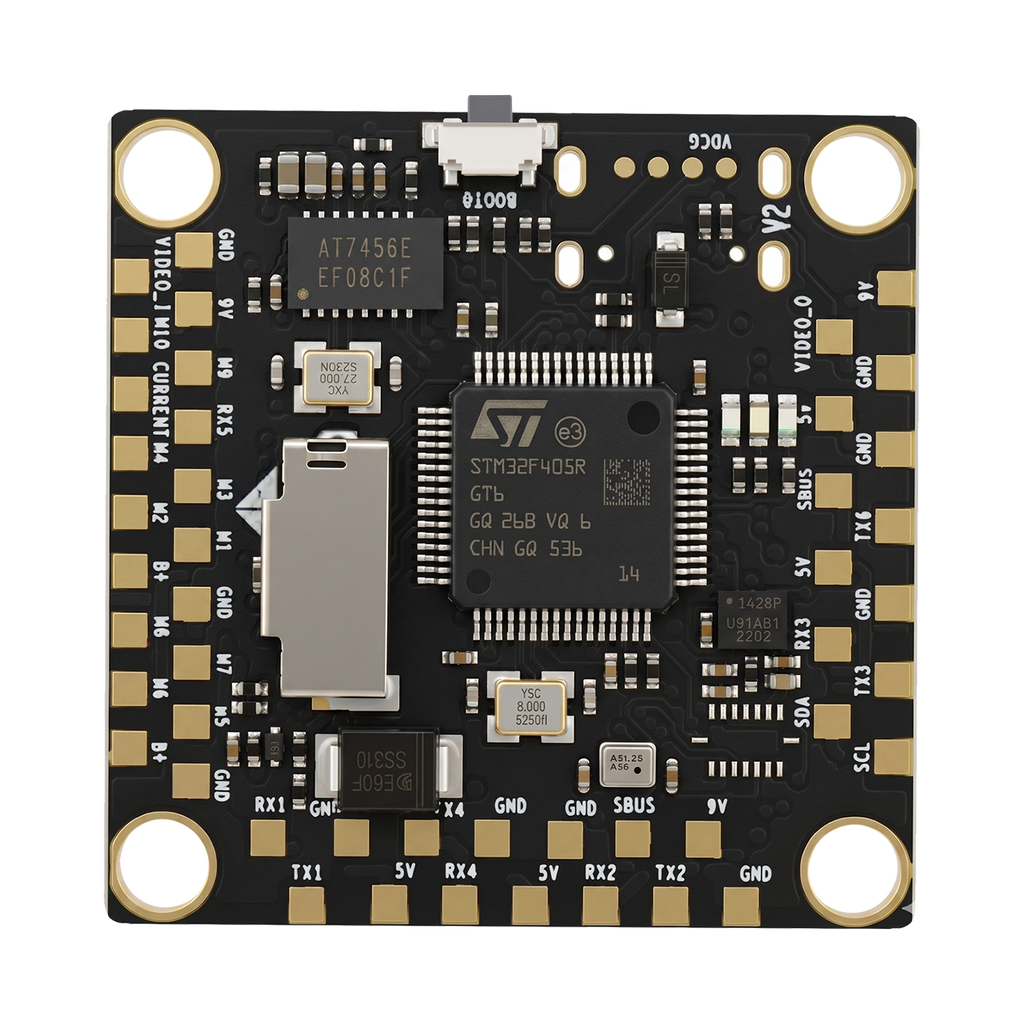

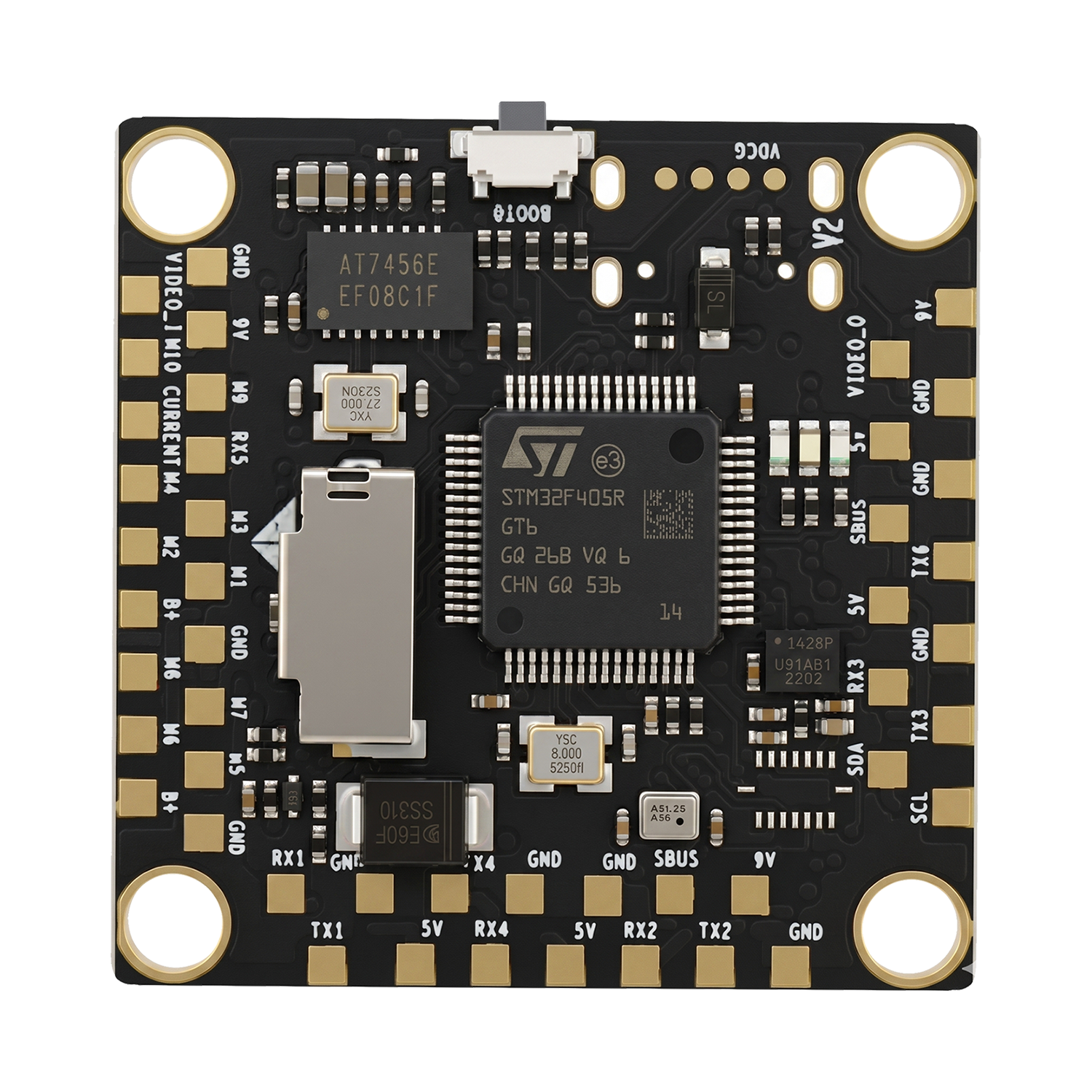

MCU: STM32F405RGT6, Cortex-M4 @ 168 MHz (1 MB flash)
IMU: Bosch BMI088
Barometer: SPL06 / DPS310
UART: 6 · PWM: 10
BEC: 5V 3A · 9V 3A
Power: 2S–10S LiPo

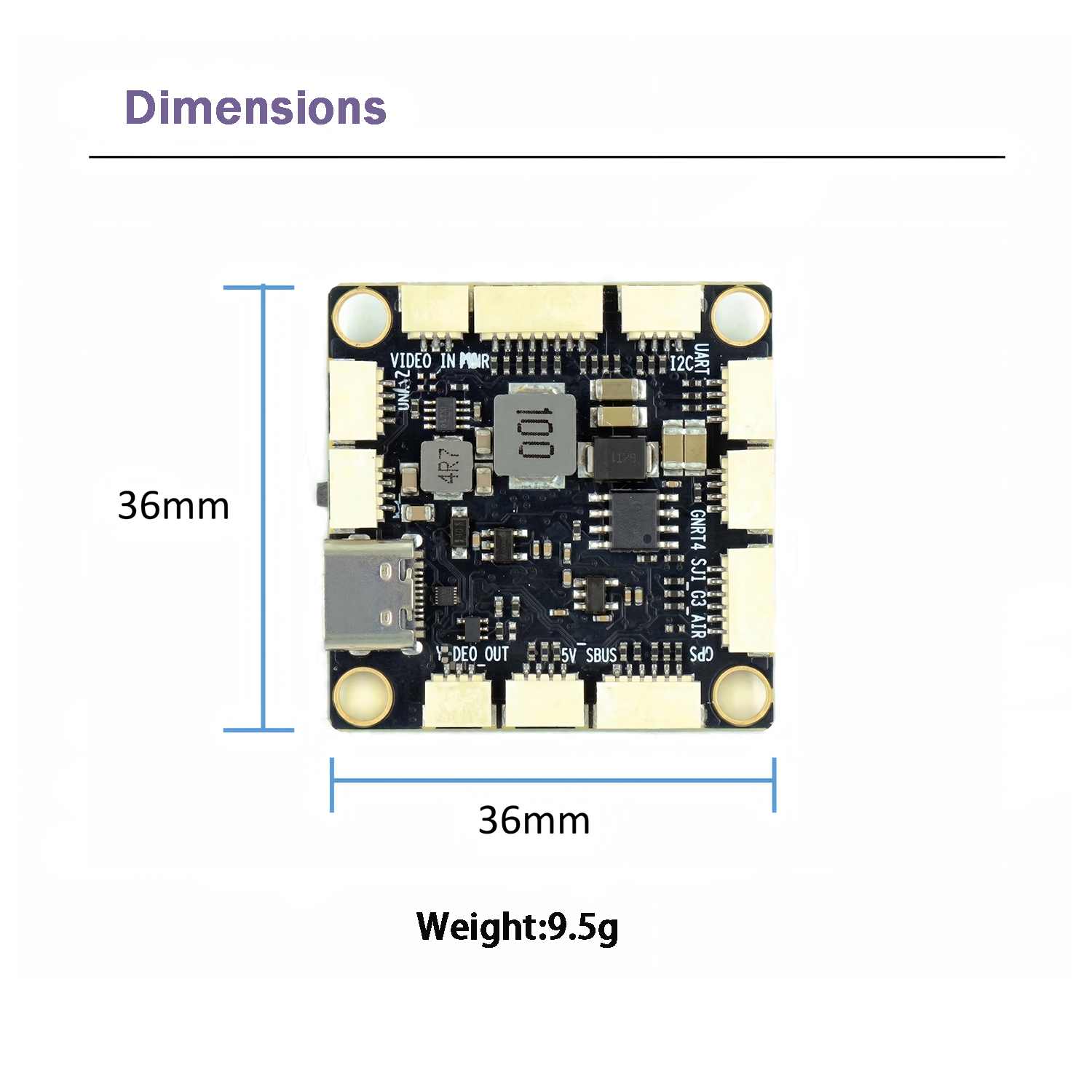

Size & weight: 36 × 36 × 7.4 mm · 30.5 × 30.5 mm M4 · 9.5 g
Firmware: INAV · Betaflight · ArduPilot

In the box:
1× F405-NC flight controller
2× SH1.0-8P cable (48 mm)
1× SH1.0-6P cable (160 mm)
4× SH1.0-4P cable (155 mm)
1× SH1.0-3P cable (85 mm)
1× SH1.0-3P cable (105 mm)
5× M3 hex socket screw
5× M3 hex nut
5× M3 rubber standoff (blue)
5× rubber O-ring pad (black)

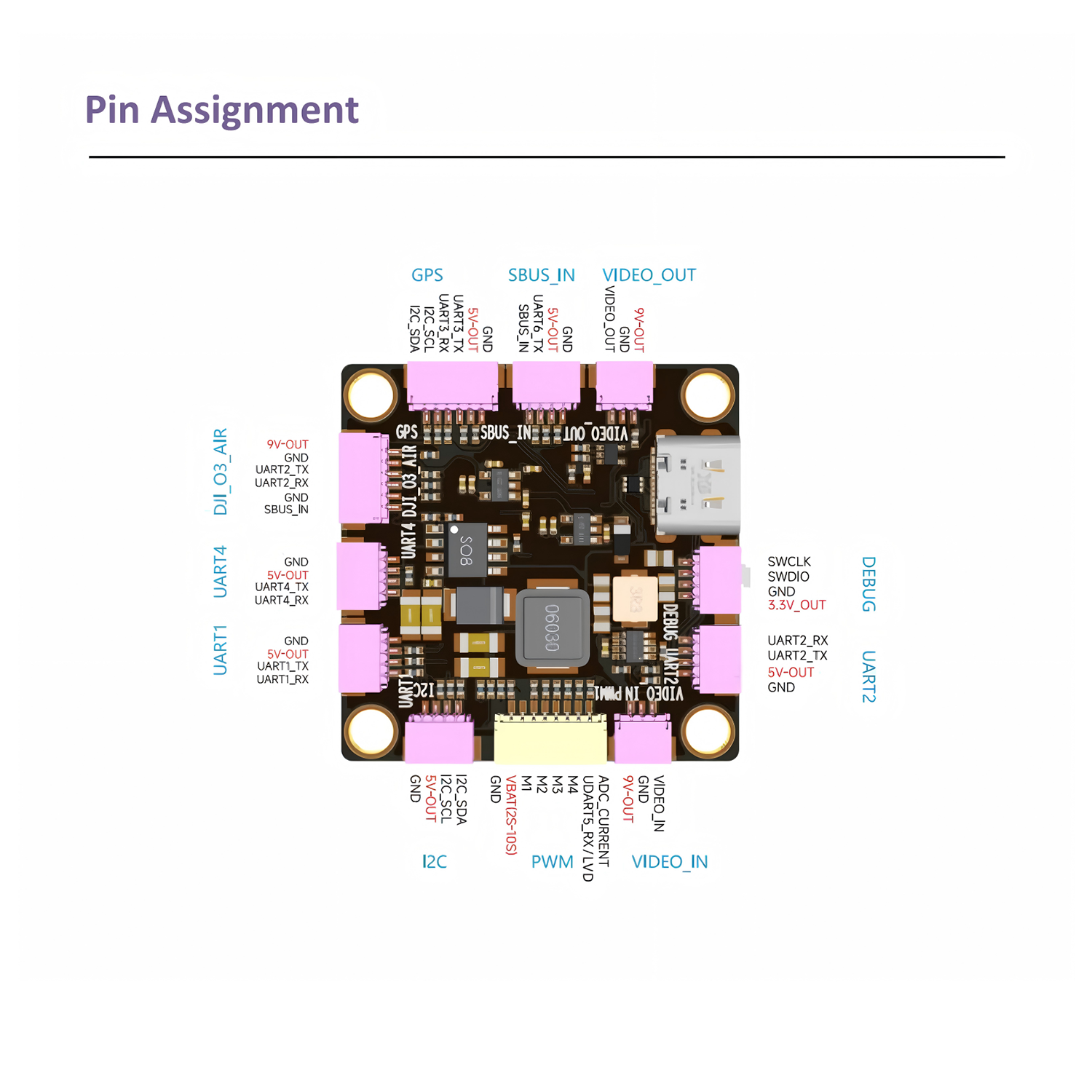

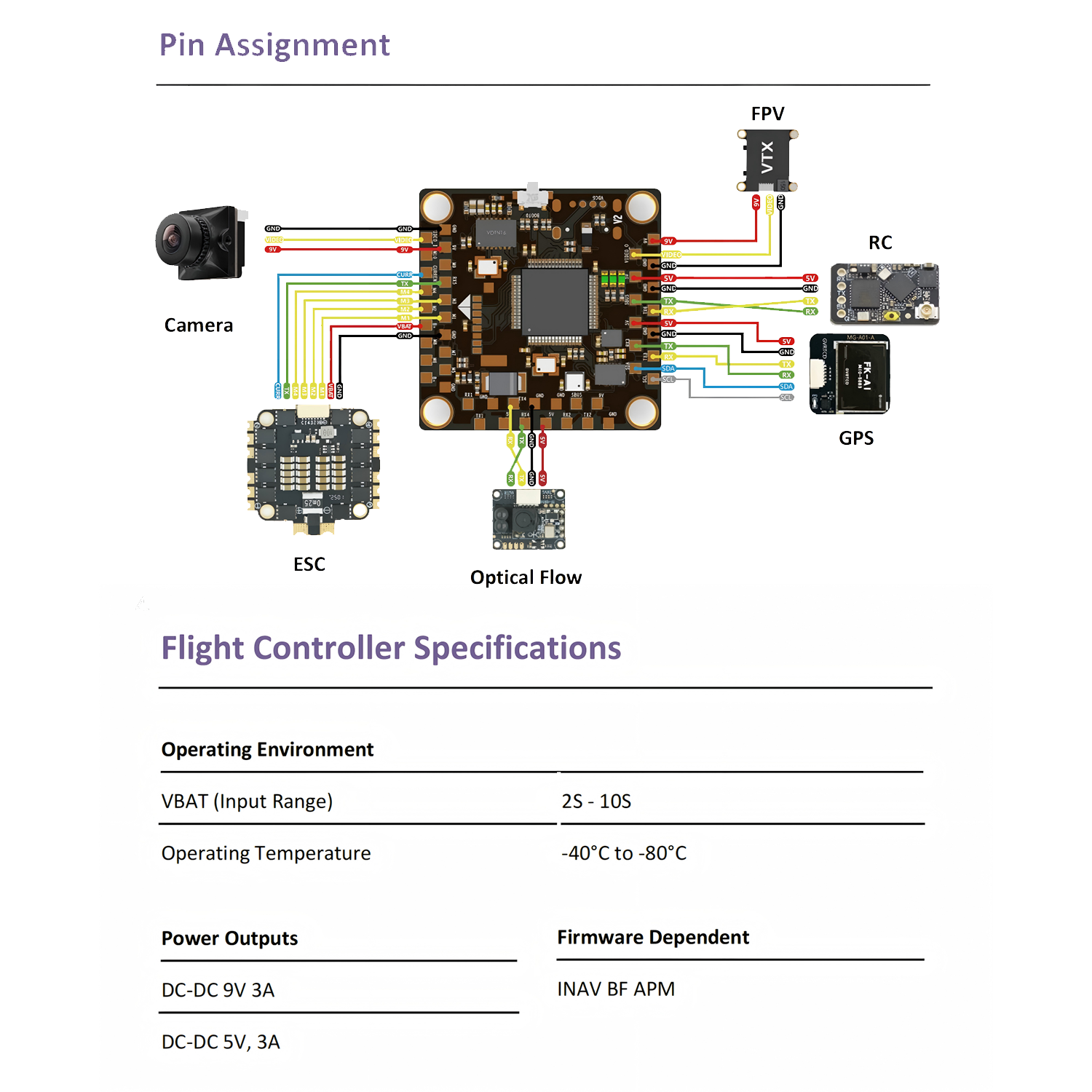

Full pinout, wiring, and electrical data: see the spec sheet on this page.
