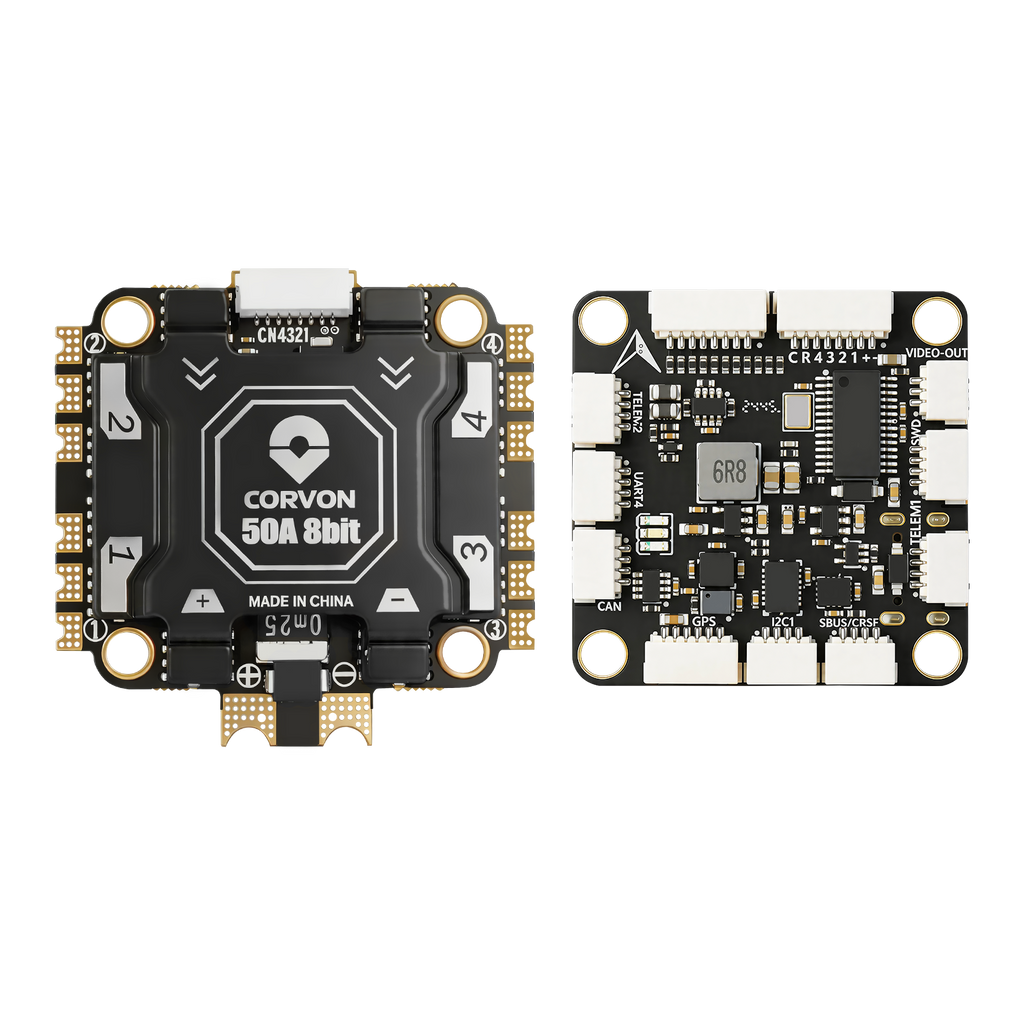

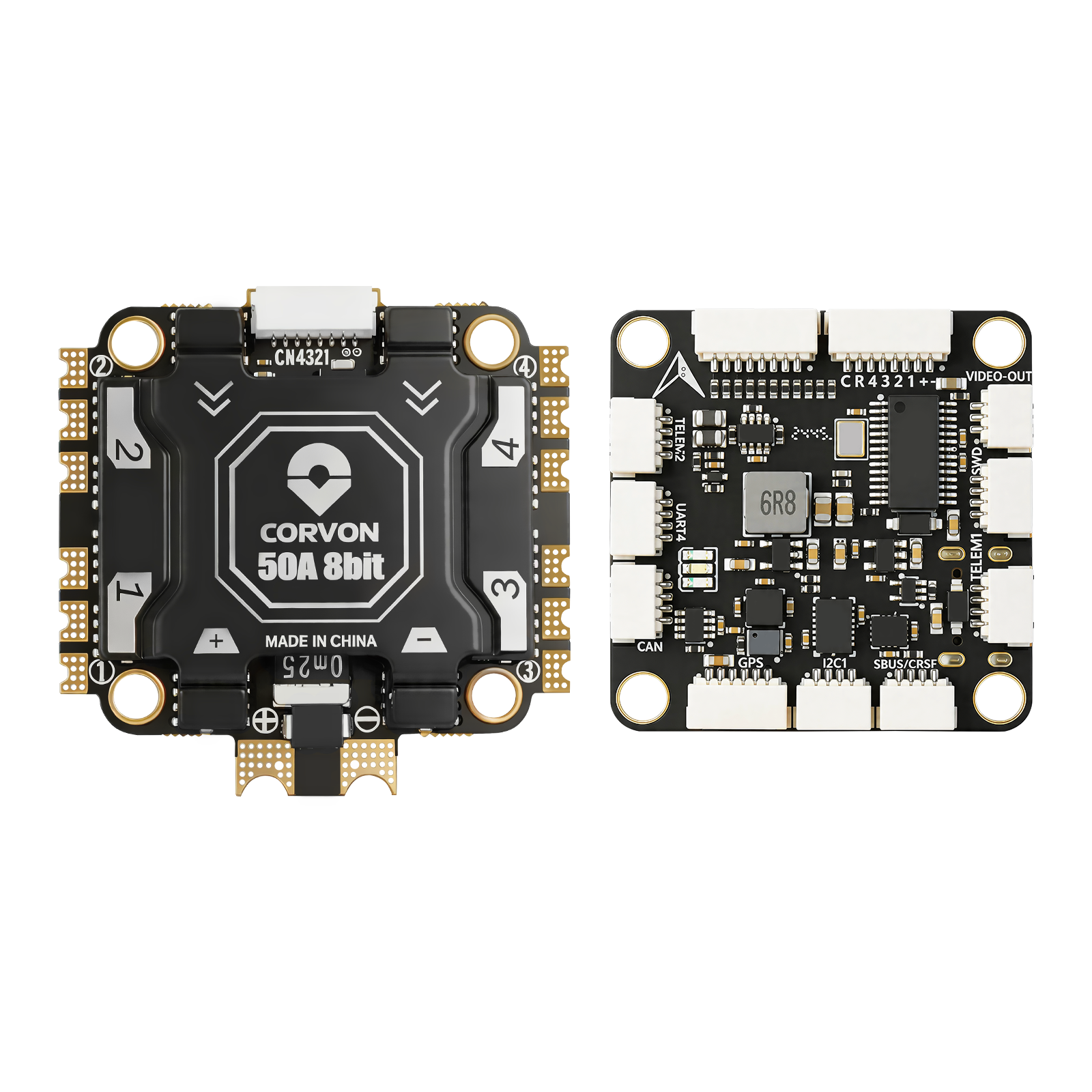

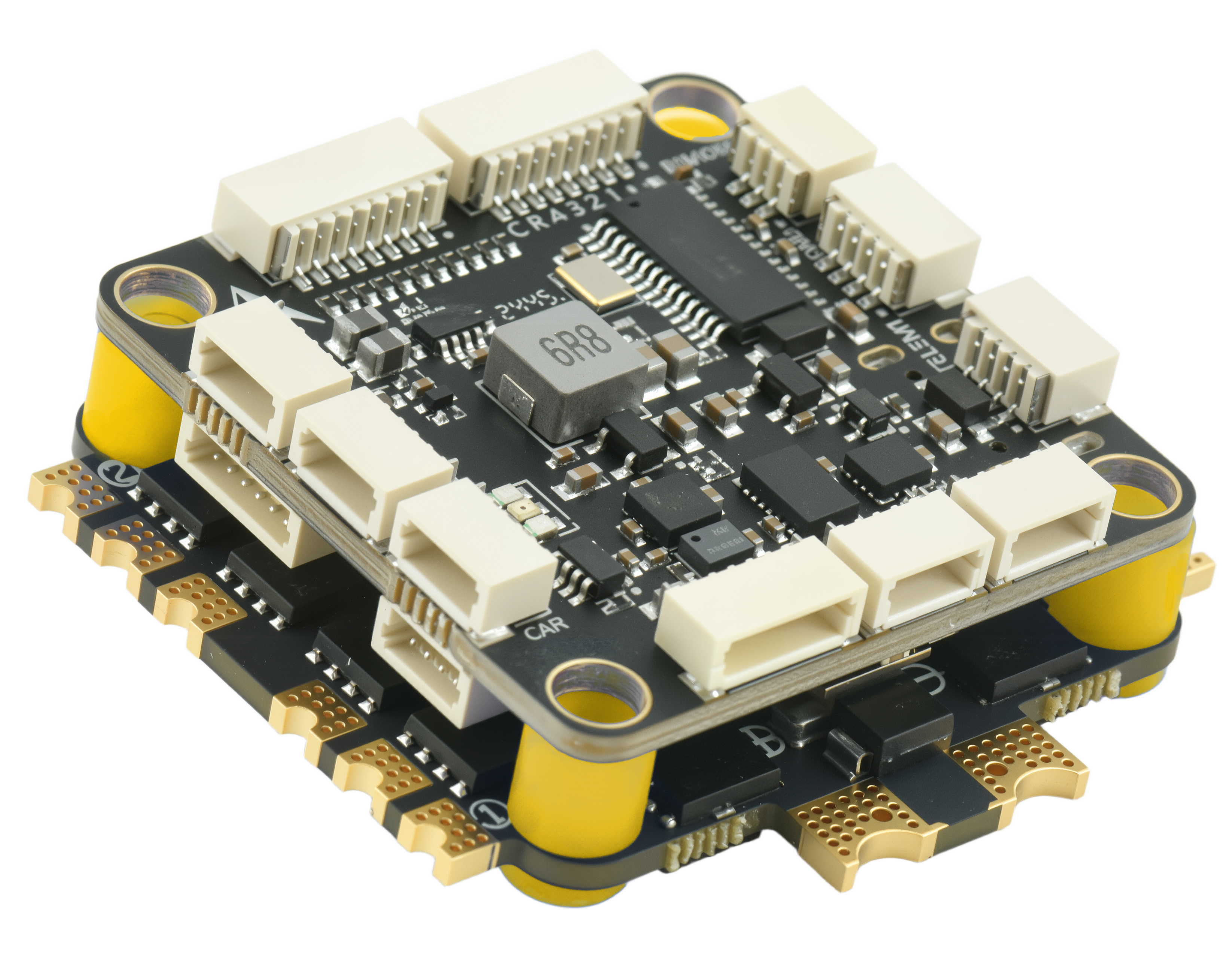

H743 Flight Controller with 50A 8 bit Stack

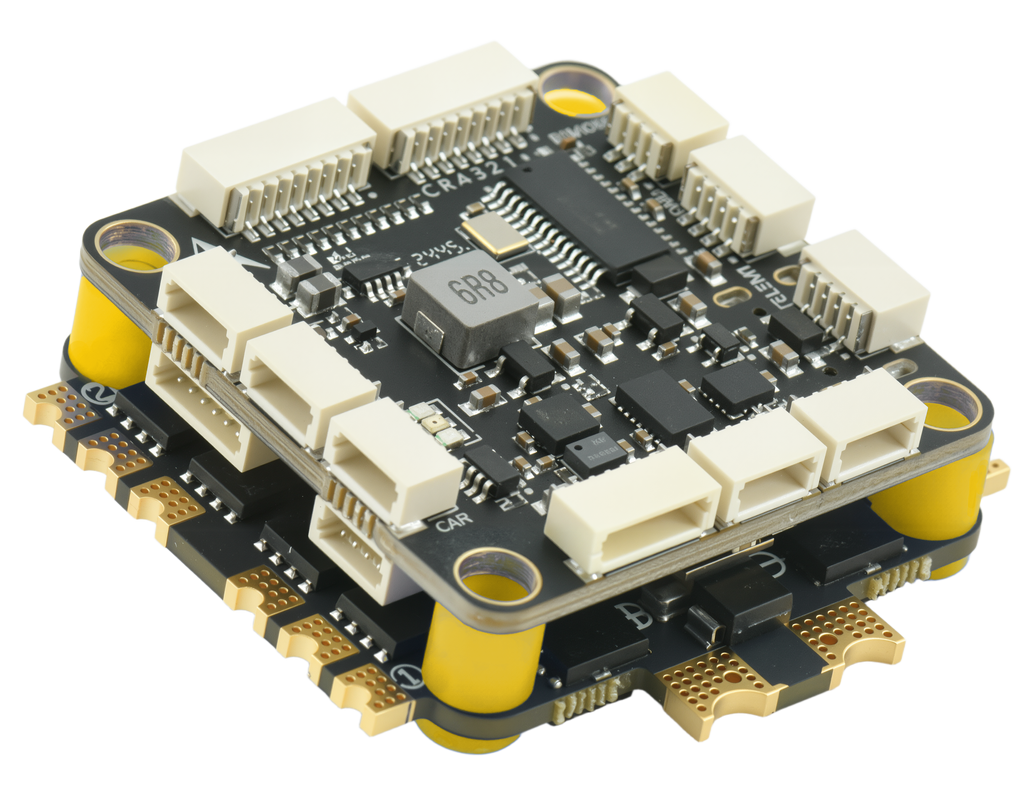

A pre-matched 30×30 stack: the CORVON H743 flight controller paired with a 50A 8-bit 4-in-1 ESC — wired, mounted, and verified together for FPV pilots, aerial mapping, and DIY builds.

- FC: STM32H743 @ 480 MHz, dual IMUs, DPS310 barometer + IST8310 compass
- 7 UART ports, 10 PWM outputs
- ESC: 50 A × 4 continuous, 55 A burst (30 s), 8-bit MCU
- PWM / DShot / OneShot motor protocols
- 2S–6S LiPo (6–28 V)

Key specs:
FC MCU: STM32H743, Cortex-M7 @ 480 MHz (2 MB flash)
Sensors: dual IMUs · DPS310 · IST8310
UART: 7 · PWM: 10
ESC: 50 A × 4 continuous · 55 A burst (30 s) · 8-bit
Protocols: PWM / DShot / OneShot

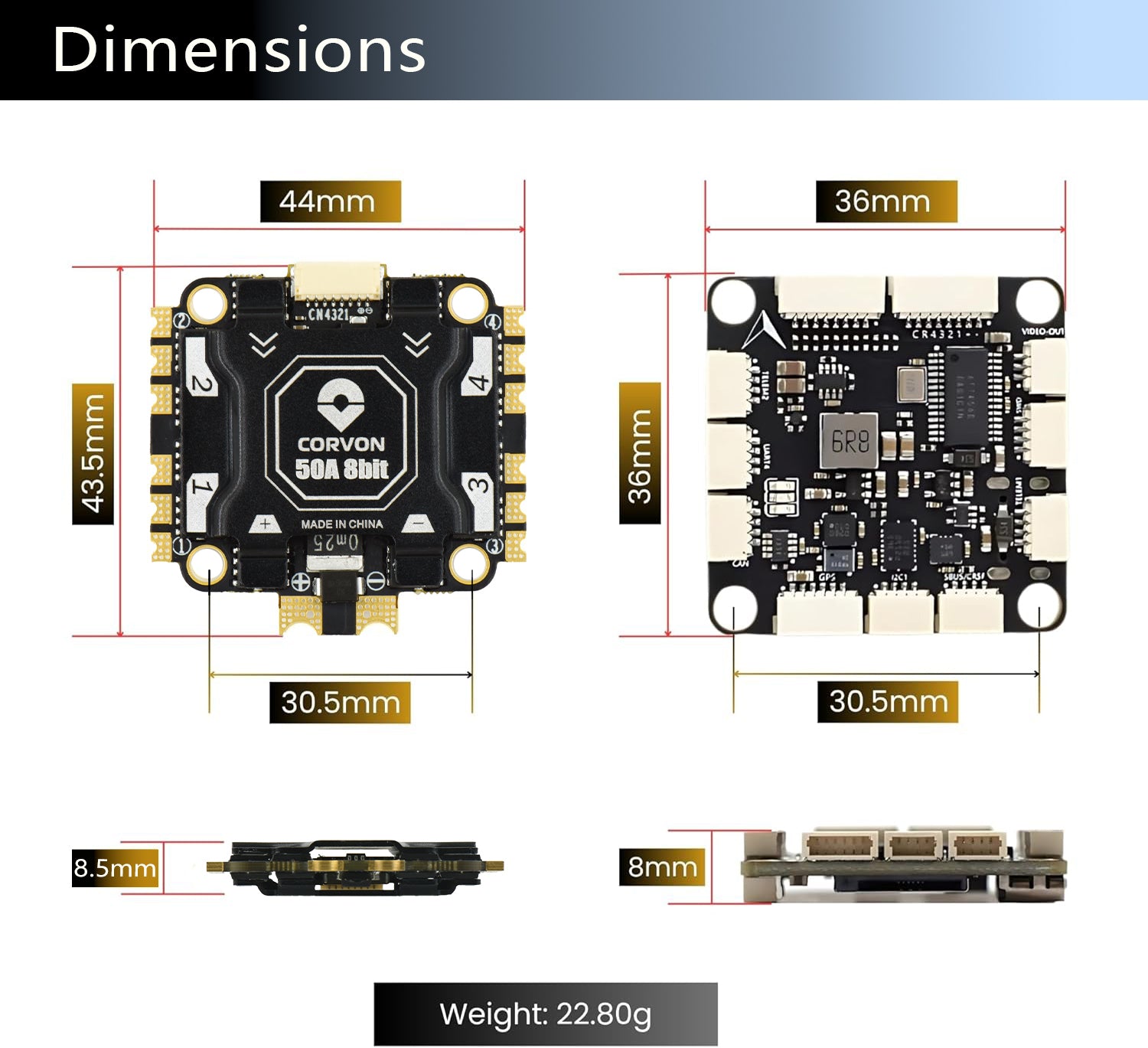

Power: 2S–6S LiPo · 30.5 × 30.5 mm mounting
Firmware: PX4 · ArduPilot · INAV · Betaflight

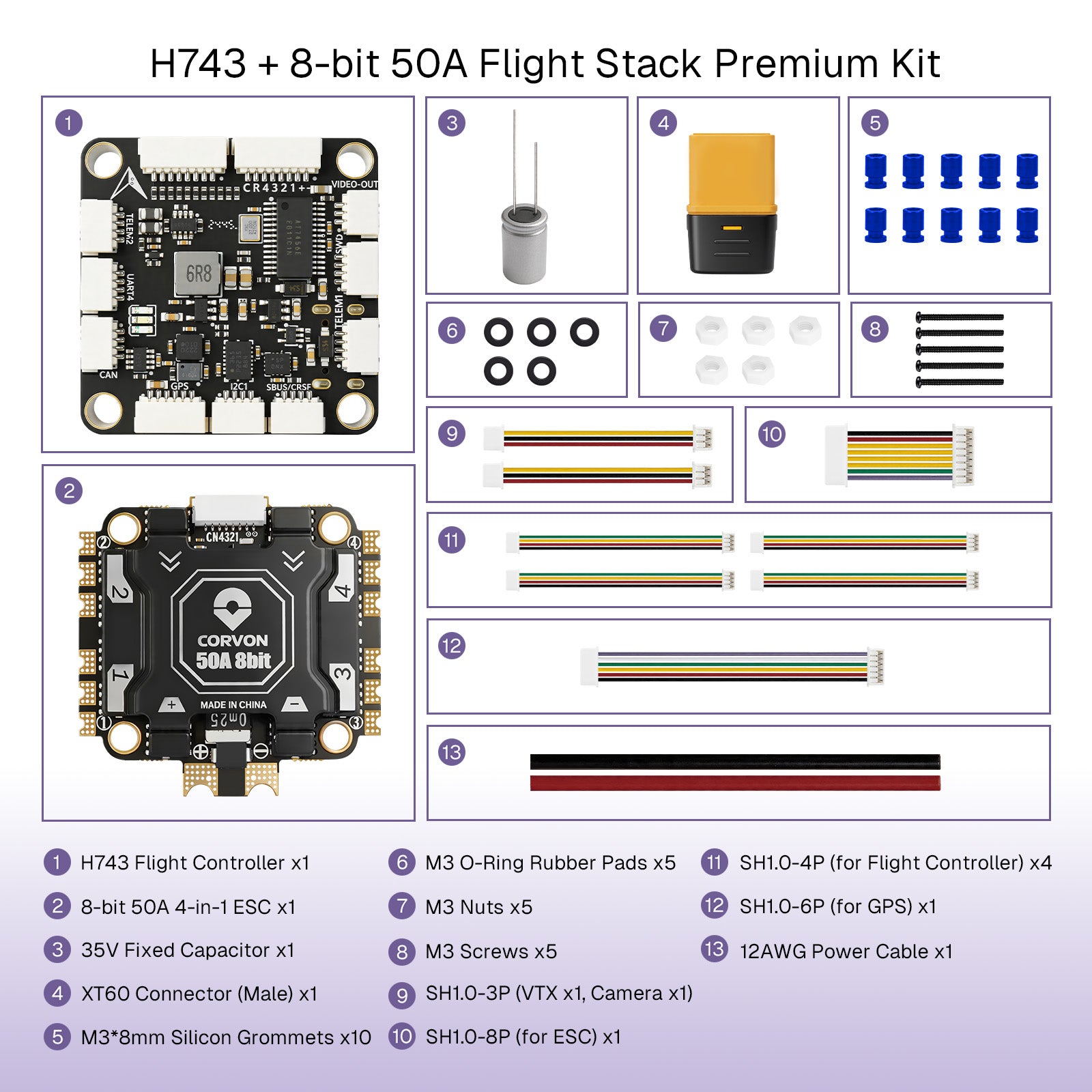

In the box:
1× H743v1 flight controller
1× 50A 4-in-1 ESC (8-bit)
1× XT60 pigtail (12 AWG, 155 mm)
1× 35 V 1000 µF solid capacitor
2× SH1.0-8P cable (48 mm)
1× SH1.0-6P cable (160 mm)
4× SH1.0-4P cable (155 mm)
1× SH1.0-3P cable (85 mm)
1× SH1.0-3P cable (105 mm)
5× M3 hex socket screw
5× M3 hex nut
10× M3 rubber standoff (blue)
5× rubber O-ring pad (black)

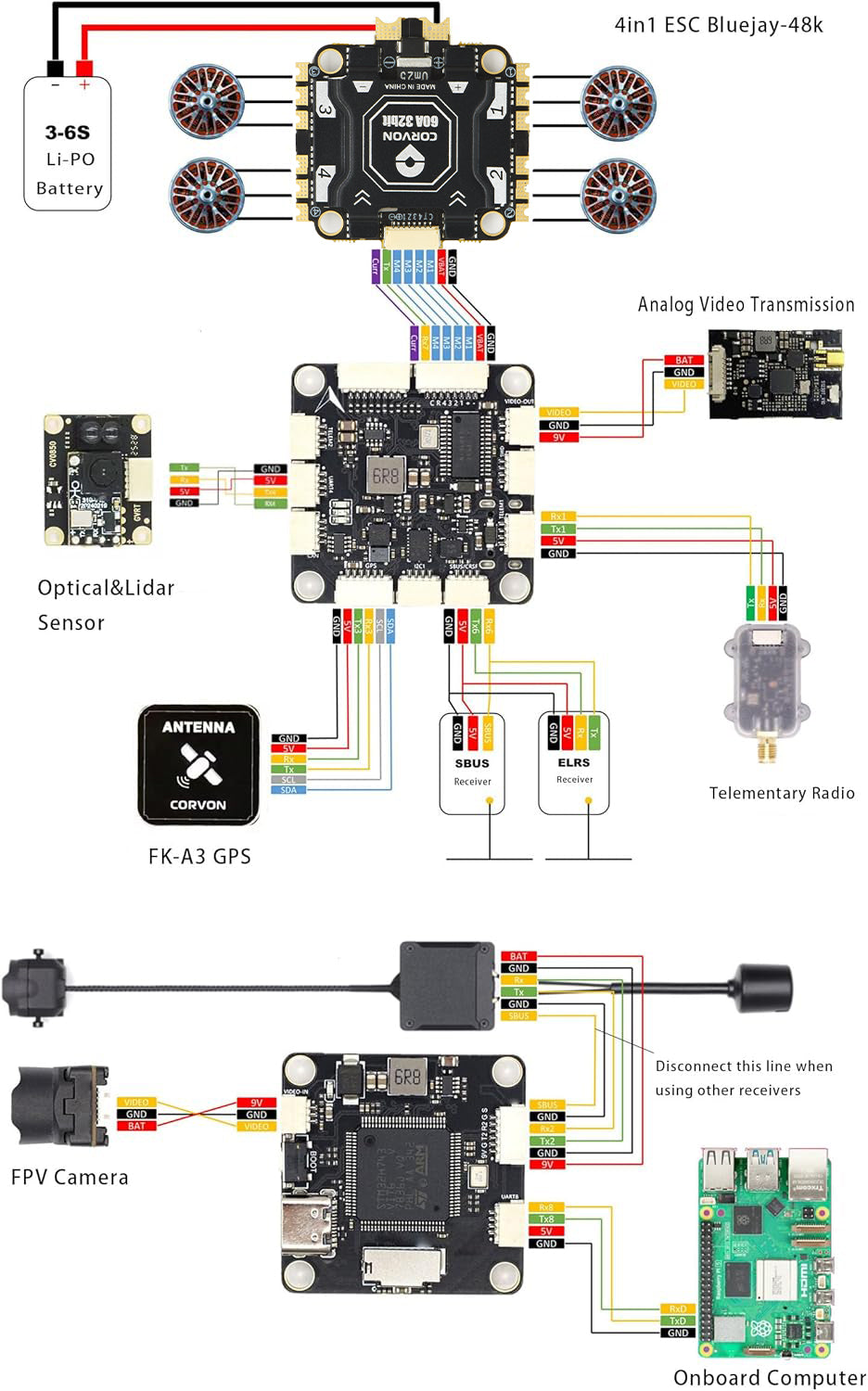

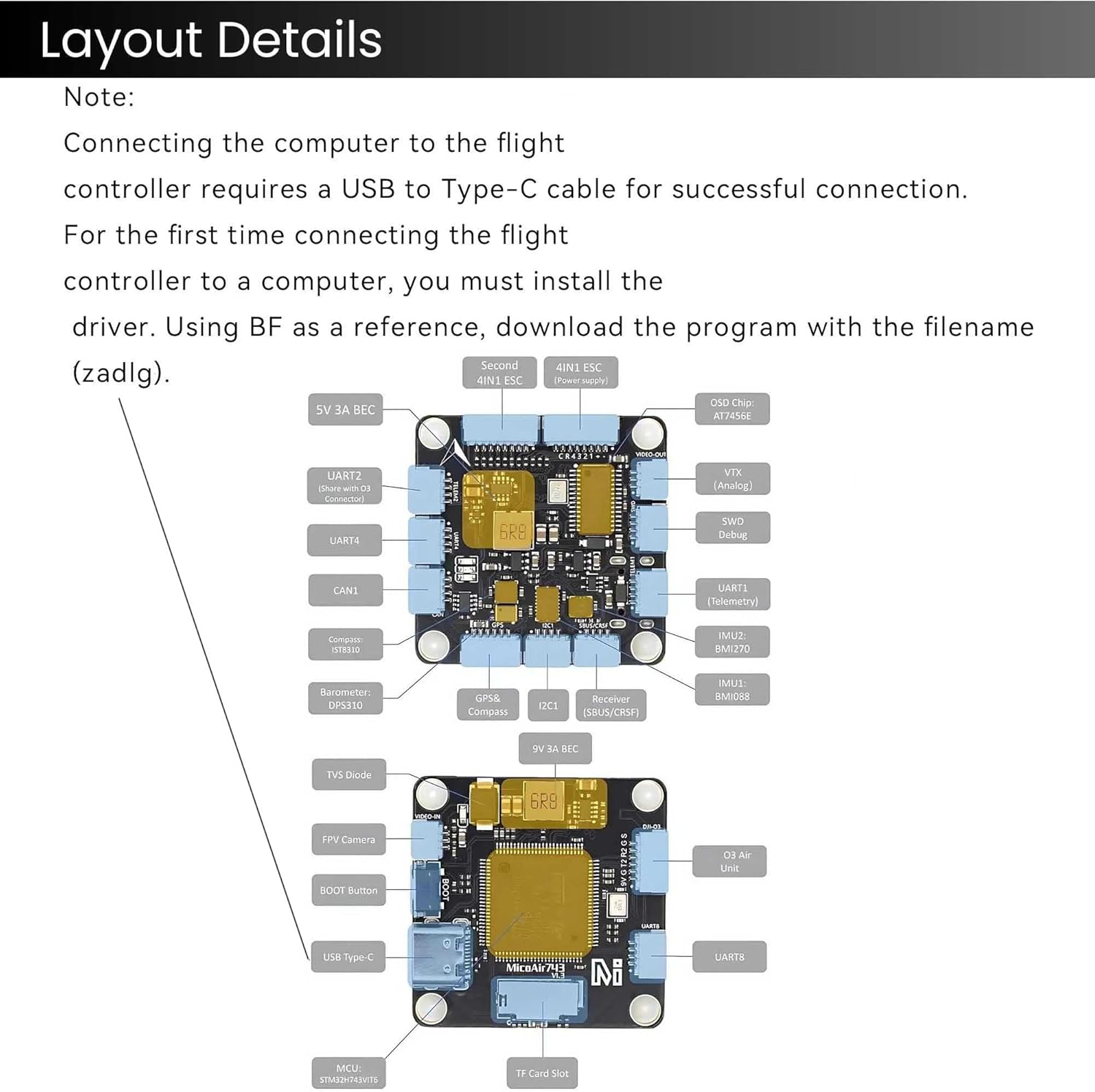

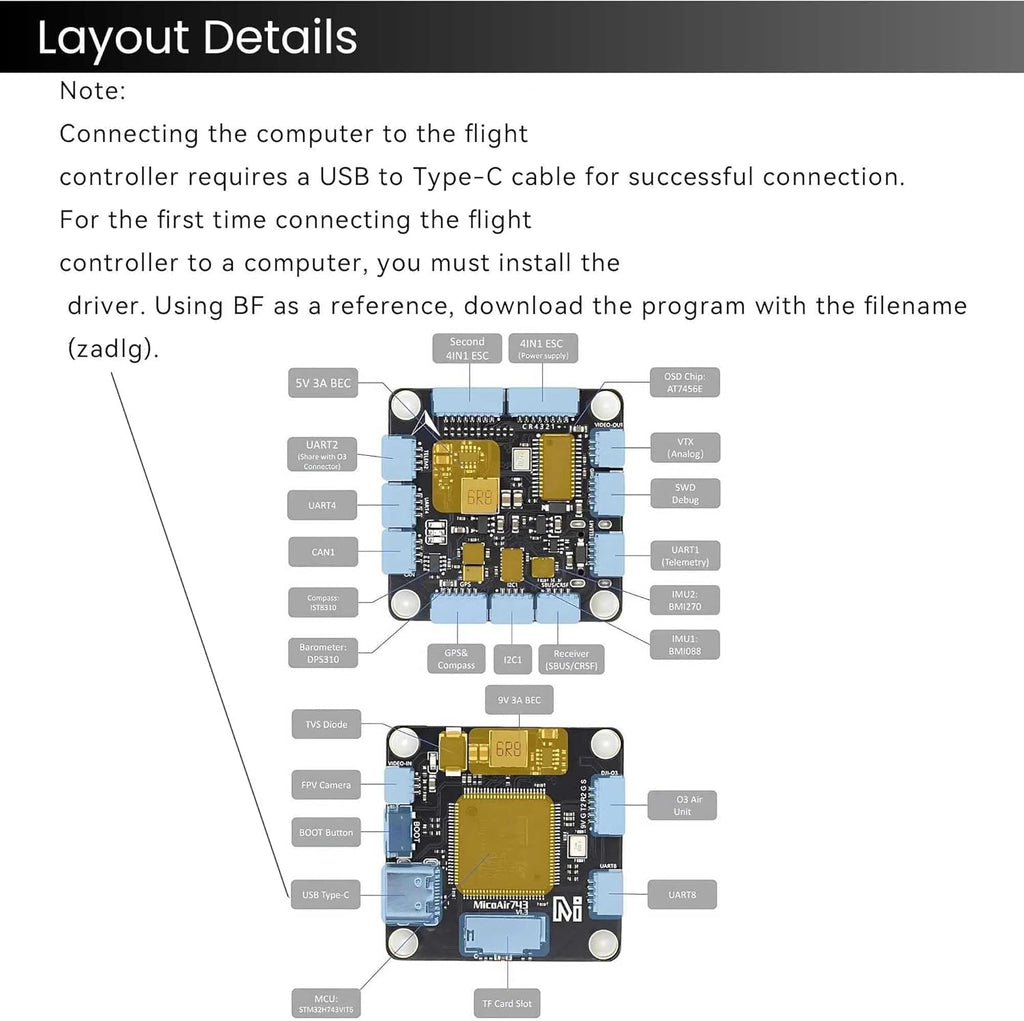

Full pinout, wiring, and electrical data: see the flight-controller and ESC spec sheets in our Docs.
