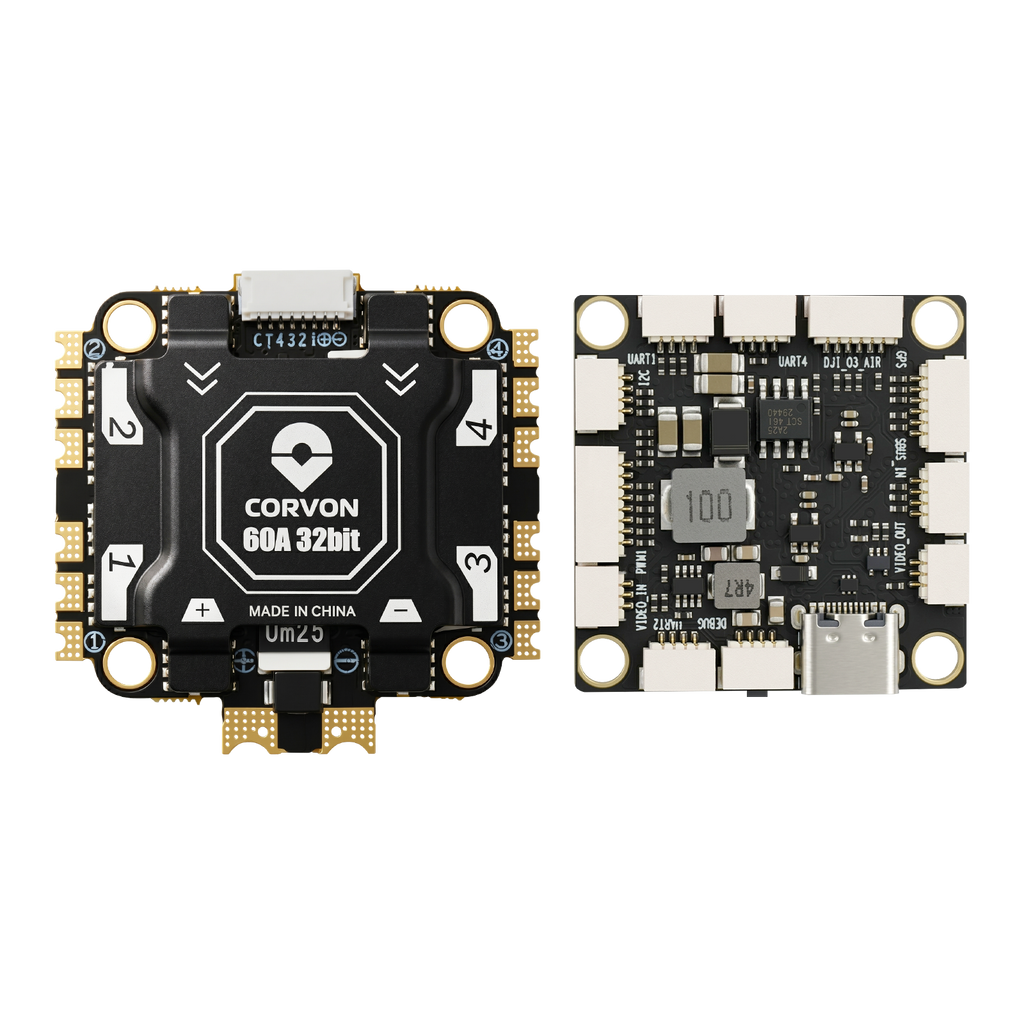

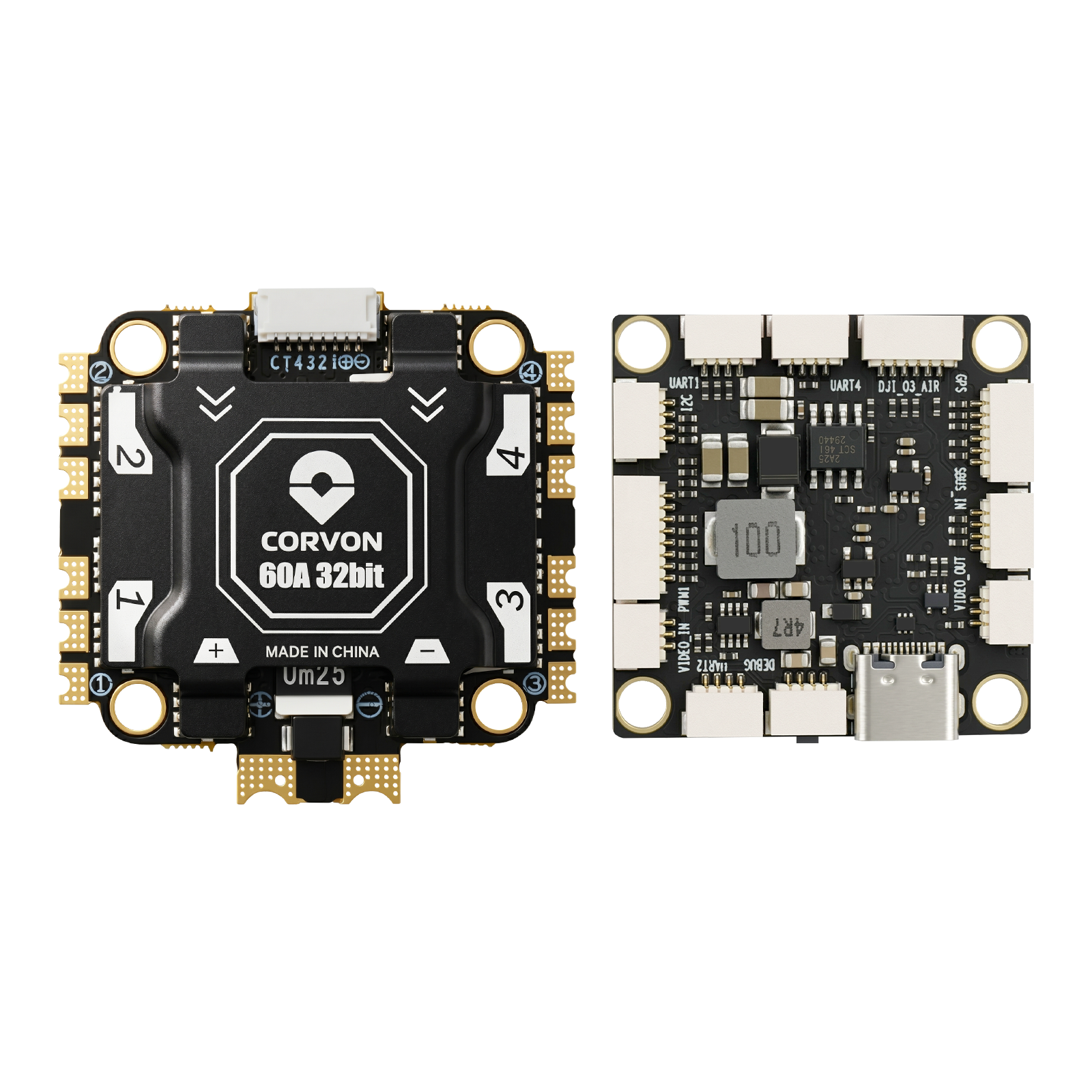

F405 Flight Controller with 60A 32 bit Stack

A pre-matched 30×30 stack: the CORVON F405 flight controller paired with a 60A 32-bit 4-in-1 ESC — wired, mounted, and verified together, with DJI O3 / O4 support and dual BEC rails.

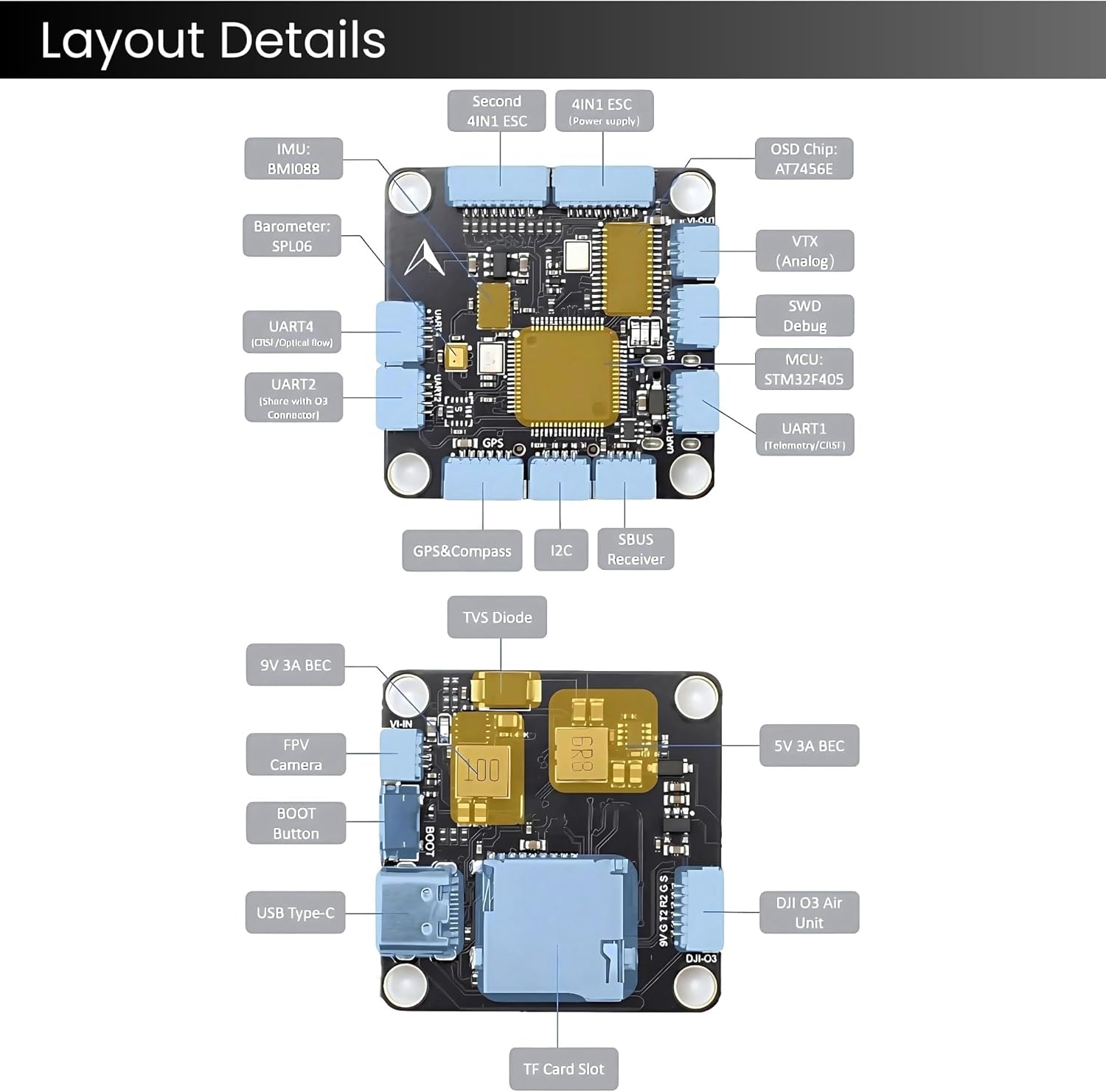

- FC: STM32F405 @ 168 MHz, SPL06 barometer
- 6 UART ports, 10 PWM outputs
- Dual BEC rails: 5V + 9V · DJI O3 / O4 ready
- ESC: 60 A × 4 continuous, 80 A burst (30 s), 32-bit MCU
- PWM / DShot / OneShot · 2S–6S LiPo (6–28 V)

Key specs:
FC MCU: STM32F405, Cortex-M4 @ 168 MHz
Barometer: SPL06
UART: 6 · PWM: 10
BEC: 5V + 9V dual rails
ESC: 60 A × 4 continuous · 80 A burst (30 s) · 32-bit
Protocols: PWM / DShot / OneShot

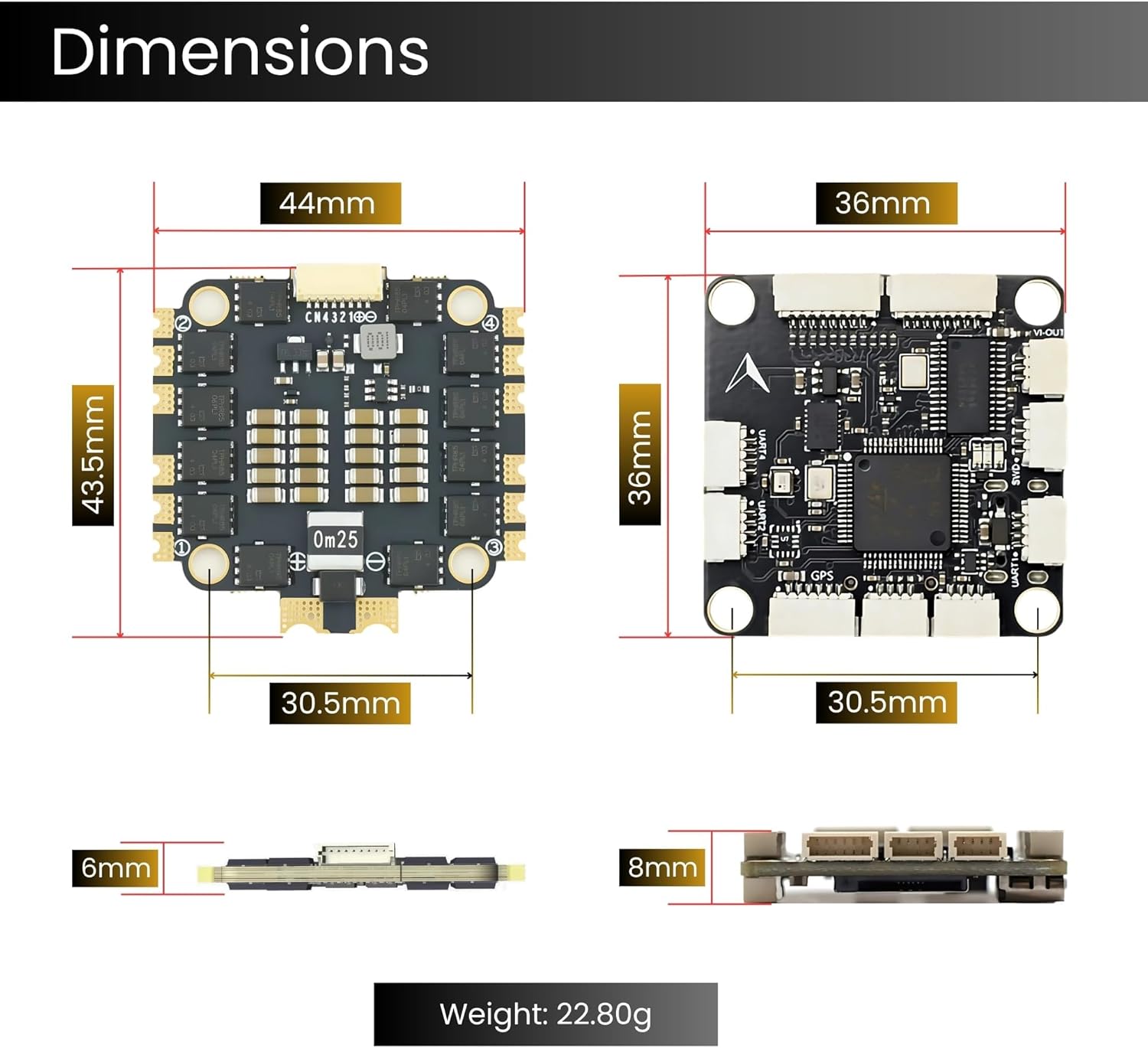

Power: 2S–6S LiPo · 30.5 × 30.5 mm mounting
Firmware: Betaflight

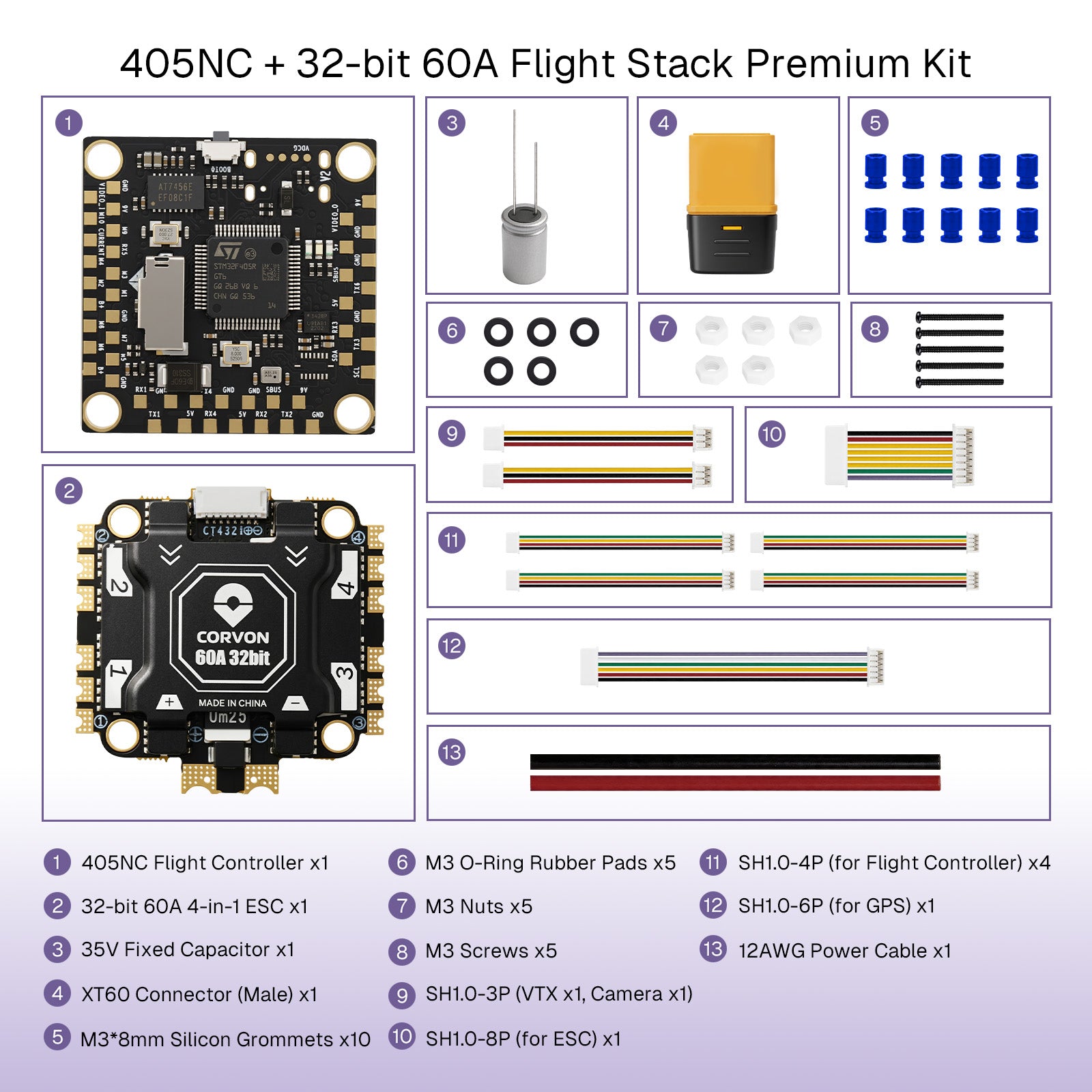

In the box:
1× F405-NC flight controller
1× 60A 4-in-1 ESC (32-bit)
1× XT60 pigtail (12 AWG, 155 mm)
1× 35 V 1000 µF solid capacitor
2× SH1.0-8P cable (48 mm)
1× SH1.0-6P cable (160 mm)
4× SH1.0-4P cable (155 mm)
1× SH1.0-3P cable (85 mm)
1× SH1.0-3P cable (105 mm)
5× M3 hex socket screw
5× M3 hex nut
10× M3 rubber standoff (blue)
5× rubber O-ring pad (black)

Full pinout, wiring, and electrical data: see the flight-controller and ESC spec sheets in our Docs.
